Concentrate drum emptying system

Efficiently extract every drop of fruit concentrate from your drums with precision and ease, ensuring optimal product recovery and minimal waste in your processing line.

Empties and Pumps Fruit Concentrate from Drums

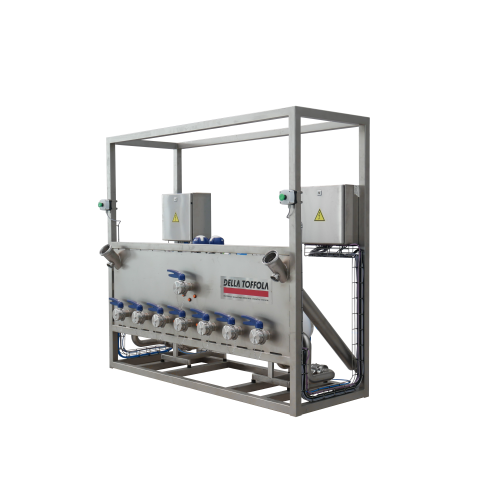

The Concentrate Drum Emptying System from Della Toffola is engineered to optimize the transfer of viscous fruit concentrates and liquid formulations from drums, accommodating both manual and automatic operations. This system excels in its ability to turn drums upside down for efficient emptying while integrating stainless steel pumping solutions that maintain the integrity of all fruit concentrates. It is particularly adept at processing orange juice concentrate, apple juice concentrate, grape juice concentrate, and other liquid nutritional supplements, offering versatility across the food, beverage, dairy, chemical, and pharmaceutical industries.

Capable of handling a range of drum sizes from 25 to 1,000 kg, the system includes optional ice crushing/chopping and defreezing features, enhancing its adaptability to different process needs. Once the concentrate is extracted, a precise rinsing function, monitored via flowmeter, ensures complete product recovery, minimizing waste and maximizing efficiency.

Constructed with corrosion-resistant materials, it maintains sanitary standards critical for food and pharmaceutical applications. Della Toffola’s system seamlessly integrates into existing production lines, whether in a manual or PLC-controlled automatic setup, and provides easy maintenance with accessible CIP (Clean-In-Place) systems. Configurations can be customized to meet specific production demands, backed by Della Toffola’s engineering support to ensure seamless implementation.

Benefits

  • Ensures complete product recovery, minimizing waste with precise flowmeter-controlled rinsing.
  • Enhances operational flexibility with optional ice crushing and defreezing features.
  • Reduces manual labor and increases efficiency through adaptable automatic or manual operation.
  • Maintains high sanitation standards with stainless steel construction for food and pharmaceutical compliance.
  • Facilitates seamless integration into existing lines, supported by customizable configurations and engineering support.

General


Applications
Beverages,Liquid formulations,Foodstuffs,Fruit concentrates,Juice
End products
Fruit puree concentrate,Grape juice concentrate,Vegetable puree concentrate,Mixed fruit beverage,Liquid nutritional supplements,Tomato paste,Orange juice concentrate,Apple juice concentrate,Concentrated beverage syrups,Fruit syrup
Steps before
Fruit Concentrate Preparation,Drum Loading,Temperature Control/Defreeze
Steps after
Rinsing,Product Recovery,Packaging
Input ingredients
fruit concentrate,drums,containers of 25 to 1,000 kg
Output ingredients
emptied drums,recovered fruit concentrate,rinsed drums
Market info
Della Toffola is renowned for its expertise in designing and manufacturing industrial equipment for the wine-making, beverage, and food processing industries, providing customized, high-quality engineered-to-order solutions with a strong reputation for innovation and reliability.

Technical Specifications


Container Weight
25 to 1,000 kg
Pump Type
Diaphragm / Displacement
Automation Level
Manual / Automatic
Pipe Material
Stainless Steel
Flow Control
Flowmeter-controlled
Defreeze Option
Available
Ice Crusher/Chopper
Available
Rinsing Accuracy
Precise with Flowmeter

Operating Characteristics


Working mechanism
Manual / Automatic
Integrated steps
Defrosting / Crushing
CIP principles
Flowmeter controlled rinsing
Batch vs. continuous operation
Batch for various capacities
Pumping system
Diaphragm / Displacement pumps
Drum handling
Upside down rotation
Ice crusher/chopper option
Available

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless Steel
Cleanability
Stainless Steel
Biological compatibility
Food-grade materials
Abrasion resistance
Stainless Steel

Product type Characteristics


Container size
25 to 1,000 kg

Physical Characteristics


Discharge method
Drum turning/upside down
Machine footprint
Compact
Capacity
25 to 1000 kg containers
Material
Stainless steel pipes
Feed method
Vertical insertion into drums
Drum compatibility
Vertically standing
Additional option
Ice crusher/chopper and defreeze

Custom Options


Drum size range
25–1,000 kg
Ice crusher/chopper option
Available
Defreeze option
Available
Pump type
Diaphragm / Displacement
