Compact filtration device for laboratory and field use
Achieve precise filtration with minimal sample sizes for rapid analysis or material recovery, improving process design and compliance testing in diverse production and research settings.

Analyzes Filtration Properties of Suspensions

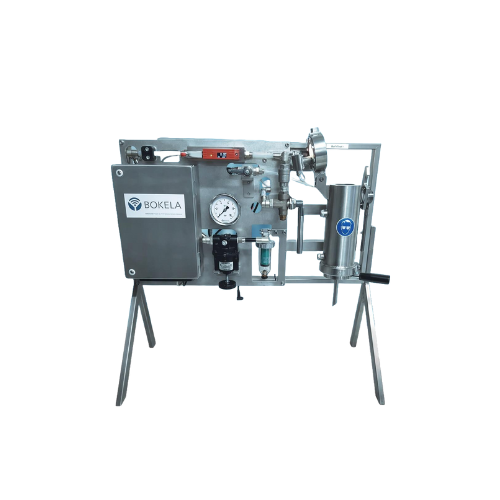

The BoFilTest by BOKELA is a versatile, portable filtration device designed for both laboratory and field use. Specializing in the quick and reproducible analysis of filtration data, it effectively determines filtration properties of suspensions, making it indispensable in industries such as chemical, pharmaceutical, and mineral processing. With a compact filtration area of 20 cm² and the ability to handle pressures up to 11 bar, it caters to small sample testing, crucial for process design and regulatory compliance.
Its stainless steel construction ensures durability and resistance to corrosion, while the quick-release lids facilitate easy sample handling and reduce downtime. The device operates without the need for a power supply in its basic version, enhancing its portability and ease of use in various settings. Numerous filtration parameters—including cake height, pressure differentials, and media resistance—are easily assessed, providing valuable insights for process optimization.
BOKELA offers additional features such as electronic data recording and software for comprehensive analysis, along with options for tempering and diverse filter media compatibility. Compliant with VDI guideline 2762, the BoFilTest is an essential tool for achieving precise solid-liquid separation, aiding in the production of alumina powder, iron concentrates, pharmaceuticals, and more.
Benefits
- Enhances process efficiency through quick, reproducible filtration analysis.
- Minimizes sample and energy requirements with a compact, portable design.
- Provides versatile use across laboratory and field settings without power dependency.
- Ensures durability and longevity with corrosion-resistant stainless steel construction.
- Facilitates precise process optimization and compliance with regulatory standards.
- Applications
- Pharmaceutical precursors,Chemical and pharmaceutical sector,Fillers and dyes,Pigments,Plastic intermediates,Ores and minerals
- End products
- Iron concentrate,Active pharmaceutical ingredients,Alumina powder,Titanium dioxide,Potash fertilizer,Silica sand,Purified pharmaceutical intermediates,Filtered catalyst residue,Coal dust,Zinc ore concentrate,Organic pigments,Calcium carbonate fillers
- Steps before
- Suspension Preparation,Mixing,Homogenization
- Steps after
- Filter Cake Washing,Analysis of Filtrate,Dehumidification,Drying,Packing
- Input ingredients
- suspensions,sample suspension
- Output ingredients
- pure solid,liquid,filter cake,analysis samples,filtrate
- Market info
- BOKELA is known for its expertise in engineering and manufacturing filtration technology and equipment, particularly for solid-liquid separation processes in various industries, offering innovative, high-performance solutions with a strong reputation for reliability and efficiency.
- Filtration Area
- 20 cm²
- Volume
- 380 cm³
- Filtration Pressure
- 11 bar
- Operation temperature
- max. 120 °C
- Height of filter cake
- 50 mm (on demand up to 100 mm)
- Dimensions (W × L × H)
- 815 × 680 × 330 mm
- Material
- SS316 stainless steel for wetted parts,SS304 for non-wetted parts
- Tempering
- Heated double jacket
- Lid
- Quick-release lid with sight glass for quick test start (one-hand operation)
- Bottombay
- Bayonet lock (one-hand operation)
- Compressed air connection
- Quick coupling
- Filtration method
- Vacuum / Pressure
- Filtration parameters
- Reproducible
- Sample handling
- Portable and easily operable
- Pressure capacity
- Up to 11 bar
- Automation level
- Manual with optional electronic data recording
- Adaptability
- Various auxiliaries for customization
- Filter medium change
- Fast and easy
- Heating/Cooling capability
- Double-walled pressure cell with tempering
- Power requirements
- Can operate without power supply
- Corrosive resistance (e.g. acids)
- Yes
- Cleanability
- Easy to clean
- Density/particle size
- 50–1000 µm
- Biological compatibility
- 0
- Abrasion resistance
- 0
- VDI guideline 2762
- Mechanical solid-liquid separation by cake filtration – Determination of filter cake resistance
- Machine footprint (Dimensions)
- 815 × 680 × 330 mm
- Filtration Area
- 20 cm²
- Volume
- 380 cm³
- Height of filter cake
- 50 mm (on demand up to 100 mm)
- Control panel type
- Quick-release lid with sight glass
- Material for wetted parts
- SS316 stainless steel
- Material for non-wetted parts
- SS304 stainless steel
- Compressed air connection
- Quick coupling
- Tempering
- Heated double jacket
- Bottomb
- Bayonet lock (one-hand operation)
- Filter media compatibility
- All common filter media,including membranes
- Filtration area adjustment
- Small filtration area of 20 cm²
- Filtration pressure
- Up to 11 bar (a)
- Portability
- Portable for laboratory and field use
- Power requirement
- Operates without power supply
- Quick-release feature
- Quick-release lid with hinge and sight glass
- Temperature control
- Heated double jacket for tempering
- Modular add-ons
- Various add-ons available
- Auxiliary integration
- Compatible with electronic measurement devices and software
- Construction material
- SS316 stainless steel for wetted parts,SS304 for non-wetted parts
