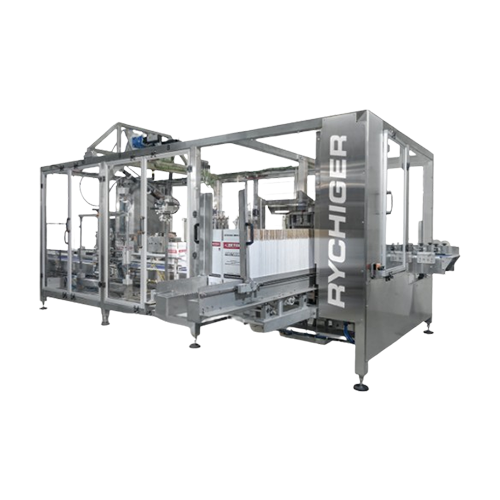

Compact case packer for secondary packaging

Optimize your secondary packaging process with a case packer that operates cleanly and efficiently on a compact footprint, accommodating diverse product sizes without tool changeovers.

Packs and Seals Cases Efficiently and Cleanly

The NCP-25 from Rychiger is a compact case packer, ideal for industries such as food, beverage, pharmaceuticals, and cosmetics. Featuring the innovative “Pin & Dome” vacuum-free handling mechanism, it ensures a cleaner and lower-dust packaging process. Its efficient case packing, product grouping, and sealing capabilities operate on a compact footprint of just under 10 square meters, handling up to 1,500 cases per hour. The NCP-25 supports multiple product and case types, with tool-free size switching for seamless integration into existing production lines. Its open design allows for straightforward monitoring and maintenance, while additional units like labelers can be easily added. The system’s modularity and hygiene-focused operation make it a prime choice for regulated environments, satisfying industry standards with ease.

Benefits

  • Enhances operational cleanliness by eliminating dust through vacuum-free handling.
  • Optimizes limited floor space usage with a compact design.
  • Increases productivity with the ability to handle up to 1,500 cases per hour.
  • Reduces changeover time with a tool-free size adjustment mechanism.
  • Supports diverse production requirements with customizable case and product patterns.

General


Applications
Food,Supplements,Snacks,Pet food,Multi beverage,Beverage,Home supplies,Coffee,Confectionary,Cosmetics,Janitorial supplies,Industrial goods,Baby food,Tea,Dairy products,Pharmaceuticals
End products
Multi-pack beverage cans,Soft drink cartons,Instant tea sachets,Dog food pouches,Cornflakes,Laundry detergent pods,Nutritional supplement bottles,Chocolate bar boxes,Protein powder tubs,Yogurt cups,Household cleaning wipes,Cardboard coffee pods,Shampoo bottles,Disinfectant spray cans,Baby formula cans
Steps before
Product Sorting,Grouping,Inline Magazine Feeding
Steps after
Case Sealing,Quality Control,Labeling,Barcode Scanning
Input ingredients
food,snacks,household articles,industrial goods,pharmaceuticals,cosmetics
Output ingredients
packaged cases,sealed boxes
Market info
Rychiger is known for engineering high-precision filling and sealing machines for the food and medical industries, offering customized, innovative automation solutions, with a strong reputation for reliability and exceptional engineering expertise in the packaging sector.

Technical Specifications


Output/min
Up to 25
Output/h
Up to 1'500
Machine Size (LxWxH)
2.92 x 5.38 x 2.56 m
Weight
1'800 kg
Connected load
230 V/30A 60 Hz
Compressed air
90 PSI @ 10CFM
Package Length Range
152 - 610 mm
Package Width Range
127 - 406 mm
Package Height Range
100 - 406 mm
Magazine Capacity
150 cases
Small footprint
2m x 5m
Case handling technology
Pin,Dome
Customization Options
Allows freedom in case type,packing pattern,and sealing solution

Operating Characteristics


Working mechanism
“Pin,Dome” vacuum-free
Automation level
Full automation with options for manual size switching
Changeover time
Tool-free,time-saving switching
Batch vs. continuous operation
Continuous
Cleaning method
Low-dust operation,easy-to-clean
Energy efficiency
Low pressure operation
Compact footprint
Less than 10 square meters

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container size
152 - 610 mm (length),127 - 406 mm (width),100 - 406 mm (height)
Container type
Various case types
Packaging type
Secondary packaging

Physical Characteristics


Machine footprint
Less than 10 square meters
Machine dimensions (LxWxH)
2.92 x 5.38 x 2.56 m
Weight
1,800 kg
Design Features
Open from all sides
Discharge method
Pin,Dome technology

Custom Options


Case type
Customizable
Product packing pattern
Customizable
Sealing solution
Tape or glue
Multi-lane infeed
Single or multiple lanes
Inline magazine
Optional
