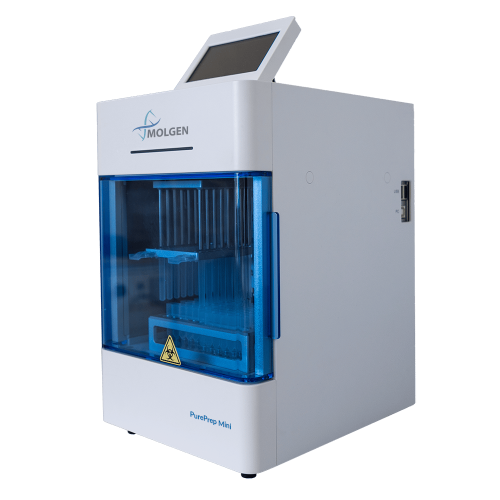

Compact automated nucleic acid extraction system

Quickly automate nucleic acid purification to reduce hands-on time and minimize cross-contamination, enabling high-quality DNA and RNA extraction in compact laboratory settings.

Automates Nucleic Acid Extraction and Purification

The PurePrep Mini from LabTIE is a compact bench-top system designed for DNA and RNA purification in small-scale research environments. Utilizing magnetic bead separation technology, it automates the multi-stage process of binding, mixing, washing, and elution to ensure high-purity nucleic acid extraction without cross-contamination. The system can handle up to 16 samples per run with a working volume of 50 to 1,000 µL, making it ideal for applications in animal diagnostics, biotechnology, and molecular biology. Its small footprint and compatibility with PurePrep Extraction Kits and other bead-based protocols offer flexibility and efficiency in research laboratories. The integrated UV lamp provides sterilization to prevent sample contamination, and the touchscreen interface, along with a mobile app for program editing, ensures easy operation and customization.

Benefits

  • Minimizes manual handling, increasing lab productivity and reducing operator fatigue.
  • Ensures high-purity sample extraction, critical for reliable molecular biology applications.
  • Conserves laboratory space due to its compact design.
  • Prevents cross-contamination with integrated UV sterilization.
  • Offers flexible processing with compatibility across various bead-based protocols.

General


Applications
Biotech industry,Molecular biology applications,Animal diagnostics,Pathogen detection,Nucleic acid purification,Genetic research,Research laboratories,Dna and rna extraction,Agbio solutions
End products
Plant genomic dna,Eukaryotic cell dna samples,Rna sequencing samples,Viral rna purification,Pathogen detection assays,Animal genetic profiles,Research-grade nucleic acid libraries,Diagnostic dna samples,Bacterial dna extraction,Genetic testing kits
Steps before
Sample Collection,Sample Preparation,Reagent Addition
Steps after
Sample Analysis,Data Recording,Storage of Extracted Nucleic Acids
Input ingredients
DNA samples,RNA samples,magnetic beads,tube strips,PurePrep Extraction Kits
Output ingredients
purified nucleic acids,DNA,RNA
Market info
Molgen is known for manufacturing customized engineered-to-order (ETO) equipment, specializing in tailored solutions for complex industrial needs. Their expertise lies in innovative engineering, delivering high-quality, precise, and reliable machinery that meets specific client requirements.

Technical Specifications


Automation
Automated Nucleic Acid Extraction
Capacity
1-16 samples per run
Cycle Time
15–40 minutes
Dimensions
200 mm (W) x 260 mm (D) x 300 mm (H)
Weight
7 kg
Working Volume
50 – 1,000 µL
Interface
Touchscreen Interface
Sterilization
UV Lamp
Protocol Compatibility
Open System (Bead-Based Protocols)

Operating Characteristics


Working mechanism
Magnetic bead separation
Automation level
Automated
Batch vs. continuous operation
Batch
Changeover time
Low

Material Compatibility


Biological compatibility
Nucleic acids
Corrosive resistance (e.g. acids)
High,with robust materials
Density/particle size
Not applicable (liquid handling)
Cleanability
Highly cleanable with UV lamp sterilization
Abrasion resistance
Minimal wear due to automated process

Physical Characteristics


Machine footprint
20 x 26 cm
Weight
7 kg
Dimensions (Width x Depth x Height)
200 mm x 260 mm x 300 mm

Custom Options


Control panel type
Touchscreen interface
Footprint
Compact,20 x 26 cm
Program customization
Editable via mobile app
