Commercial scale spray dryer for pharmaceutical materials

Optimize the drying of pharmaceutical and industrial materials with precision particle engineering, ensuring consistent quality and high yield across production lines.

Dries and Forms Precise Particles

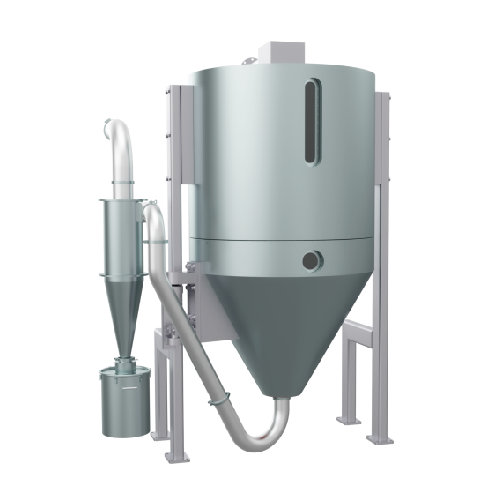

The GSD GENESIS™ Spray Dryer from Freund delivers precision particle engineering for pharmaceutical and industrial needs. This equipment utilizes an innovative atomization process to convert liquids into uniform, dry powders swiftly and efficiently. It’s ideal for producing active pharmaceutical ingredients, excipients, and specialty chemicals. The modular design includes various nozzle options, enabling you to tailor the drying process to your specific product requirements. With an evaporation capacity ranging from 6 kg/hr to 50 kg/hr, it supports continuous, high-speed operations. The GENESIS™ boasts a touch screen control system for straightforward integration and automation within existing lines. EcoClean™ technology reduces water and chemical use, minimizing environmental impact and operational costs. Available in materials meeting CE, ATEX, UL, NFPA, and CSA standards, this system is engineered for safety and compliance in Class 1, Division 2 environments.

Benefits

  • Enhances productivity with customizable nozzles for precise particle formation.
  • Lowers operational costs through EcoClean™ technology, reducing water and chemical usage.
  • Ensures safety and compliance with certifications including CE, ATEX, and UL standards.
  • Facilitates seamless integration with its intuitive touch screen control system.
  • Accommodates diverse industrial needs with scalable capacity, from 6 kg/hr to 50 kg/hr.

General


Applications
Pharmaceutical materials,Industrial substances,Flavors,Excipients
End products
Detergent powders,Encapsulated flavors,Active pharmaceutical ingredients,Specialty chemicals,Synthetic sweeteners,Vanilla flavoring,Pharmaceutical excipients
Steps before
Granulation,Emulsification,Grinding,Wet Granulation,Particle Engineering
Steps after
Packing,Coating,Tablet Pressing,Particle Recovery
Input ingredients
pharmaceutical materials,excipients,flavors,industrial substances,drying gas
Output ingredients
spray dried particles,powder product,uniform atomized droplets
Market info
Freund is known for its expertise in granulation and coating technology, supplying high-quality industrial equipment for pharmaceutical, chemical, and food industries. Renowned for innovation and reliability, Freund consistently delivers engineered-to-order solutions tailored to client needs.

Technical Specifications


Evaporation Capacity
6 kg/hr,15 kg/hr,25 kg/hr,50 kg/hr
Chamber Diameter
800mm,1200mm,1600mm,2200mm
Drying Gas Flow Rate
180 kg/hr,400 kg/hr,800 kg/hr,1250 kg/hr
Nozzle Type
2-Fluid (standard),Pressure (Optional),Rotary Atomizer (Optional)
Design Standards
CE,ATEX,UL,NFPA,CSA
Solvent Rating
Class 1,Division 2 / ATEX Zone 2
Automation
Color Touch Screen Control System
Energy Efficiency
EcoClean™ Technology
Drying Method
Spray Drying
Fines Filtration
Reverse Pulse Cleaning

Operating Characteristics


Particle engineering method
Unique processing technique
Spray drying cycle
Open cycle
Gas flow mixing
Modular gas disperser
Solvent system availability
Available on request
Nozzle type options
2-Fluid,Pressure,Rotary Atomizer
Cleaning method
EcoClean™ Technology
Automation level
COMPU™ Control System
Operation mode
Pneumatic Hammers
Continuous operation
Fines Filtration with Reverse Pulse Cleaning

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Particle Engineering
Customized attributes
Spray Drying Efficiency
High efficiency for pharmaceutical,excipients,and flavors
Open Cycle Capability
Commercial scale
Nozzle Type
2-Fluid,Pressure,Rotary Atomizer
Solvent Usage
Available on request
Gas Disperser
Modular with exchangeable components
EcoClean™ Technology
Optional,environmentally-friendly
Drying Gas Flow Rate
180–1250 kg/hr depending on model
Evaporation Capacity
6–50 kg/hr based on model
Solvent Rating
Class 1,Division 2 / ATEX Zone 2

Physical Characteristics


Chamber Diameter
800mm,1200mm,1600mm,2200mm
Nozzle Type
2-Fluid (standard),Pressure (Optional),Rotary Atomizer (Optional)
Drying Chamber Features
Includes View Windows and Lighting
Gas Disperser
Modular with Exchangeable Components
Cyclone Configurations
Exchangeable Sections and Inserts
Spray Devices Range
2-Fluid Nozzle,Pressure Nozzle,Rotary Atomizer
Footprint
Compact,Designed for Commercial Scale
Air Handling System
With Circulation Blower and Electric Heater
Control System
Color Touch Screen,COMPU™ Optional

Custom Options


Nozzle Type
2-Fluid,Pressure (Optional),Rotary Atomizer (Optional)
View Windows and Lighting
Included in Drying Chamber
EcoClean™ Technology
Optional
Gas Disperser
Modular with Exchangeable Components
Cyclone Configurations
Exchangeable Sections and Inserts
Air Handling System
Includes Circulation Blower and Electric Heater
Fines Filtration
Reverse Pulse Cleaning for Continuous Operation
Drying Chamber with Pneumatic Hammers
Provided on Drying Chamber Cone
Color Touch Screen Control System
Included
