Combined case erector with bag inserter for packaging lines

Streamline your packaging process by integrating case erecting and bag inserting into one compact solution, reducing material costs and conserving floor space while ensuring precise bag placement with patented film technology.

Combines Case Erecting and Bag Inserting

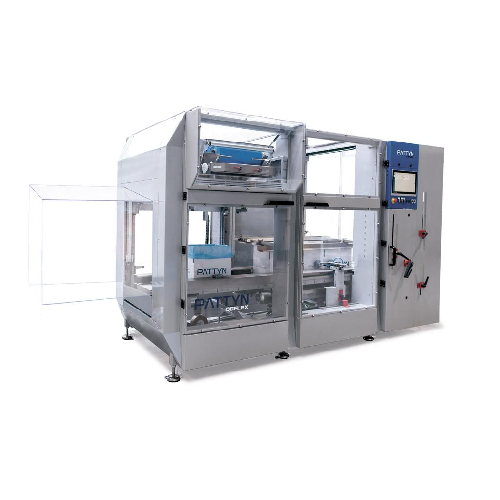

The CEFLEX-41 from Pattyn Packaging Lines expertly merges case erecting with bag inserting in a singular efficient unit. Utilizing patented smart film opening technology, it ensures precise bag insertion and minimized film consumption, thereby reducing operational costs. Ideal for diverse industries—from food ingredients to automotive parts—the machine supports continuous, fully automatic operation with a compact footprint. Capable of processing up to 12 cases per minute, it efficiently handles various case sizes with quick format changes. Its robust design accommodates demanding conditions, like handling poor corrugated cartons, while integration is seamless with downstream equipment such as weigh fillers and palletizers. This machine offers material options to enhance durability and complies with industry standards, ensuring ease in maintenance and long-term reliability.

Benefits

  • Maximizes operational efficiency by combining case erecting and bag inserting in one machine.
  • Minimizes consumable costs with precise bag insertion and reduced film usage.
  • Enhances production flexibility with quick format changes accommodating various case sizes.
  • Saves floor space with its compact design, crucial for optimizing factory layouts.
  • Ensures uninterrupted production with optional fully automatic film roll exchange.

General


Applications
Packaging,Cardboard boxes,Corrugated cartons,Bulk packaging
End products
Hardware components,Non-perishable food items,Pharmaceuticals,Kitchenware,Office supplies,Food ingredients,Consumer electronics,Textiles,Powdered chemicals,Sanitary products,Automotive parts
Steps before
Cardboard box manufacturing,Corrugated carton preparation,Film rolling
Steps after
Bag sealing,Case closing,Palletizing
Input ingredients
corrugated cartons,12kg film rolls,60kg film rolls,pre-made bags,made-to-measure bags
Output ingredients
packaged boxes with bags inserted,sealed boxes
Market info
Pattyn is known for its expertise in designing and manufacturing industrial packaging solutions, specializing in ETO equipment for bulk packaging automation, with a strong reputation for innovation, quality, and customer-focused service in the industry.

Technical Specifications


Automation
Fully automatic
Film roll exchange
12kg rolls
Changeover adjustments
6 adjustments
Bag type Compatibility
Made-to-measure/pre-made from reel
Case erector speed
Up to 12 c/min
Machine control
15” HMI
Patented technology
Smart film opening technology

Operating Characteristics


Automation level
Fully automatic
Changeover time
Quick format change,6 adjustments
Batch vs. continuous operation
Continuous operation
Cleaning method
Manual (cleaning not specified)
Energy efficiency
Not specified

Physical Characteristics


Machine footprint
Compact
Control panel type
15” HMI

Custom Options


Control panel type
15” HMI
Integration possibilities
Pattyn weigh filler / Bag closer / Case closer / Palletizer
Footprint
Compact
Bag insertion technology
Patented smart film opening
