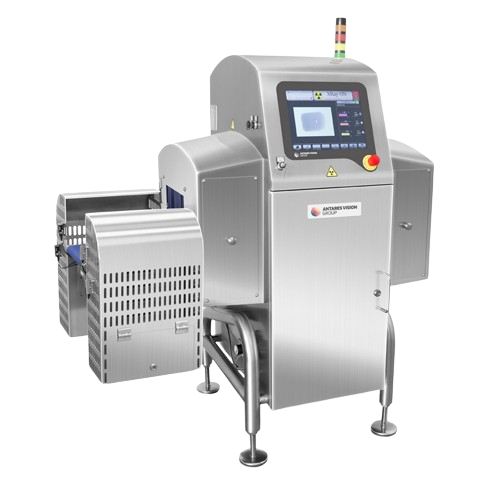

Combi x-ray inspection and checkweighing for small products

Optimize your production line’s quality control with a compact, synchronized solution for precise weighing and contaminant detection of small, solid products using top-down X-ray inspection technology.

Integrates Weighing and X-Ray Inspection

The Combi X-Ray Checkweigher from Antares Vision Group is a compact, integrated solution designed for precise weighing and effective inspection of small horizontal products in industries such as cosmetics, food, and packaging. Combining checkweighing and X-ray inspection into a single monoblock, it supports continuous high-speed operations with seamless automation and integration into production lines.

Featuring a synchronized operation through a shared interface, the system facilitates accurate product handling via unique recipes and compact ejection modules. It is especially advantageous for inspecting unpackaged and packed goods, like flow-packs, boxes, bags, and various cosmetic and food items including lipstick, chocolate bars, and juice cartons.

The equipment offers a linear speed of up to 70 m/min and a maximum speed of 300 ppm, accommodating weight ranges up to 3200 g. Its self-learning system and calibration ensure optimal performance, while advanced X-ray capabilities detect a wide range of foreign bodies, such as metals and glass, ensuring product safety and compliance with CE, MID, BRC, IFS, and HACCP standards.

With a color touchscreen interface for ease of use, and incorporated data processing electronics and remote assistance kits, maintenance is minimized. The robust construction includes a fully integrated cooling module and an IP65 protection degree, guaranteeing durability and operational efficiency in demanding environments.

Benefits

  • Enhances quality assurance by simultaneously weighing and inspecting, ensuring product safety and compliance.
  • Minimizes operational costs and footprint with a compact, integrated design that combines two systems into one.
  • Increases production efficiency with high-speed operations up to 300 ppm, suitable for automated production lines.
  • Supports stringent international standards (CE, MID, BRC, IFS, HACCP) for diversified market access.
  • Offers maintenance-free operation with an integrated cooling module, reducing downtime and service costs.

General


Applications
Food,Boxes,Flow-packs,Rigid containers,Snacks,Cosmetics,Sweets,Bags
End products
Granola bars,Juice cartons,Shampoo bottles,Bagged nuts,Chocolate bars,Candy packs,Eyeshadow palettes,Lip balm,Lipstick
Steps before
Purification,Sorting,Conveying,Unpacking
Steps after
Packaging,Sterilization,Labeling,Quality Assurance
Input ingredients
small horizontal products,unpackaged products,packed products,flow-packs,boxes,bags
Output ingredients
inspected products,weighed products,products free from foreign bodies
Market info
Antares Vision is renowned for providing inspection, track and trace, and quality control systems primarily to the pharmaceutical, food, and beverage industries, ensuring product integrity and supply chain transparency.

Technical Specifications


Linear Speed
up to 70 m/min
Maximum Speed
up to 300 ppm
Weight Range
up to 3200 g
Display Division
starting from 0.1 – 0.2 g
Protection Degree
IP65
Control Panel
15” color touchscreen
Data Processing Electronics
RISC Embedded FPGA
Generator Power
up to 100W
Sensor
RISC Embedded FPGA 300 mm with pixel 0.8 mm
X-ray Inspection Type
top-down beam

Operating Characteristics


Automation level
Self-learning System and Calibration
System flexibility
Integrated Checkweigher and X-Ray with option to work disjoined
Synchronization
Unique product recipes
User interface
Single 15” color touch-screen panel
Detection capability
Detection of metals,glass,stones,bones,and high-density plastics
Inspection method
X-ray inspection (top-down beam)
Ejection modules
Split and compact ejection modules

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Product form
Unpackaged / packed,flow-packs,boxes,bags
Detection capability
Metals,glass,stones,bones,high-density plastics

Physical Characteristics


Machine footprint
Compact
Control panel type
15” color touchscreen
Discharge method
Compact ejection modules
Compact footprint
Yes

Custom Options


Control panel type
Colour touchscreen 15”
Integration possibilities
X-ray and Checkweigher integration in a single system
