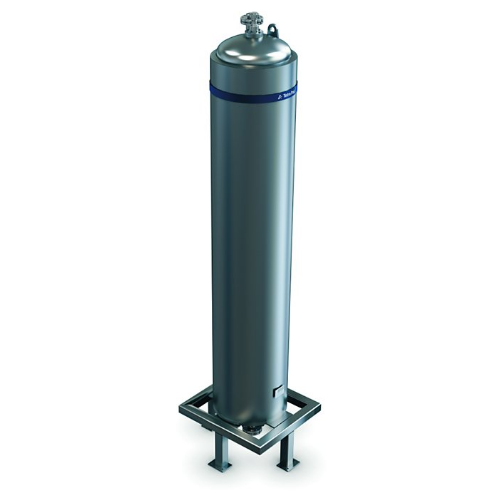

Coiled heat exchanger for high viscosity products

Efficiently handle high-pressure, viscous product heating and cooling with energy-saving capabilities, ensuring particle integrity and hygiene in continuous operations.

Heats, Cools, and Preserves Viscosity of Food Products

The Tetra Pak® Coiled Heat Exchanger is tailor-made for food and beverage industries requiring efficient heat treatment of both viscous and particulate products. Featuring a unique coiled mono-tube design, it enables gentle mechanical treatment that preserves particle integrity, making it perfect for applications ranging from tomato ketchup and Alfredo sauce to yogurt-based desserts and jams. Capable of handling product pressure up to 300 bar, this exchanger promotes high-capacity continuous processing, reducing costs per liter for producers. Its optional energy recovery feature offers up to 47% savings on energy consumption, promoting eco-friendly operations. Thanks to a floating end design, it ensures high hygiene and easy maintenance by allowing thermal expansion without cracking the tubes. Available in various material options, it is built to suit different product characteristics and operational conditions, enhancing its versatility and reliability in demanding production lines.

Benefits

  • Enhances production efficiency by processing high volumes of viscous products under high pressure.
  • Reduces energy consumption by up to 47% with an optional energy recovery feature.
  • Maintains product quality by preserving particle integrity during mechanical treatment.
  • Ensures high hygiene and easy maintenance with a floating end design.
  • Offers flexible application across a wide range of food and beverage products, from sauces to spreads.

General


Applications
Dairy desserts,Soups,Sauces,Spreads,Nectar,Infant formula,Jams,Still drinks,Dips,Plant-based products,Desserts,Dressings,Fruit preparations,Tomato products,Juice
End products
Alfredo sauce,Strawberry jam,Fruit compote,Marinara sauce,Orange juice,Apple nectar,Almond milk,Lemon iced tea,Chocolate mousse,Yogurt-based desserts,Creamy mushroom soup,Baby yogurt,Spinach dip,Ranch dressing,Hazelnut spread,Tomato ketchup
Steps before
Emulsification,Mixing,Homogenization,Blending,Pre-heating
Steps after
Cooling,Filling,Sterilization,Packing,CIP (Clean-In-Place)
Input ingredients
smooth sauces,high viscous sauces,dairy desserts,chunky soups,jams with fruit pieces,low to high viscous products,smooth to particulate products
Output ingredients
heated and cooled products,processed high viscous products,products with particle integrity
Market info
Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.

Technical Specifications


Capacity
Product pressure up to 300 bar,media pressure up to 10 bar
Media Design Temperature
165°C
Particle Size Capacity
Up to 25 mm
Energy Reduction
Reduce carbon footprint by up to 23% per year
Energy Recovery
Cut energy consumption by up to 47%
Steam Saving
Save up to 2,800 tons of steam
Utility Water and Electricity Saving
Up to 2,600 megawatt hours
Pressure Rating
High pressure rating up to 300 bar
Continuous Processing
Yes,suitable for high viscous products
Hygiene and Maintenance
Designed for high hygiene with floating end

Operating Characteristics


Heating and cooling capability
Coiled tubular heat exchanger
Pressure handling
Up to 300 bar
Flow type
Continuous
Product versatility
Low to high viscous,smooth to particulate
Particle integrity
Up to 25 mm diameter
Mechanical treatment
Gentle
Energy recovery
Optional feature
Energy efficiency
Reduced consumption by up to 47%
Thermal expansion handling
Floating end design
Hygiene level
High

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Coiled mono-tube
Single inlet and outlet
Floating end design
Low stress during thermal expansion
Capacity
High-pressure up to 300 bar
Particle size processing capability
Up to 25 millimeters
Energy recovery feature
Up to 47% energy reduction

Custom Options


Control panel type
Touchscreen / Button
Inlet and outlet connection design
Mono-tube / Customized
Floating end design
Available
