Coating pans for precision culinary coatings
Achieve consistent, high-quality coatings on a diverse range of products, from confectionery to pharmaceuticals, through precision-engineered design that ensures optimal performance in coating, polishing, and glazing processes.
Applies Uniform Coatings Across Diverse Products

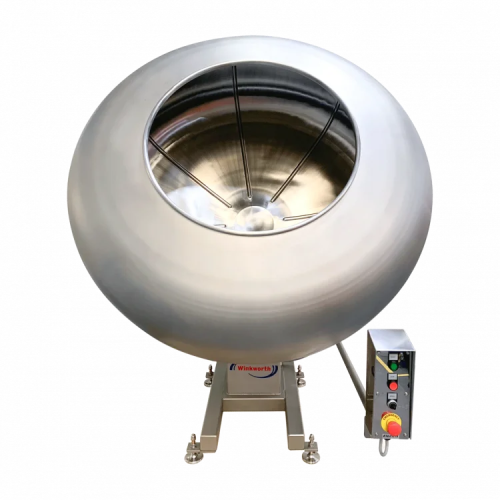

The CP10 and CP60 coating pans from Winkworth are expertly engineered to deliver precise and consistent coating for a range of industries. These pans excel in uniform application of coatings on products such as chocolate-covered almonds, sugar-coated gummies, and metal components for automotive use. Utilizing a robust, hygienic stainless steel design, they are suitable for food, pharmaceutical, and chemical processes. The coating pans support batch and continuous operations, providing versatility for varied production needs. With capacities ranging from 40 to 5000 liters, these pans integrate seamlessly into production lines and offer options like variable speed drives and full automation control for enhanced efficiency and adaptability. Ideal for confectionery, MIM, and other applications, the CP series is equipped to handle solid, powder, and granule forms, ensuring reliable performance and quality output.
Benefits
- Ensures uniform product quality with consistent, reliable coatings.
- Reduces operational costs with customizable automation options.
- Versatile integration into existing lines with batch or continuous modes.
- Lowers maintenance efforts with hygienic, easy-to-clean construction.
- Enhances production flexibility with variable speed and capacity configurations.
- Applications
- Agricultural chemicals,Snacks,Metal injection moulding,Confectionery coatings,Ceramic injection moulding,Coated sweets,Baking ingredients,Adhesives and sealants,Chewing gum,Processed foods,Pet foods,Household products,Rubber and plastics,Paints,Pharmaceuticals,Powder coatings,Nutraceuticals,Confectionery,Food powders,Cereals,Lubricants,Coating materials
- End products
- Protein powder coatings,Automotive underbody sealing,Biscuit mix coatings,Ceramic dental implants,Granola clusters,Emulsion paints,Vitamin-coated energy bars,Chocolate-covered almonds,Rubber gaskets,Plastic pellets for molding,Cornflakes,Sugar-coated gummies,Candy-coated peanuts,Edible silver or gold leaf decorations,Powder-coated screws,Scented wax melts,Bubble gum spheres,Fertilizer granules,Potato chips with seasoning dust,Metal components for automotive,Gel capsules,Hot melt adhesive sticks,Marzipan coatings,Sugar-coated tablets,Dry cat food,Yogurt-covered raisins
- Steps before
- Mixing,Syrup Preparation,Material Handling,Heating
- Steps after
- Polishing,Glazing,Dusting,Packaging
- Input ingredients
- biscuit dough,cake mix,chewing gum base,chocolate,sugar paste,confectionery ingredients,liquid coatings,syrup,cereals,pharmaceutical powders
- Output ingredients
- coated sweets,glazed products,polished confectionery,confectionery,chewing gum,cereals,pharmaceuticals
- Market info
- Winkworth is known for manufacturing high-quality, engineered-to-order industrial mixing equipment, including mixers and blenders, renowned for their reliability and innovation in the pharmaceutical, food, and chemical industries.
- Capacity
- 40–5000 litres
- Material construction
- Stainless steel 304/316 grade
- Drive Type
- Fixed speed geared drive
- Size
- Table top to 72" diameter
- Automation
- Full automation and control systems HMI/PLC
- Speed control
- Variable speed drive unit
- Chamber shape
- Semi-ellipsoidal,apple or pear shape
- Coating method
- Pan
- Spraying system
- Spraying and/or atomising systems
- Heating system
- Process air heater and dehumidifying systems
- Noise control
- Noise insulation and acoustic enclosures
- Base type
- Heavy duty base/support stand with fixed drive
- Automation level
- Manual / PLC / HMI
- Batch vs. continuous operation
- Batch
- Cleaning method
- Manual
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Product types supported
- Coated Sweets,Confectionery,Chewing Gum,Cereals,Pharmaceuticals
- Machine Footprint
- Varies based on model size
- Shape
- Semi-ellipsoidal,apple,or pear shape chambers
- Machine Size
- Tabletop to 72" diameter
- Material
- Stainless Steel (304/316 grade)
- Size Range
- Working volumes from 40 to 5000 litres
- Discharge Method
- Hatch door,plug valve,or tilting discharge
- Base Structure
- Heavy duty base with fixed drive
- Customization
- Bespoke surface finishes
- Control Panel Type
- HMI/PLC automation system
- Internal baffles,ribs,flights,domes
- Option
- Hatch door,plug valve or tilting discharge
- Option
- Variable speed drive unit
- Option
- ATEX certification
- Option
- Full automation and control systems HMI/PLC
- Option
- Bespoke surface finishes
- Option
- Process air heater and dehumidifying systems
- Option
- Semi-ellipsoidal,apple or pear shape chambers
- Option
- Syrup preparation systems
- Option
- Spraying and/or atomising systems
- Option
- Noise insulation and acoustic enclosures
- Option
- Inverter variable speed drive unit
- Option
