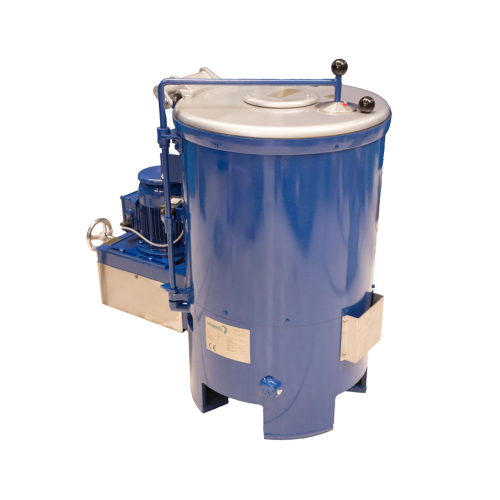

Coating centrifuge for small parts with oil and adhesives
Optimize your coating processes with a centrifuge designed to ensure efficient material application and excess removal, reducing waste and enhancing part quality.
Applies and Spins Off Coatings
The HEINKEL Coating Centrifuge series, comprising the V 425 TT and V 450 TT Ex models, offers a sophisticated solution for precision coating applications across diverse industries, such as pharmaceutical, chemical, food products, and metal recycling. These centrifuges stand out for their ability to efficiently spin off excess coatings, ensuring uniform surface application on small parts like oil-coated metal components, lacquer-coated fasteners, and flavor-coated food snacks. Operated manually in batch processes, the centrifuges feature custom baskets with strainer-like holes enabling rapid coating material access during dipping and effective liquid removal during spinning. The V 450 TT Ex model is specialized for hazardous Ex zones, ensuring safety in volatile environments. With a maximum speed of 3,000 to 7,500 RPM and a handling capacity of up to 20 kilograms per batch, these centrifuges support seamless integration into your production line, optimizing surface coating processes while maintaining high throughput. The use of stainless steel baskets and fine wire mesh prevents part ejection and enhances durability, while the easy-to-clean design simplifies maintenance.
Benefits
- Enhances product quality with uniform coating application.
- Increases operational efficiency with rapid material exchange and easy maintenance.
- Ensures safe operation in hazardous zones with the Ex model.
- Minimizes downtime through easy basket replacement and efficient use of space.
- Supports environmental compliance with effective solvent vapor extraction.
- Applications
- Surface coating,Fine chemicals,Chemical,Coating materials,Food products,Metal / recycling,Pharmaceutical
- End products
- Chemical surface protectants,Adhesive-bound components,Pharmaceutical tablet coatings,Oil-coated metal parts,Flavor-coated food snacks,Lacquer-coated fasteners,Recycled metal components with protective coatings
- Steps before
- Material Loading,Manual Dipping Process,Coating Material Preparation
- Steps after
- Spinning Off Excess Coating,Drying,Inspection
- Input ingredients
- oil,paint,adhesive binders,lacquer,coating material
- Output ingredients
- coated small parts,excess coating material
- Market info
- Heinkel is known for manufacturing high-quality industrial equipment, specializing in centrifuges, dryers, and other engineered-to-order machinery for the chemical, pharmaceutical, and environmental sectors, with a reputation for innovation and reliability.
- Material Construction
- Die-cast GGG 40
- Basket Diameter
- 425–450 mm
- Basket Height
- 150–160 mm
- Nominal Volume
- 15 liters
- Max. Filling Capacity
- 20 kg
- Max. Speed
- 3000–7500 1/min
- No. of Batches
- 12–15 batches/h
- Weight
- 330–400 kg
- Sealing Design
- Shaft Seal
- Service Life of Bearings
- 15,000 hours
- Mesh Size in Basket
- 3.0 mm Diameter Holes
- Container Lifting Mechanism
- Manual Swivelling Lever
- Vapor Extraction Opening
- Yes
- Batch vs. continuous operation
- Batch
- Changeover time
- Minimal due to use of second basket
- Automation level
- Manual for dipping,automatic for spinning
- Cleaning method
- Manual,with detachable casing for ease
- Energy efficiency
- Optimized for spinning off excess material
- Abrasion resistance
- Yes
- Biological compatibility
- No
- Cleanability
- Easy to clean
- Corrosive resistance (e.g. acids)
- Yes
- Density/particle size
- 0.5–2.5 g/cm³
- Coating type
- Oil,paint,adhesive
- Machine footprint
- V 425 TT
- V 450 TT Ex
- 1,250 mm x 800 mm x 1,180 mm
- Basket diameter
- 425 mm (V 425 TT)
- 450 mm (V 450 TT Ex)
- Basket height
- 160 mm (V 425 TT)
- 150 mm (V 450 TT Ex)
- Basket capacity
- Nominal volume
- Maximum filling
- 20 kg (V 425 TT)
- 25 kg (V 450 TT Ex)
- Discharge method
- Spinning off excess coating material
- Material of construction
- Stainless steel
- Weight
- 330 kg (V 425 TT)
- 400 kg (V 450 TT Ex)
- Control panel type
- Manual
- Custom basket options
- Stainless steel baskets
- Ventilation system
- Venting cover for solvent vapors
- Lifting mechanism
- Manual lifting with swivelling lever
- Basket exchangeability
- Easy exchange of coating material containers
