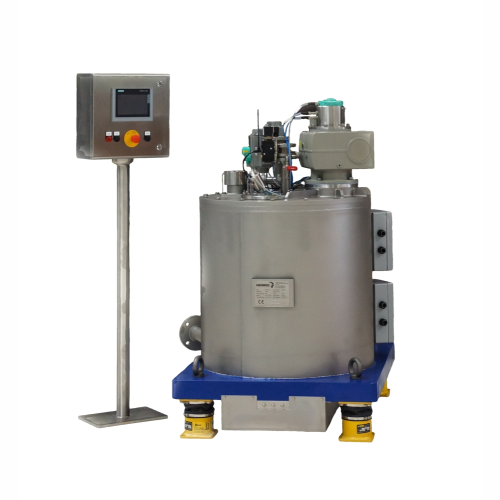

Classifying centrifuge for wet classification of fine particles
Ensure precise particle classification in continuous processes with high throughput, minimizing maintenance while maximizing efficiency with the right equipment for your separation needs.
Continuously Classifies and Separates Fine Particles
The V 630 BK – TIOCENT classifying centrifuge from HEINKEL Drying & Separation Group is engineered for the continuous wet classification of fine and ultrafine particles in slurry applications. Equipped with an electrically operated turbulence blade and a pneumatically operated siphon, it ensures precise separation and high throughput. Ideal for pharmaceutical, chemical, and food industries, it supports processes like the production of active pharmaceutical ingredients and fine chemical intermediates. The centrifuge is designed for simple installation and low-maintenance operation, with a design emphasizing easy adjustment of the separation cut and coarse particle recycling. Constructed with durable materials that accommodate aggressive substances, it facilitates integration into production lines as it can be adapted for various operational conditions. The V 630 BK – TIOCENT complies with industry standards, ensuring reliability and efficiency in demanding environments.
Benefits
- Enhances production efficiency with continuous operation and precise particle classification.
- Minimizes maintenance time and effort with a maintenance-friendly design.
- Supports diverse slurry applications through easy adjustment of the separation cut.
- Facilitates integration into existing systems with simple installation.
- Promotes sustainable practices by allowing recycling of coarse particles.
- Applications
- Chemicals,Surface coating,Fine chemicals,Metal recycling,Food products,Pharmaceuticals
- End products
- Active pharmaceutical ingredients,Food additives,Coated pigments,Fine chemical intermediates,Metallic nanoparticles
- Steps before
- Mixing,Slurry Preparation,Suspension Creation
- Steps after
- Further Separation,Drying,Particle Packaging
- Input ingredients
- slurries,fine particles,ultrafine particles,nanoparticles
- Output ingredients
- classified suspension,coarse particles
- Market info
- Heinkel is known for manufacturing high-quality industrial equipment, specializing in centrifuges, dryers, and other engineered-to-order machinery for the chemical, pharmaceutical, and environmental sectors, with a reputation for innovation and reliability.
- Basket diameter
- 630 mm
- Basket height
- 500 mm
- Filter area
- 1.37 m²
- Nominal volume
- 77 l
- Max. Filling
- 73 kg
- Max. Speed
- 3,000 1/min
- Centrifugal force
- 3,169 x g
- Length
- 1,370 mm
- Width
- 1,250 mm
- Height
- 1,350 mm
- Weight
- 2,000 kg
- Separation cut
- Precise
- Throughput
- High
- Turbulence blade operation
- Electrically operated
- Suspension discharge
- Pneumatically operated siphon
- Working mechanism
- Wet classification centrifuge
- Automation level
- Manual / PLC / SCADA
- Batch vs. continuous operation
- Continuous
- Cleaning method
- Low maintenance complexity
- Discharge method
- Pneumatically operated siphon
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Basket diameter
- 630 mm
- Basket height
- 500 mm
- Filter area
- 1.37 m²
- Nominal volume
- 77 L
- Max. filling
- 73 kg
- Max. speed
- 3,000 1/min
- Centrifugal force
- 3,169 x g
- Machine length
- 1,370 mm
- Machine width
- 1,250 mm
- Machine height
- 1,350 mm
- Machine weight
- 2,000 kg
- Discharge method
- Pneumatically operated siphon
- Separation cut adjustment
- Easy adjustment
- Discharge method
- Pneumatically operated siphon
- Turbulence blade operation
- Electrically operated
- Installation type
- Simple installation
