Cip workstation for pharmaceutical liquid preparation systems
Optimize your liquid formulation process with precise cleaning and sterilization capabilities to ensure product integrity and regulatory compliance in sterile preparation environments.
Automates Cleaning and Sterilization of Liquid Systems

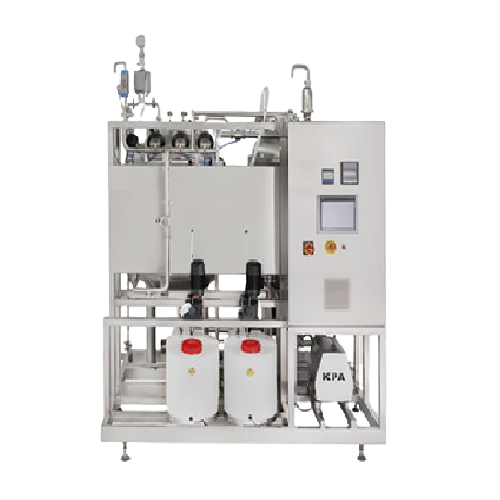

AUSTAR’s CIP Workstation is designed for pharmaceutical and biopharmaceutical environments, offering comprehensive automatic cleaning and sterilization for liquid formulations. The system features a 3D modular design, integrating components such as tanks, pumps, and heat exchangers from top international brands, ensuring dependable quality and performance. The workstation employs Siemens S7-1500 PLCs and TP1200 Comfort series HMIs for seamless automation and traceability, adhering to GAMP5 standards. Applicable for producing injectable drugs and biotech-derived therapies, the CIP Workstation supports rigorous cleaning processes, facilitating risk assessments and multiple validation stages to uphold consistent product integrity and compliance with industry standards. With options for mobile, single, double, and multi-tank configurations, the system delivers operational flexibility tailored to your plant’s specific needs.
Benefits
- Enhances production efficiency with automatic cleaning and sterilization, reducing manual labor.
- Minimizes cross-contamination risk with integrated self-cleaning features.
- Ensures regulatory compliance with validated GAMP5-aligned processes.
- Provides flexible operation through modular design and multiple configuration options.
- Utilizes high-quality components for long-term reliability and performance stability.
- Applications
- Biopharmaceuticals,Sterile preparations,Liquid formulations,Pharmaceuticals
- End products
- Monoclonal antibodies,Antibiotics,Insulin formulations,Ophthalmic solutions,Biotech-derived protein therapies,Injectable drugs,Parenteral nutrition solutions,Vaccine solutions,Sterile saline solutions
- Steps before
- Liquid Preparation,Purification,Mixing
- Steps after
- Sterilization,Inspection,Packing,Validation
- Input ingredients
- Output ingredients
- Market info
- Austar is known for specializing in the design and manufacture of engineered-to-order industrial equipment, particularly in the pharmaceutical and biotechnology sectors, offering solutions that focus on quality, innovation, and meeting specific customer requirements.
- Modular Design
- 3D modular design
- Material Brand
- International and domestic excellent brands
- Control System
- PLC-controlled
- PLC Model
- Siemens S7-1500 CPU
- HMI Model
- TP1200 Comfort series touch screen
- Software Compliance
- GAMP5 V-model
- Automation
- Automatic control of production,cleaning,and sterilization
- Validation Activities
- RA/DQ/IQ/OQ
- Working mechanism
- 3D modular design
- Automation level
- Automatic control
- CIP/SIP
- CIP 121°C / SIP 135°C
- Batch vs. continuous operation
- Batch
- Integrated steps
- Cleaning and sterilization
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Agglomeration Risk
- Low
- Tank type
- Single / Double / Multi-tank
- Control panel type
- Touch screen
- Frame design
- 3D modular design
- Footprint
- Compact
- Automation integration
- PLC / Siemens S7-1500
- HMI type
- TP1200 Comfort series
- Control panel type
- Siemens S7-1500 CPU
- HMI Type
- TP1200 Comfort series touch screen
- Integration possibilities
- Compatible with all S7 PLC systems
- Footprint
- 3D modular design,compact
- Tank options
- Single-tank,double-tank,multi-tank
- CIP Workstation Type
- Mobile CIP trolley
- Material brand selection
- International and domestic excellent brands
