Chocolate melting and mixing kettle for small-scale production
Streamline your confectionery production with a compact kettle designed for precise melting and mixing, ensuring consistent quality across batches of chocolate, jams, and specialty food products.
Melts and Mixes Chocolate and Specialty Foods

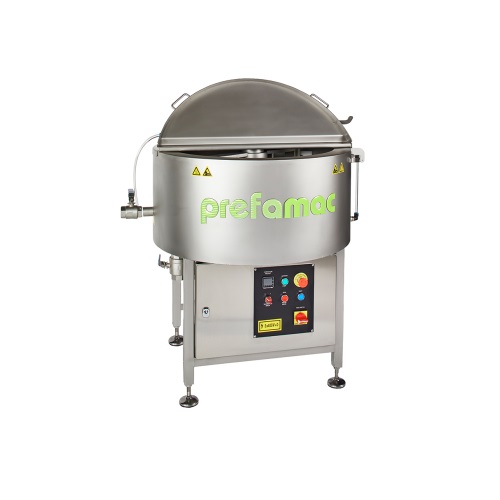

The ERGO 100L / 22 Gallons Melting and Mixing Kettle from Prefamac is a versatile solution designed for artisanal and industrial food producers. This kettle excels in processing chocolate, jams, and specialty products by delivering uniform melting and precise mixing through its double-walled heating and adjustable agitator. Ideal for food and bakery industries, it handles diverse applications such as sugar-free and vegan products, ensuring consistent quality across batch operations. Constructed entirely from pearled stainless steel for durability and hygiene, it integrates seamlessly with existing processes, offering options like chocolate pumps and flexible piping. The kettle operates manually or in compact configurations, supported by a digital thermostat for accurate temperature control, and is compliant with safety standards, enhancing energy efficiency and ergonomic design. Prefamac provides customization options and engineering support, allowing users to adapt the equipment to specific production needs seamlessly.
Benefits
- Delivers consistent product quality and texture with precise heat and mixing control.
- Enhances production flexibility through customizable options like chocolate pumps and piping systems.
- Improves safety and operational efficiency with ergonomic design and digital temperature management.
- Facilitates diverse product manufacturing, from gluten-free to vegan items, with versatile processing capabilities.
- Provides long-term durability and easy cleaning with robust stainless steel construction.
- Applications
- Jam,Vegan products,Gluten-free products,Butter,Chocolate,Specially coloured products,Sugar-reduced products
- End products
- Sugar-free dark chocolate,Strawberry jam,Gluten-free brownie mix,Vegan chocolate spread,Chocolate bars,Peanut butter,Blueberry-flavored candy coating
- Steps before
- Ingredient preparation,Block cutting,Raw material weighing
- Steps after
- Pouring into molds,Cooling,Packaging
- Input ingredients
- chocolate,jam,butter,gluten-free products,sugar-reduced products,vegan products,specially coloured products
- Output ingredients
- melted chocolate,mixed ingredients,processed gluten-free products,processed sugar-reduced products,processed vegan products,processed specially coloured products
- Market info
- Prefamac is known for manufacturing high-quality chocolate processing equipment, including tempering, enrobing, and cooling machines. The company is recognized for innovative and custom-engineered solutions tailored to the confectionery industry, emphasizing precision, efficiency, and reliability.
- Capacity
- 100L / 22 Gallons
- Material
- Pearled stainless steel
- Heating type
- Heating resistance
- Insulation
- Glass wool insulation
- Agitator
- Adjustable speed with side scrapers
- Height
- 116 cm / 3.75”
- Outlet type
- Bottom and side,with drain taps
- Temperature control
- Digital thermostat and mechanical safety thermostat
- Power Supply
- Three-phase connection
- Batch vs. continuous operation
- Batch
- Automation level
- Manual / PLC
- Cleaning method
- Manual / CIP
- Energy efficiency
- Not specified
- Changeover time
- Not specified
- Cleanability
- Yes
- Corrosive resistance (e.g. acids)
- Yes
- Biological compatibility
- Yes
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Compact footprint
- 116 cm / 3.75'' height
- Tank capacity
- 100L / 22 gallons
- Construction material
- Pearled stainless steel
- Discharge method
- Outlet at the bottom and side,drain taps included
- Mounting options
- Platform or castors
- Agitator type
- Side scrapers on agitator,adjustable in speed
- Heating method
- Heating resistance
- Insulation type
- Glass wool insulation
- Platform Options
- Version on platform or castors
- Filling Assistance
- Giraffe belt or step system
- Pumping System
- Chocolate pump
- Piping
- Double-walled fixed or flexible stainless steel piping
- Control System
- Central operating panel
- Additional Controls
- Infrared control
- Feed Options
- Feed hopper and/or filter
- Co-design Capabilities
- Special platform,pump,filter,or piping
