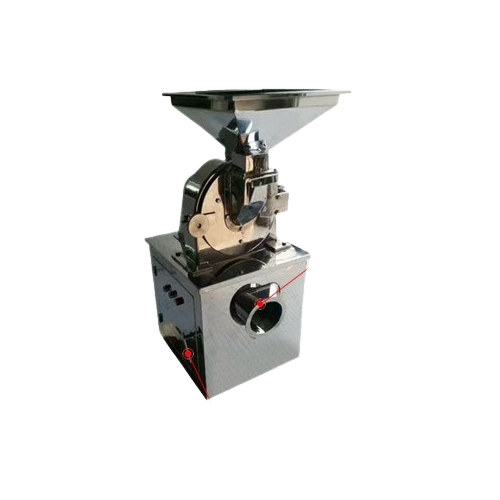

Chili powder milling machine

Transform raw spices into finely milled powders effortlessly with this high-speed grinding solution, ensuring consistent texture for superior quality blends in your production line.

Grinds and Pulverizes Spices and Grains

The TZY-180 from Zhengzhou Taizy Machinery Co., Ltd. is a robust milling and pulverizing machine designed for high-speed spice, grain, and pharmaceutical processing. Featuring a unique cross hammer and fluted disc setup, it excels in producing fine powders such as chili, turmeric, and protein supplements. With an operational capacity of 20-50 kg/h and adjustable fineness via interchangeable screens, it meets diverse production needs. Constructed from durable stainless steel, it offers long service life and low noise, making it suitable for continuous operation in food, pharmaceutical, and chemical industries. The TZY-180 also supports seamless integration into existing production lines, with simple maintenance and customizable motor settings for optimal performance.

Benefits

  • Enhances production efficiency by converting diverse raw materials into uniform, fine powders.
  • Supports operational flexibility with configurable screen sizes for varying fineness requirements.
  • Lowers energy expenses with efficient design and optimized motor control.
  • Facilitates easy maintenance with durable stainless steel construction and simple cleaning procedures.
  • Ensures seamless operation integration with adjustable motor direction and continuous processing capability.

General


Applications
Chemicals,Grains,Wheat,Agricultural products,Beans,Nuts,Food ingredients,Spices,Pharmaceuticals
End products
Cumin powder,Chili powder,Fertilizer granules,Herbal powder supplements,Protein powders,Peanut powder,Ground turmeric,Coriander powder,Chemical additives,Wheat flour,Almond meal,Paprika,Soybean flour,Flavored flour,Ground cornmeal,Dried medicinal herbs
Steps before
Drying,Sorting,Size Reduction
Steps after
Packing,Quality Check,Storage
Input ingredients
chili,corn,beans,wheat,Chinese yam
Output ingredients
fine chili powder,fine powder,finished product
Market info
Taizy Food Machinery is known for manufacturing industrial food processing equipment, specializing in engineered-to-order (ETO) machinery. They have a reputation for innovative, high-quality solutions tailored to meet various customer specifications globally.

Technical Specifications


Capacity
20-50 kg/h
Fineness
10-120 mesh
Mainshaft speed
4500 r/min
Total power
2.2 kW
Size
450*550*900 mm
Material
304 Stainless Steel
Weight
95 kg
Voltage
Customizable according to local requirements

Operating Characteristics


Working Mechanism
Impact,Rub,Collide
Noise Level
Low
Automation Level
Manual Operation
Type of Operation
Batch
Cooling Requirement
Water Cooling Device
Material Handling
Dry and Brittle Raw Materials
Relative Motion Mechanism
Movable and Fixed Fluted Discs

Material Compatibility


Abrasion resistance
High
Corrosive resistance (e.g. acids)
Yes
Cleanability
Easy to Clean
Biological compatibility
Food Grade
Density/particle size
Variable

Physical Characteristics


Machine footprint
450*550*900 mm
Control panel type
Switches (green-on,red-off)
Material construction
304 Stainless Steel
Cooling system
Water cooling

Custom Options


Control panel type
Manual
Screen type
Interchangeable aperture screens
Material of construction
304 Stainless steel
