Cartoning solution for soup cubes

Optimize your soup cube packaging process with a compact, high-speed wrap-around solution that enhances efficiency and minimizes energy consumption while ensuring top-quality cartoning outcomes.

Packs and Forms Cartons for Soup Cubes

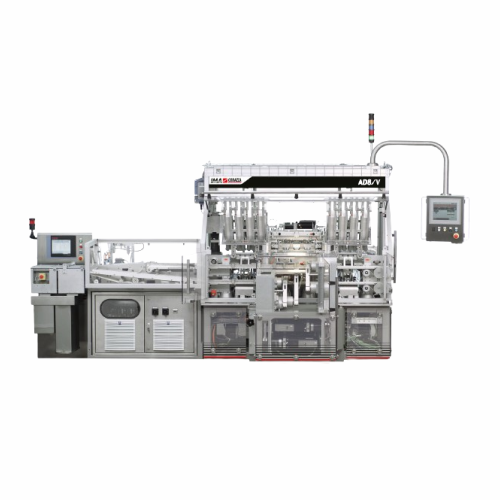

The AD8 Series from IMA Group is a wrap-around cartoning machine designed specifically for packing soup cubes. What sets this machine apart is its ability to process up to 600 cartons per minute, utilizing electronic motion control for precise and efficient operation. This machine is versatile, handling a range of carton sizes for diverse end-products including beef, chicken, and vegetable bouillon cubes. Integration into production lines is seamless, with compact footprints that enable easy operator access for maintenance and component handling. Energy efficiency is enhanced by sharing kinetic energy between modules and optional vacuum pumps, reducing overall energy consumption. Its robust design is suitable for continuous, high-speed operations common in food packaging, ensuring reliable performance.

Benefits

  • Maximizes packaging efficiency with a throughput of up to 600 cartons per minute.
  • Reduces operational costs by utilizing kinetic energy sharing for improved energy management.
  • Saves procurement expenses with wrap-around cartoning from flat blanks.
  • Ensures operator convenience with compact design and easy accessibility.
  • Supports sustainability by allowing the use of recyclable packaging materials.

General


Applications
Food packaging,Soup cubes
End products
Mushroom soup cubes,Beef bouillon cubes,Chicken stock cubes,Vegetable broth cubes,Fish fumet cubes
Steps before
Dosing,Soup cube feeding
Steps after
Wrapping,Carton sealing,Box outfeed
Input ingredients
flat blanks,soup cubes,cardboard
Output ingredients
packaged soup cubes,cartons,cardboard boxes
Market info
IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.

Technical Specifications


Carton capacity
2 to 48 cubes
Production speed
Up to 600 cartons/min
Compressed Air Consumption
220–300 Nl/min (min. op. pressure 6 bar)
Vacuum
10 m³/h (op. vacuum 600 ± 50 mm Hg)
Weight
3,500 Kg Approx.
Dimensions
(A) 30 ÷ 97 mm,(B) 49 ÷ 189 mm,(C) 11 ÷ 45 mm
Electric Requirement
3P x 400 Volt – 50 Hz
Control
Fully electronic mechanisms
Lane Capacity
1 ÷ 4
Layer Capacity
1 ÷ 3

Operating Characteristics


Automation level
Fully electronic mechanisms
Changeover time
Easy access for component handling
Batch vs. continuous operation
Inline Continuous
Energy efficiency
Kinetic energy sharing during braking

Material Compatibility


Sustainable packaging materials
Yes
Recyclable packaging materials
Yes
Corrugated cardboard
Yes
Flat blanks
Yes
Low vacuum system consumption
Yes

Product type Characteristics


Product type
Soup cubes
Wrap-around cartoning
Flat blanks used for carton formation

Physical Characteristics


Machine footprint
Compact
Box dimensions
A
Box forming method
Wrap-around from flat blanks
Feed/Discharge Method
Soup cubes fed from dosing machine

Custom Options


Control panel type
Fully electronic mechanisms
Compact footprint
Yes
Integration possibilities
Handles different-sized cartons
Energy efficiency
Kinetic energy utilization during braking
Use of sustainable materials
Sustainable and recyclable packaging materials
