Cartoning solution for cheese portions

Optimize your cheese packaging with a flexible cartoning solution designed to accommodate varying product sizes and configurations, ensuring efficient production and minimal waste.

Cartons and Packs Dairy Cheese Efficiently

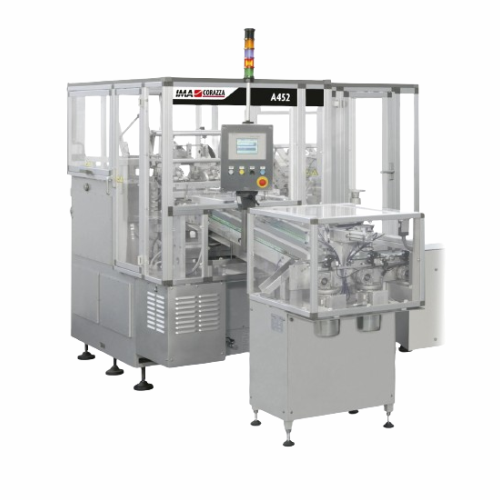

The A452F Cartoning Machine from IMA Group is engineered to meet the demanding needs of dairy producers and food packaging companies. This robust machine specializes in forming and packing cartons for a variety of cheese formats, including processed, fresh, and cream cheese. Utilizing flat blank cartons, the A452F forms them around products during loading with a cost-saving wrap-around system, ensuring damage-proof handling with its U-shaped vertical indexing turret. Ideal for high-speed, continuous operations, it can accommodate up to 80 boxes per minute with adjustable configurations to handle different product sizes. Sustainable features include motorization designed to minimize power waste and optional vacuum pumps that reduce compressed air consumption. Made to integrate seamlessly into existing lines, the machine offers flexibility and reliability for optimizing packaging efficiency in cheese production.

Benefits

  • Enhances production efficiency with versatile configurations for different cheese products.
  • Reduces energy costs through shared kinetic energy and optional vacuum pump technology.
  • Ensures product integrity with gentle, damage-proof handling mechanisms.
  • Adapts quickly to production changes with simple conversions for multiple product sizes.
  • Supports sustainable packaging initiatives with recyclable material compatibility.

General


Applications
Cream cheese,Fresh cheese,Processed cheese
End products
Cream cheese tubs,Cheese spread packets,Individually wrapped processed cheese slices,Fresh cheese blocks
Steps before
Dosing,Wrapping,Pressing
Steps after
Case packing,Palletizing
Input ingredients
square cheese portions,rectangular cheese portions,processed cheese,fresh cheese,cream cheese,flat blank cartons
Output ingredients
cartoned cheese packages,square or rectangular cartoned cheese,up to 1 kg cheese cartons
Market info
IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.

Technical Specifications


Production capacity
Up to 80 boxes/min
Full load current
3P x 400 Volt – 50Hz – 8 Amp
Compressed air consumption
350 Nl/min (Min. op. pressure 6 bar)
Weight
3,700 kg Approx.
Box dimensions
A (min ÷ max) 59 ÷ 150,B (min ÷ max) 56 ÷ 75,C (min ÷ max) 22 ÷ 62
Cartoning
For square and rectangular portions of processed,fresh or cream cheese
Sustainability
Kinetic energy sharing,reduced compressed air consumption
Conversion capability
Handles different product sizes,up to 1 kg cartons in single-head version
Wrap-around system
Cost-saving,shapes cartons from open flat blanks
Product handling
Damage-proof,cartons pre-formed into U-shape

Operating Characteristics


Automation level
High
Changeover time
Quick
Batch vs. continuous operation
Batch
Cleaning method
Manual
Energy efficiency
Optimized motorization

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container shape
Square / Rectangular


CE marking
Yes
FDA compliance
Possible
3A Sanitary Standards
Possible
EHEDG certification
Possible

Physical Characteristics


Box dimensions
A (min ÷ max) 59 ÷ 150,B (min ÷ max) 56 ÷ 75,C (min ÷ max) 22 ÷ 62
Discharge method
Shape cartons from open flat blanks
Weight
3,700 kg Approx.

Custom Options


Infeed section type
Various types available
Carton formation method
Flat blank
Motorization
Energy-saving design
Vacuum pump integration
Optional
Pack configuration
Configurable
Product size conversion
Simple conversion
Single-head version
Available for up to 1 kg cartons
Carton configuration
U-shape in vertical turret
