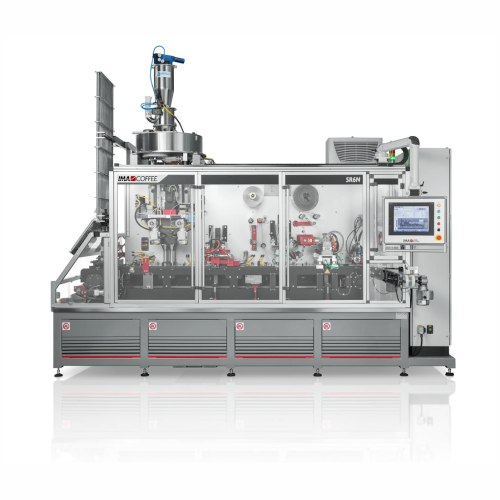

Capsule filling and sealing system for coffee products

Optimizing the precision of coffee and tea capsule production, this system enhances efficiency and quality with advanced dosing, sealing, and weighing technologies, ideal for producers aiming to seamlessly integrate sustainable packaging into their high-speed operations.

Fills and Seals Coffee and Tea Capsules

The SR Series by IMA Group consists of robust capsule filling and sealing systems designed to optimize production efficiency for coffee and tea manufacturers. These machines stand out with their camshaft-driven mechanical stations and auger dosing system powered by a Brushless motor, ensuring high dosing accuracy. Capable of handling compostable and recyclable capsules, the SR Series accommodates a variety of products, including coffee, tea leaves, and soluble items. With a production speed reaching up to 360 capsules per minute, it supports medium to high-speed operations seamlessly. Equipped with a 15-inch touch-screen interface, these machines offer intuitive operation and real-time monitoring. Integration is further enhanced with features such as nitrogen flushing and in-line weighing systems for precise weight control. Ideal for the food and beverage industry, the SR Series promotes sustainability by utilizing energy-efficient ultrasonic sealing technology, making it a versatile solution for modern production lines.

Benefits

  • Enhances production efficiency with high-speed capsule filling and sealing capabilities.
  • Promotes sustainability by handling compostable and recyclable materials.
  • Ensures precise product dosing, reducing material waste and maintaining quality standards.
  • Integrates seamlessly with existing production lines due to flexible lane setups.
  • Minimizes energy consumption through the use of ultrasonic sealing technology.

General


Applications
Tea leaves,Soluble products,Coffee
End products
Compostable coffee pods,Espresso capsules,Coffee capsules,Filter coffee capsules,Recyclable tea capsules,Soluble tea granules,Instant coffee sachets,Tea pods
Steps before
Grinding,Roasting,Purification
Steps after
Packing,Sealing,Nitrogen Flushing
Input ingredients
empty capsules,coffee,tea leaves,soluble product,nitrogen,compostable materials,recyclable materials
Output ingredients
filled capsules,sealed capsules
Market info
IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.

Technical Specifications


Production speed (capsules/min)
Up to 240 (SR4),Up to 360 (SR6)
Power consumption (kW)
13.8 – 14.5 (SR4),18 – 23 (SR6)
Machine weight (kg)
3000 – 3500 (SR4),3500 – 4800 (SR6)
Nitrogen consumption (Nm3/h)
57.6 – 61.2 (SR4),64.8 – 93.6 (SR6)
Compressed air consumption (Nm3/h)
36 (SR4),55 (SR6)
Compressed air pressure (bar)
5.5 ÷ 7 (SR4,SR6)
Coffee dosing system
Auger system driven by a Brushless motor
Sealing types
Aluminium film,micro perforated,filter paper,triplex coupled,PP lid
Touch-screen operator panel
15"
Capsule lanes
4 and 6

Operating Characteristics


Working mechanism
Camshaft system
Automation level
15” touch-screen operator panel
Product dosing system
Auger system driven by Brushless motor
Capsule sealing method
Ultrasonic sealing
Lane configuration
4 and 6 lanes
Product type compatibility
Coffee,tea leaves,soluble products
Nitrogen support
Prearrangement for nitrogen tunnel
Material compatibility
Compostable and recyclable materials
Integrated steps
Feeding,dosing,sealing,weighing
Batch vs. continuous operation
Continuous

Material Compatibility


Sealing material compatibility
Aluminium film,filter paper,triplex coupled,PP lid


CE marking
Yes
FDA materials
Yes
GMP Compliance
Yes

Physical Characteristics


Control panel type
15” touch-screen operator panel

Custom Options


Control panel type
15” touch-screen operator panel
Lane configuration
4 and 6 lanes
Product compatibility
Coffee,tea leaves,soluble products
Sealing options
Aluminium,micro perforated,filter paper,triplex coupled,PP lid
Integration options
Nitrogen tunnel,check weigher,filter insertion
Motor type
Brushless motor
