Capsule filling and sealing system for coffee

Optimize your capsule production with a system designed to enhance precision dosing and reliable sealing, catering to diverse beverage applications while maintaining efficiency and sustainability in high-speed operations.

Fills and Seals Capsules with Precision

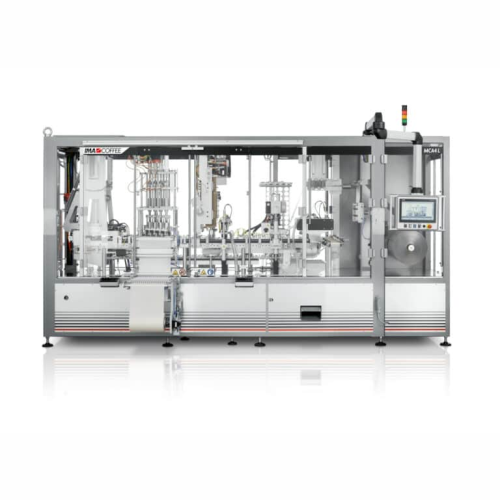

The MCA Series from IMA Group offers a comprehensive solution for precise and reliable capsule filling and sealing. Equipped with a handling chain system, it automatically processes up to four lanes, ensuring efficient throughput across diverse applications including coffee, tea, herbal, and instant products. The machine’s modular design supports seamless integration into existing production lines, with dosing managed by a volumetric screw providing weight accuracy within ±0.2 grams. The MCA Series supports high-speed, continuous operation and can accommodate compostable and recyclable materials, reducing environmental impact. Standout features include servo motor-driven components for energy efficiency, easy-cleaning, and maintenance-friendly designs, alongside options such as integrated vertical packaging units and nitrogen injection devices. Suitable for high-demand environments, it allows customization for enhanced performance, ensuring alignment with industry standards while optimizing operational expenditure.

Benefits

  • Maximizes production throughput with up to 240 capsules per minute.
  • Enhances energy efficiency through servo motor-driven movements.
  • Ensures precise dosing, maintaining product quality with ±0.2g accuracy.
  • Supports sustainable practices with compatibility for compostable materials.
  • Facilitates quick and easy maintenance, minimizing downtime.

General


Applications
Instant products,Herbal products,Coffee,Soluble beverages,Tea
End products
Green tea capsules,Hot chocolate sachets,Herbal tea capsules,Espresso capsules,Coffee capsules,Instant coffee sachets,Matcha drink pods,Soluble tea bags,Soluble beverage pods
Steps before
Grinding,Blending,Mixing
Steps after
Packing,Labelling,Sealing
Input ingredients
empty coffee capsules,aluminum capsules,plastic capsules,compostable capsules,filter material,herbal products,instant products,capsule lids,nitrogen gas
Output ingredients
filled coffee capsules,sealed coffee capsules,herbal capsules,instant product capsules
Market info
IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.

Technical Specifications


Production speed
70 Capsules/min (MCA1),130 Capsules/min (MCA2),240 Capsules/min (MCA4 SHORT,MCA4 LONG)
Installed Power
10 kW (MCA1),16 kW (MCA2),18 kW (MCA4 SHORT),24 kW (MCA4 LONG)
Machine Weight
1,800 Kg (MCA1),2,800 Kg (MCA2,MCA4 LONG),2,200 Kg (MCA4 SHORT)
Compressed air pressure
7 bar
Expected compressed air consumption
400 Nl/min (MCA1),300 Nl/min (MCA2,MCA4 SHORT),350 Nl/min (MCA4 LONG)
Material reel width
60 mm MAX (MCA1,MCA2),150 mm MAX (MCA4 SHORT),300 mm MAX (MCA4 LONG)
Material reel diameter
400 mm MAX
Weight accuracy
± 0.2 g
Dosing method
Volumetric dosing screw
Motorization
Servo motor-driven movements
Automation
PC-based machinery

Operating Characteristics


Automation level
Servo motor-driven movements
Changeover time
Simple format change
Batch vs. continuous operation
Inline Continuous
Energy efficiency
Motorization avoids power waste
Cleaning method
Easy unit extraction for cleaning
Compact footprint
Yes
Production volume flexibility
Low-medium to medium-high production
Sustainability
Handles compostable and recyclable materials
Weight accuracy during dosing
± 0.2 g

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Product type compatibility
Coffee,herbal,and instant products
Filling purpose
Capsule filling and sealing

Physical Characteristics


Compact footprint
Compact linear footprint for more space in production area
Control panel type
Intuitive HMI
Discharge method
Exit pick,place

Custom Options


Control panel type
PC-based machinery
Modular design
Enables greater customization opportunities
Customization Options
Integrated vertical packaging units,nitrogen injection device,check-weigher,vision system
Footprint
Compact linear footprint
Lane configuration
Up to 4 lanes
