Cannabis distillation system for high-potency extracts
Ensure your extracts achieve up to 99% cannabinoid purity with precise continuous distillation, seamlessly integrating into your production line for efficient high-volume output.
Separates and Purifies Cannabinoid Distillates

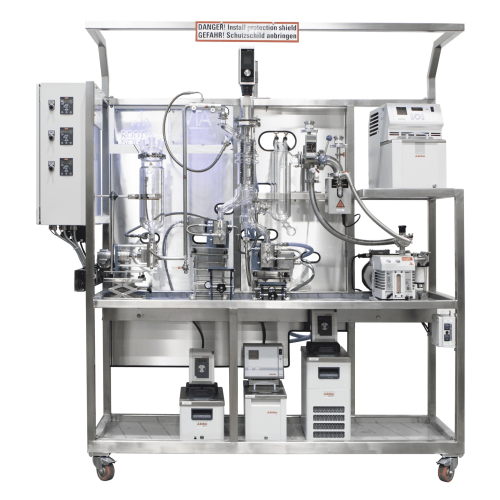

The VKL 75 Wiped-Film Short Path Distillation System from Root Sciences is an expertly engineered solution for cannabis and hemp distillation. Utilizing a high-efficiency wiped-film evaporation technology, it continuously separates and purifies cannabinoids, producing up to 3.5 liters of distillate per hour. Its fully jacketed system negates the need for external heating devices, while integrated pumps enable precise control for true continuous operation.
Designed for applications ranging from cannabis oil and THC distillate to tinctures and isolates, the VKL 75 supports high-speed, continuous processes crucial for extraction laboratories and processing facilities. Engineered with borosilicate glass and 316 stainless steel, the system ensures chemical compatibility and durability. The equipped GMP package includes necessary compliance features like FAT, SAT, IQ, and OQ, meeting international quality standards.
Operators benefit from high visibility processing through its transparent design, while expert on-site training supports seamless integration into existing production lines. The VKL 75 also offers options for customization, including various feed vessels and connection equipment, ensuring adaptability to specific production requirements.
Benefits
- Ensures high-purity distillates with continuous operation, reducing overall production time.
- Enhances product quality with observation capability through transparent glass, allowing for real-time process adjustments.
- Reduces setup complexity with a fully jacketed system, eliminating the need for additional heating equipment.
- Supports GMP compliance, streamlining regulatory approval processes and maintaining international quality standards.
- Offers quick adaptation to specific processes with customizable configurations, meeting diverse production requirements.
- Applications
- Distillates,Cannabis,Hemp,Cannabinoids
- End products
- Topical cream bases,Cannabis oil,Cannabinoid concentrates,Tinctures,Cbd distillate,Isolates,Hemp oil,Thc distillate,Edible product infusions,Vape cartridge fills
- Steps before
- Crude Oil Preparation,Cannabis Extraction,Hemp Extraction,Preheating,Material Loading
- Steps after
- Purification,THC Remediation,Solvent Recovery,Decarboxylation,Distillate Packaging
- Input ingredients
- cannabis crude oil,hemp crude oil
- Output ingredients
- high-potency distillate,finished distillate,cannabinoids
- Market info
- Root Sciences is known for providing high-quality extraction, distillation, and other processing equipment for the cannabis and hemp industries, offering solutions for creating purified concentrates and extracts, emphasizing efficiency and innovation.
- Throughput Capability
- Typically 1.3 L/h,Maximum 3.5 L/h
- Evaporator Surface Area
- 0.05 m²
- Power Requirements
- 1Φ 230 V,60 Hz
- Stages
- Single
- Dimensions
- 7.4’ x 2.0’ x 6.0’’
- Materials Used
- 316 stainless steel,borosilicate glass,graphite wiper blocks
- Options
- 5 L Feed vessel,Immersion chiller for cold trap,Separate heater for residue discharge arm,Heated transfer hose
- Maximum Feed Rate
- 3.5 L/h
- Typical Throughput
- 1.3 L/h
- Throughput Capability
- 1.3 L/h (typical),3.5 L/h (maximum)
- Feed Rate Control
- Continuous with integrated pumps
- Continuous Feed
- True continuous operation
- Jacketed System
- Fully jacketed with heating from start to finish
- Automation Level
- Manual/PLC level control
- Cleaning Method
- Manual
- Corrosive resistance (e.g. acids)
- 316 stainless steel
- Thermal resistance
- High due to borosilicate glass
- Chemical resistance
- Borosilicate glass
- Heat Sensitivity
- Yes,fully jacketed system
- Viscosity Handling
- 0.05 m² evaporator surface for efficient heat exchange
- Container Type
- Borosilicate glass system for visibility
- Scale of Production
- Designed for cannabis,hemp crude oil processing
- GMP Compliance
- Optional GMP package includes FAT,SAT,IQ,OQ
- UL Certification
- UL ready (all necessary individual components are UL listed)
- Machine footprint
- 7.4’ x 2.0’ x 6.0’
- Material
- 316 stainless steel,borosilicate glass,graphite wiper blocks
- Evaporator Surface Area
- 0.05 m²
- Control panel type
- Transparent glass system
- Feed/Discharge method
- Continuous feed with integrated pumps
- Optional Features
- 5 L Feed vessel,Immersion chiller for cold trap,Separate heater for residue discharge arm,Heated transfer hose
- GMP Package
- Optional GMP package includes FAT,SAT,IQ,OQ,customizable according to URS
- Heated Transfer Hose
- Available to connect multiple units in series
- Feed Vessel
- 5 L Feed vessel option
- Immersion Chiller
- Available for cold trap
- Separate Heater
- For residue discharge arm
