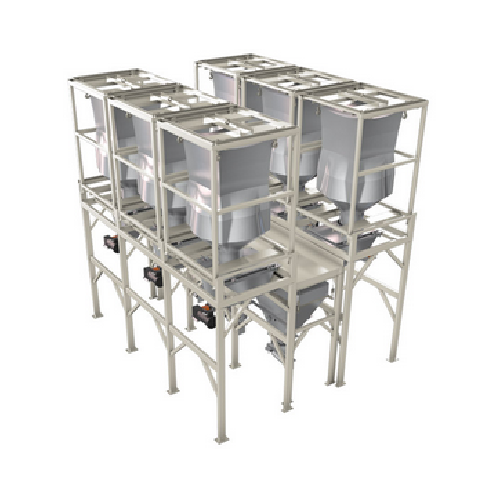

Bulk bag weighing system for batching operations

Streamline your batching process by accurately weighing minor ingredients directly from bulk storage bags, reducing manual handling and increasing efficiency.

Weighs and Batches Minor Ingredients Accurately

The Bulk Bag MinorScale from CPM is an essential weighing system designed to streamline batching processes across various industries including animal feed, oilseed processing, and biomass production. This system stands out with its dual configurations—traditional and linear—that ensure precise ingredient measurement, crucial for maintaining product quality in complex batch operations. With a handling capability of 2 to 6 bulk bags and a refined scale display resolution from 0.1 to 0.5 pounds, it offers adaptability for diverse operational conditions. Optimized for environments requiring meticulous control over batch ingredients, it eliminates the ergonomic challenge of manual handling of heavy bags, enhancing both safety and efficiency. Integrated features like remote speed control, dust collection hoods, and optional bin vibrators further contribute to its seamless integration into existing production lines. Its robust construction supports a range of operations, from batch to continuous high-speed processing, demonstrating both reliability and flexibility.

Benefits

  • Enhances batching precision, ensuring quality consistency across production runs.
  • Increases operational safety by removing the need for manual handling of heavy ingredient bags.
  • Streamlines integration into production lines with flexible configuration options.
  • Minimizes ingredient waste through accurate scale resolution and control.
  • Improves production efficiency and speed, accommodating rapid operational demands.

General


Applications
Aquaculture,Animal feed,Ethanol,Pet food,Hemp,Food industry,Oilseed processing,Hops,Rendering,Biomass
End products
Dried distillers grains with solubles (ddgs) for ethanol production,Wood pellets for biomass energy,Cake mix ingredients for food production,Premix vitamins for poultry feed,Fish meal for aquaculture nutrition,Hops pellets for brewing,Meat and bone meal for animal rendering,Hemp seed flour,Soybean meal for oil extraction
Steps before
Grinding,Mixing,Ingredient Preparation,Batching Setup
Steps after
Batching,Mixing,Packaging,Distribution
Input ingredients
minor ingredients,bulk storage bags,50-lb paper bags,100-lb paper bags
Output ingredients
batched ingredients,weighed materials
Market info
CPM is known for manufacturing high-quality process equipment and technology solutions for the industrial and agricultural sectors, specializing in particle size reduction, conditioning, and pelleting solutions with a strong reputation for reliability and innovation.

Technical Specifications


System Configuration
Traditional / Linear
Number of Ingredients
2 to 6 bulk bags
Average Draw Weight
1 to 10 pounds
Bin Capacity
6,8,12 cu/ft bins or 50 cu/ft bags
Scale Display Resolution
.1 to .5 pounds (based on environment)
Speed Control
Direct,Remote I/O or Integrated

Operating Characteristics


Working mechanism
Traditional and linear configurations
Batch vs. continuous operation
Batch operation
Automation level
Manual / PLC
Ingredient handling
Supports bulk storage bags
Weight capacity
1 to 10 pounds
Bin capacity
6,8,12 cu/ft bins or 50 cu/ft bags
Scale display resolution
.1 to .5 pounds

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Compact
Configuration type
Traditional / Linear
Support structure
Removable rack frames
Bin capacity
6,8,12 cu/ft bins or 50 cu/ft bags
Scale display resolution
.1 to .5 pounds

Custom Options


Bin capacity options
6,8,12 cu/ft bins or 50 cu/ft bags
Configuration type
Traditional / Linear
Frame type
Freestanding or drop-through
Lid features
Refill bin lids with 6-inch flange
Control options
Direct,remote I/O or integrated speed control
Additional features
Bin level sensors,Bin vibrators,Lid lock systems,Dust collection hoods
