Bottomless conveyor for 90° bottle transfer and coding
Efficiently connect disparate production systems in your bottling line with a bottomless conveyor solution, designed for seamless 90° transfers and precise container bottom coding, ensuring optimal performance without added maintenance.
Transfers and Codes Containers in Production Lines

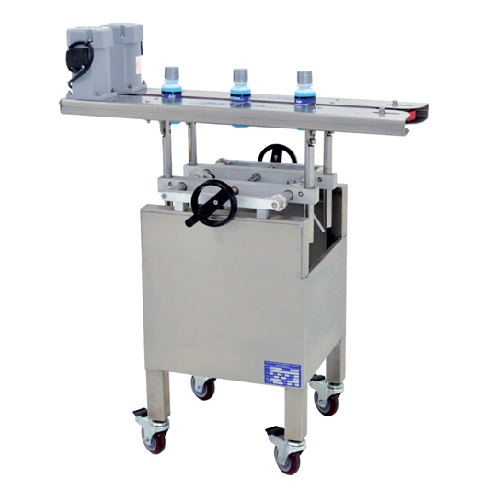

The Accuveyor 90 Bottomless from Accutek Packaging is engineered to streamline high-speed container transport and coding operations within your production line. Utilizing gripper belt technology, this conveyor ensures seamless 90-degree transfers while providing unobstructed access for bottom coding, essential for industries such as food and beverage, pharmaceuticals, and cosmetics. Its direct-drive, brushless motors minimize maintenance by eliminating complex gears or pulleys, and frequency control ensures synchronized belt speeds for accurate and legible coding. Capable of accommodating containers from 1 mm to over 8 inches in diameter, the Accuveyor 90 Bottomless is ideal for products like bottled water, shampoo bottles, vitamin capsules, and more. With features like height adjustability, user-friendly controls, and easy bottle size adjustments, this conveyor integrates effortlessly into existing material handling systems, delivering efficiency and reliability in demanding production environments.
Benefits
- Enhances production efficiency with seamless 90-degree transfers and bottom coding.
- Minimizes maintenance costs through direct-drive, brushless motor systems.
- Increases versatility, handling containers from 1 mm to over 8 inches in diameter.
- Optimizes coding accuracy with frequency-controlled belt speed synchronization.
- Enables easy integration into existing lines with adjustable height and user-friendly controls.
- Applications
- Chemicals,Beverages,Personal care products,Detergents,Oils,Food products,Pharmaceuticals
- End products
- Bottled water,Liquid laundry detergent,Cooking oil bottles,Tomato sauce jars,Shampoo bottles,Cleaning solvents,Vitamin capsules
- Steps before
- Bottle Unscrambling,Container Feeding
- Steps after
- Bottom Coding,Labeling,Capping,Packaging
- Input ingredients
- containers,bottles
- Output ingredients
- containers coded with inkjet or laser,bottles with bottom coding
- Market info
- Accutek is known for manufacturing high-quality engineered-to-order (ETO) equipment, specializing in custom automation and packaging solutions. They are reputed for their innovation, reliability, and ability to meet complex industrial needs.
- Variable Speed
- Adjustable
- Drive Motor
- 1/2 HP
- Construction Material
- Stainless Steel
- Height Range
- 28-48” (711-1219 mm)
- Belt Length
- 36″
- Electrical
- 110 VAC – 5 AMP (220 VAC optional)
- Power Option
- Available in 220v
- Weight
- 165 lbs. (74.84 kg)
- Gripper Belt Adjustment
- Independent
- Container Compatibility
- 1mm to over 8″ diameter
- Belt Adjustment
- Angle adjustment for tapered bottles
- Working mechanism
- 90° Transfer model
- Integrated steps
- Bottom coding during transfer
- Height adjustment
- Level or Angled
- Changeover time
- Easy bottle size adjustment with hand wheel
- Automation level
- User-friendly control box
- Corrosive resistance (e.g. acids)
- Stainless Steel Construction
- Abrasion resistance
- Forgiving Long Life Gripping Belts
- Cleanability
- Stainless Steel Components
- Container type
- Plastic,glass
- Machine Footprint
- Length
- Weight
- 165 lbs. (74.84 kg)
- Construction Material
- Stainless Steel
- Height Adjustable
- Yes (Level or Angled)
- Discharge Method
- 90° Transfer to another conveyor
- Control Panel Type
- User Friendly Control Box
- Gripping Belts
- 36" Long side gripper belts
- Power Specifications
- 110 VAC – 5 AMP (220 VAC optional)
- Bottle Size Adjustment
- Easy adjustment with hand wheel
- Speed Adjustment
- Variable Speed
- Height Adjustment
- Easily Adjustable Height
- Angle Adjustment
- Level or Angled
- Control Box
- User Friendly
- Bottle Size Adjustment
- 1mm to over 8"
- Power Option
- 110 VAC / 220 VAC
- Extended Length Models
- Available
- Gripper Belts
- Double Wide
- Material
- Stainless Steel Construction
