Bottle induction seal integrity inspection

Ensure uncompromised product quality by accurately inspecting and verifying the integrity of induction seals on bottled liquids, minimizing contamination risks and safeguarding potency in high-speed packaging lines.

Detects and Rejects Defective Bottle Seals

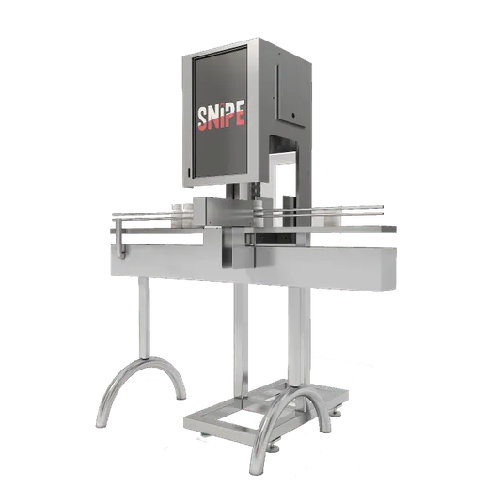

The Snipe from Spookfish Innovations is a cutting-edge induction seal integrity inspection system designed for seamless integration into existing bottle packaging lines. Utilizing high-resolution thermal imaging technology, Snipe excels in identifying potential leak points in bottle seals, crucial for maintaining the integrity and safety of pharmaceuticals, nutraceuticals, and chemical liquids. Capable of inspecting up to 300 bottles per minute, it is compatible with various bottle types, including HDPE, LDPE, and glass, and suits a range of cap types such as screw, CRC, and press-on. The system’s automated calibration and online pneumatic rejection mechanism ensure high precision and efficiency. Snipe’s real-time and archived data analysis capabilities facilitate process optimization, while its intuitive touchscreen interface enhances operability. Built for durability, Snipe supports compliance with industry standards, offering a reliable solution for maintaining product quality in high-demand production environments.

Benefits

  • Ensures product safety by preventing contamination with accurate defect detection.
  • Increases production efficiency with high-speed inspection of up to 300 bottles per minute.
  • Reduces waste and rework costs through automated rejection of defective products.
  • Enhances process control with real-time data analysis and remote operation capabilities.
  • Easily adapts to diverse production needs with customizable configurations for various bottle and cap types.

General


Applications
Chemical liquids,Liquid formulations,Nutraceuticals,Bottled products,Pharmaceuticals
End products
Personal care liquid bottles,Pharmaceutical tablets,Vitamin supplement bottles,Chemical solvent containers,Liquid cough syrup bottles,Liquid pharmaceuticals,Nutritional supplement liquids
Steps before
Filling,Capping
Steps after
Packing,Labeling
Input ingredients
bottle packaging line,bottle with cap,sealed bottles,heat sealed packaging,bottle variants
Output ingredients
inspected bottles,rejected defective products,approved sealed bottles
Market info

Technical Specifications


Inspection speed
Up to 300 bottles per minute
Bottle type compatibility
HDPE,LDPE,Glass
Cap type compatibility
Screw,CRC,Press-on
Bottle diameter range
20mm - 150mm
Bottle height range
20mm - 250mm
Cap diameter range
20mm - 80mm
Thermal inspection
High resolution
Rejection system
Pneumatic
User interface
Intuitive touchscreen HMI display

Operating Characteristics


Detection mechanism
High resolution thermal inspection
System calibration
Automated system calibration
Product rejection method
Pneumatic rejection system
Bottle compatibility
Various bottle types and cap types
Real-time monitoring
Real-time/Archived statistics and analysis
Remote operation capability
Available
Versatility
Configurable for bottle variants of any height

Material Compatibility


Plastic type compatibility
HDPE,LDPE
Container type compatibility
Glass
Cap type compatibility
Screw,CRC,Press-on

Physical Characteristics


Compact footprint
Compact and accessible
Control panel type
Intuitive touchscreen HMI display

Custom Options


Control panel type
Intuitive touchscreen HMI display
Integration possibilities
Online retrofit for existing bottle packaging lines
Bottle height adaptability
Configurable for bottle variants of any height
Bottle type compatibility
HDPE,LDPE,Glass,etc.
Cap type compatibility
Screw,CRC,Press-on,etc.
