Blister packaging for solid dosage forms

Optimize your packaging line with high-speed, continuous blister packaging that ensures superior sealing and precise inspection, ideal for handling a wide range of pharmaceutical and nutraceutical products like tablets, capsules, and vials.

Packages and Seals Pharmaceutical Dosage Forms

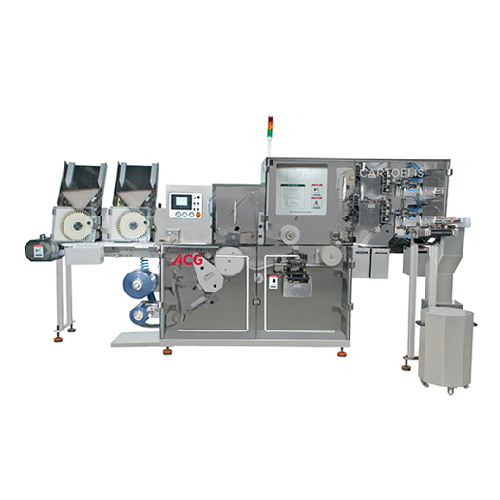

The CARTOBLIS from ACG is a cutting-edge rotary blister packaging machine engineered to streamline the packaging of pharmaceutical and nutraceutical dosage forms like tablets, capsules, ampoules, vials, and syringes. Utilizing vacuum-based rotary thermoforming technology with a unique single-drum system, it delivers superior blister quality and minimizes foil wastage. The machine ensures a continuous, high-speed process with an output of up to 6.5 m/min, integrating seamlessly with cartoning systems for full automation of the blister-cartoning operation. Compatible with forming materials like PVC and Triplex, the CARTOBLIS offers flexibility in packaging configurations, allowing deep cavities up to 28 mm. It meets GMP standards, making it an ideal solution for regulated industries, and features a user-friendly design that facilitates quick changeovers and efficient maintenance.

Benefits

  • Enhances production efficiency by integrating blister and cartoning processes, reducing handling time.
  • Minimizes material costs with edge-to-edge punching, cutting foil wastage significantly.
  • Achieves high packaging quality using fewer format parts, ensuring uniformity and precision.
  • Adapts to diverse product forms, allowing flexible packaging for solids and liquids.
  • Streamlines operations with continuous feed and automated blister-cartoning, lowering labor requirements.

General


Applications
Syringes,Pharmaceutical tablets,Soft gelatine capsules,Vials,Ampoules,Hard capsules
End products
Ibuprofen tablets,Vitamin d capsules,Heparin syringes,Vaccine vials,Multivitamin soft gel capsules,Paracetamol tablets,Insulin ampoules,Omega-3 soft gel capsules
Steps before
Capsule check-weighing,Tablet compression,Encapsulation
Steps after
Cartoning,Vision inspection
Input ingredients
tablets,hard capsules,soft gelatine capsules,ampoules,vials,syringes,PVC,PVC/PVdC,Triplex (PVC/PE/PVdC)
Output ingredients
blister packs,packaged tablets,packaged capsules,packaged ampoules,packaged vials,packaged syringes
Market info
ACG World is known for manufacturing capsules and capsule filling machines, providing integrated pharmaceutical solutions with a strong reputation for innovation, quality, and comprehensive service offerings in the pharmaceutical manufacturing industry.

Technical Specifications


Output
Up to 6.5 m/min (Thermoforming)
Forming depth
Up to 12 mm (Thermoforming)
Format area
200 mm x 100 mm
Forming materials
PVC,PVC/PVdC,Triplex (PVC/PE/PVdC)
Lidding materials
Push-through foil,child-resistant foil,peelable (paper)
Vacuum-based technology
Yes
Automation
Integration with carton packaging machine

Operating Characteristics


Automation level
Fully automated / Semi-automated
Batch vs. continuous operation
Continuous
Changeover time
Fast
CIP/SIP
Manual / Automated
Cleaning method
CIP
Energy efficiency
High
Integration capability
Seamless integration with carton packaging machines
Air incorporation control
Vacuum-based rotary thermoforming

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Blister packaging suitability
Tablets / Hard Capsules / Soft Gelatine Capsules
Deep cavity packing capability
Up to 28 mm

Physical Characteristics


Machine footprint
Compact
Drum technology
Single-drum
Forming depth
Up to 12 mm
Format area
200 mm x 100 mm
Punching method
Fast and Edge-to-edge
Cavity depth
Up to 28 mm
Integration capability
Online cartoner
Feed/Discharge method
Continuous feed

Custom Options


Integration with carton packaging machine
Yes
Single-drum technology
Exclusive
