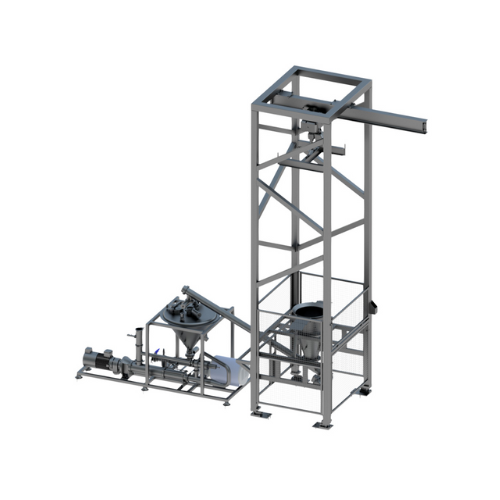

Big bag unloading station for solids handling

Optimize bulk solid ingredient handling with this station, designed to streamline the transfer, blending, and precise dosing of powders into liquid mediums, reducing manual handling and enhancing consistency in high-demand production lines.

Processes and Blends Bulk Solids Efficiently

The Big Bag Unloading Station with Integrated Blender from INOXPA is engineered for optimal handling and blending of bulk solids. It employs a block and tackle system to manage Big Bags, facilitating the transfer of raw materials into a table blender with components like rotary valves and endless screws for seamless dosing. This system is particularly suited for the dairy and beverage industries, efficiently integrating into batch and continuous operations. Utilize its capabilities to produce end-products such as infant formula, flavored yogurts, and sports drinks with precision. With a robust structure composed of AISI 304 and 316 stainless steel, the equipment ensures durability and ease of maintenance. The inclusion of automated butterfly valves and a centrifugal pump enhances operational efficiency while minimizing energy use. Experience efficient handling and mixing with material options that uphold stringent hygiene standards, ensuring your production line meets industry requirements.

Benefits

  • Enhances production efficiency by streamlining bulk solid handling and blending.
  • Reduces manual labor with an ergonomic design and automated components.
  • Ensures consistent product quality with precise dosing and mixing capabilities.
  • Offers flexibility with batch and continuous operation modes.
  • Maintains high hygiene standards with stainless steel construction and easy maintenance.

General


Applications
Powdered milk,Sugar solutions,Syrups,Salt,Beverage products,Dairy products
End products
Flavored milk drinks,Powdered coffee creamer,Sweetened condensed milk,Infant formula,Flavored yogurt,Granulated sugar,Sports drinks,Ice cream base mix,High fructose corn syrup,Baking powder packets,Electrolyte drinks
Steps before
Purification,Drying,Emulsification,Grinding
Steps after
Mixing,Dissolving,Recirculation,Solution Quality Control
Input ingredients
sugar,powdered milk,salt,solids,BigBags,raw material,solid food products,solid product storage,circulating liquid medium
Output ingredients
uniform solution,sugar solutions,syrups,dissolved solids,mixed product,blended solution
Market info
INOXPA is known for its expertise in manufacturing stainless steel components and equipment, particularly for the food, dairy, cosmetic, and pharmaceutical industries. They are reputed for high-quality, hygienic, and reliable processing solutions.

Technical Specifications


Hoist Capacity
2000 kg
Structure Dimensions
1650 x 1350 x 5235 mm
Structure Material
Inox 304 and 316
Automation
Automatic butterfly valve for hopper
Pumping System
Centrifugal pump
Mixing System
In-line mixer
Seal Type
Double mechanical seal
Control System
Stainless steel electric panel
Material Contact
AISI 316
Secondary Materials
AISI 304
Guard Material
Aluminium
Seals Material
TR08 FDA cellular silicone / EPDM

Operating Characteristics


Working mechanism
Venturi and pump aspiration
Integrated steps
Big Bag unloading,blending,recirculating
Batch vs. continuous operation
Batch / In-line
CIP/SIP
CIP compatible
Automation level
PLC controlled
Cleaning method
CIP

Material Compatibility


Corrosive resistance (e.g. acids)
AISI 316
Biological compatibility
FDA compliant
Cleanability
CIP compatible

Product type Characteristics


Solids feeding
Sugar,powdered milk,salt


FDA materials
TR08 FDA cellular silicone / EPDM

Physical Characteristics


Machine footprint
1650 x 1350 x 5235 mm
Hopper material
AISI 304/316
Structure material
Inox 304,galvanised cast iron
Hoist capacity
2000 kg
Guard material
Aluminium
Compact footprint
Yes
Discharge method
Venturi system

Custom Options


Structure size
1650 x 1350 x 5235 mm
Hoist capacity
2000 kg
Control system
Stainless steel electric panel
Anti-caking system
Aluminium protection elements
Options
Load cells,ºBrix meter,electric vibrator,diaphragm valve
