Ball former for bubble-gum and soft candy production

Achieve precise ball forming for bubble gum and soft candies with customizable cycles, ensuring high-quality production and efficiency while maximizing center-filling capabilities.

Forms and Cuts Center-Filled Confectionery Products

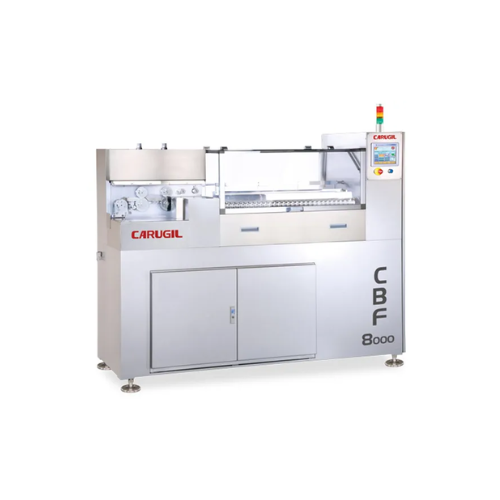

The CBF-8000 from Carugil is a high-speed continuous ball former designed to meet the demanding needs of confectionery manufacturers, food producers, and pharmaceutical manufacturers. This machine excels in forming and cutting precise, hollow, solid, and center-filled confectionery products, including bubble-gum balls and chewy fruit candies.

The CBF-8000 operates with a sophisticated servo-driven mechanism, allowing for fully customizable forming cycles and quick changeovers in under 10 minutes. Its servo-driven rotary knife ensures a gentle, precise cut for center-filled ropes, minimizing leakage even with high filling percentages over 20%. The CBF-8000’s dual-stage forming system, featuring 1,000 mm long rollers, handles up to 6,500 pieces per minute, significantly boosting production capacity while maintaining excellent product quality.

Ideal for the confectionery and pharmaceutical industries, the CBF-8000 integrates seamlessly into existing production lines, supported by an intuitive touch screen for easy parameter adjustments. It caters to processing both solid and liquid product types, enabling the manufacture of a variety of shapes as per production needs. The machine’s robust construction and modular engineering allow for further customization, with engineering support available for specific requirements.

Benefits

  • Enhances production capacity with up to 6,500 pieces per minute, reducing operational bottlenecks.
  • Minimizes material waste and leakage in high center-filled candies with precise servo-driven cutting.
  • Speeds up product changeovers under 10 minutes, improving line flexibility and productivity.
  • Customizable forming processes ensure optimal product consistency and quality for various shapes and fillings.
  • Integrates seamlessly with existing lines, streamlining operations across confectionery and pharmaceutical applications.

General


Applications
Food,Bubble-gum,Fruit pastes,Confectionery,Toffees,Sweets,Soft candies,Pharmaceutical
End products
Bubble-gum balls,Chewing gum with liquid centers,Herbal lozenges,Center-filled soft candies,Caramel toffees,Fruit-flavored pastes,Chewy fruit candies
Steps before
Mixing,Extruding,Preforming
Steps after
Cooling,Sugar Sanding,Wrapping,Labeling,Coating
Input ingredients
bubble gum base,soft candy base,toffee base,fruit paste,center-filled rope,semi-liquid center-filling
Output ingredients
hollow ball products,solid ball products,center-filled ball products,cylindrical products,high center-filling content pieces
Market info
Carugil is known for its expertise in designing and manufacturing industrial engineered-to-order equipment, particularly for the confectionery and food packaging industries, providing customized solutions that meet specific client needs with high-quality standards and innovative technology.

Technical Specifications


Production Speed
Up to 6,500 pieces/minute for CBF-8000
Forming Rollers Length
1,000 mm
Rope Speed
80 meters/minute
Automation
Servo-driven,independent servo-motors
Changeover Time
Less than 10 minutes
Filling Percentage
Up to 20% filling content
Cutting System
Rotary servo-driven knife

Operating Characteristics


Working mechanism
Servo-driven movements
Automation level
Servo-motor controlled
Changeover time
Less than 10 minutes
Batch vs. continuous operation
Continuous
Customization capability
Fully customizable forming cycle
Center-filling capability
Up to 20% filling
Forming cycle configurability
Independent parameters through touch screen
Cutting precision
Servo-driven rotary knife

Material Compatibility


Cleanability
Yes
Abrasion resistance
High
Biological compatibility
Food-safe
Corrosive resistance (e.g. acids)
Yes
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Product shapes
Hollow,solid,center-filled
Product types
Bubble-gum,soft candy,toffees,fruit pastes

Physical Characteristics


Footprint
Compact for space-saving
Forming Rollers Length
1,000 mm per set
Number of Forming Stages
Up to 2 stages (double-sided model)
Machine Type
Continuous Ball Former
Control Panel Type
Touch screen interface
Discharge Method
Rotary servo-driven knife

Custom Options


Control panel type
Touch screen
Forming cycle customization
Completely customizable
Recipe storage
Memory for recipes
