Axial roller grader for gentle size grading

Optimize your grading process with this precision axial roller grader, designed for gentle handling and precise sizing of varied solid food products, ensuring high-speed efficiency and product integrity in continuous operations.

Grades and Sorts Solid Food Products

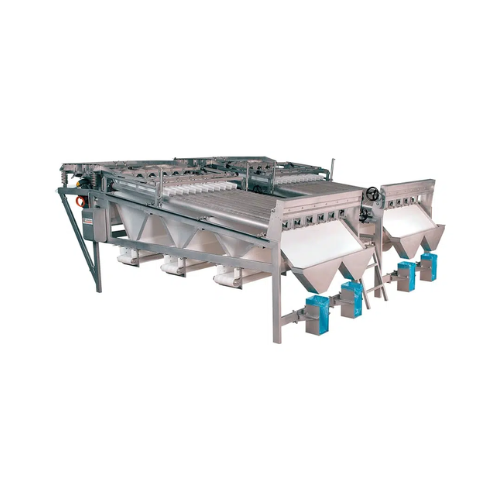

The Axial Roller Grader from Cabinplant is engineered for precision in size grading across a wide array of food products. This equipment stands out with its gentle handling mechanism, employing rotating rollers that tilt and vibrate to efficiently grade and sort products such as shrimp, mussels, herring, and various vegetables. It operates continuously at high speed, making it an ideal choice for fish, seafood, meat, and vegetable processing industries. With the capability to handle up to 5 gradings simultaneously, it ensures optimal throughput and accuracy. Designed for seamless integration, it features food-grade materials that streamline maintenance and compliance with hygienic standards. The system’s user-friendly adjustments allow flexibility in grading size, ensuring it meets diverse processing requirements across industries.

Benefits

  • Ensures gentle product handling to minimize damage and maintain product integrity.
  • Enhances grading accuracy with adjustable roller configurations for diverse product specifications.
  • Increases operational efficiency by supporting continuous, high-speed processing.
  • Reduces water consumption, contributing to cost savings and sustainable operations.
  • Simplifies cleaning and maintenance with a hygienic, easy-to-clean design.

General


Applications
Seafood,Dairy food,Berries,Convenience food,Pet food,Meat,Vegetables,Poultry,Fish
End products
Iqf mussels,Frozen shrimp,Raw mussels,Filleted herring,Mackerel fillets,Whole herring,Peeled shrimp,Canned sardines,Cold-water shrimp,Sprats,Warm-water shrimp,Shellfish mix,Raw or iqf shrimp
Steps before
Purification,Washing,Sorting
Steps after
Packaging,Freezing,Distribution
Input ingredients
shellfish,warm water shrimps,cold water shrimps,raw shrimps,IQF shrimps,mussels,herring,mackerel,sardines,sprats,various vegetables
Output ingredients
size-graded shellfish,size-graded shrimps,size-graded mussels,size-graded herring,size-graded mackerel,size-graded sardines,size-graded sprats,size-graded vegetables
Market info
Cabinplant is known for designing and manufacturing tailored processing solutions for the food industry, specializing in fish, seafood, fruits, and vegetables. They are reputed for their innovative technology and efficiency in delivering customer-specific engineered-to-order equipment.

Technical Specifications


Grading accuracy
Product-specific
Grading capacity
Up to 5 gradings
Capacity per lane for shrimps (HO-SO)
400 kg
Capacity per lane for shrimps (frozen/peeled)
200 kg
Capacity per lane for sardines
1500 kg
Capacity per lane for herring
3000 kg
Capacity per lane for mackerel
1500-3000 kg
Roller length utilization
Maximized with infeed vibrator
Water consumption
Low

Operating Characteristics


Grading accuracy
Product specific
Inclination angle
Adjustable
Automation level
PLC-controlled
Batch vs. continuous operation
Inline Continuous
Cleaning method
Manual
Changeover time
Quick adjustment
Energy efficiency
Low water consumption

Material Compatibility


Biological compatibility
Food-grade materials
Cleanability
Easy to clean
Corrosive resistance (e.g. acids)
High

Product type Characteristics


Capacity
Product-specific
Product Type
Fish,Seafood,Vegetables

Physical Characteristics


Machine footprint (Length x Width x Height)
5400 mm x 3500 mm x Height not specified
Feed method
Infeed vibrator
Discharge method
Not specified
Grading levels
Up to 5 gradings
Inclination angle of rollers
Product specific
Rotation direction
Rollers rotate towards each other
Water consumption
Low
Material type
Food-grade materials
Hygienic design
Easy to clean

Custom Options


Inclination angle adjustment
Yes
Roller length utilization
Maximized with infeed vibrator
Grading size adjustability
Up to 5 gradings
Water spraying option
Continuous for fresh products
Roller rotation control
Rotating towards each other
