Automatic tube filler for multi-color coextruded products
Achieve precise dual- or tri-color product designs with exceptional co-extrusion consistency, seamlessly integrating into your medium-volume production line for advanced filling and sealing of both metal and plastic tubes.
Fills and Closes Co-extruded Tubes

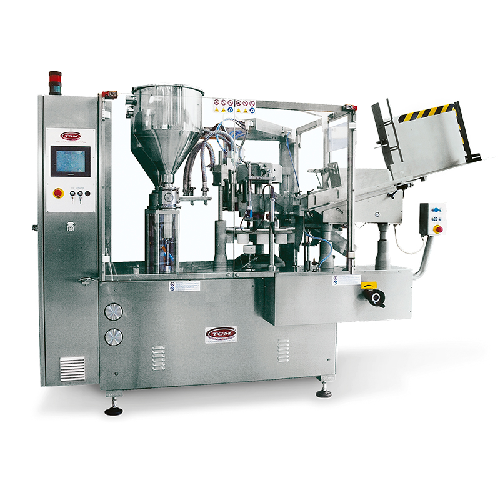

The S423 from TGM is an automatic tube filling machine designed to handle co-extruded, multicolored products with precision. It specializes in filling and closing both metal and plastic tubes, accommodating medium-volume production runs with an excellent throughput of up to 4600 tubes per hour. Ideal for cosmetics and personal care, it effectively produces striped toothpaste, dual-action hair gels, and multicolor pharmaceutical ointments. The S423 integrates seamlessly into your production line, boasting PLC control and high efficiency for reduced operational costs. Its versatility includes filling oval tubes, and optional fittings allow seamless transition between different tube types. Constructed with durable materials, it supports CIP for easy maintenance and complies with industry standards, ensuring reliability and quality in every batch. Customization and engineering support are available to fit specialized needs and enhance production adaptability.
Benefits
- Enhances product variety with precise co-extrusion of multicolored tubes.
- Increases efficiency with a capacity of up to 4600 tubes per hour.
- Reduces operational costs through automated PLC-controlled functions.
- Offers versatility by filling both metal and plastic tubes, including oval shapes.
- Simplifies maintenance and ensures quality with CIP and compliance to industry standards.
- Applications
- Skincare,Haircare,Personal care products,Gels,Toothpaste,Cosmetics,Ointments,Creams,Pharmaceuticals
- End products
- Dual-action hair gels,Multicolor pharmaceutical ointments,Striped toothpaste,Co-extruded sunscreen lotions,Color-infused ointments,Layered skincare gels,Two-tone moisturizing creams,Multicolored face creams
- Steps before
- Emulsification,Blending,Mixing
- Steps after
- Packing,Cartoning,Bundling,Quality Control
- Input ingredients
- co-extruded 2-3 color products,metal tubes,plastic tubes
- Output ingredients
- filled tubes,closed metal tubes,closed plastic tubes
- Market info
- TGM - TECNOMACHINES srl is known for manufacturing customized, engineered-to-order packaging machinery, specializing in designing and producing high-quality, efficient equipment tailored to specific customer needs in various industries.
- Capacity
- Up to 4600 Tubes/Hour
- Tube Type
- Metal and Plastic
- Tube Diameter
- 10 - 42 mm (Metal),10 - 50 mm (Plastic)
- Tube Length
- 50 - 240 mm
- Automation
- Automatic
- Co-extrusion
- 2-3 colour deep-stripes
- Tube Type Compatibility
- Oval tubes
- Automation level
- Automatic
- Batch vs. continuous operation
- Batch
- Co-extrusion capability
- 2-3 colors
- Tube material compatibility
- Metal and plastic
- Tube size range
- Diameter 10-50 mm,Length 50-240 mm
- Production speed
- Up to 4600 tubes/hour
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Machine footprint
- Compact design for medium volume production
- Tubes Accepted
- Metal and plastic tubes
- Color FIlling
- 2-3 color co-extruded products
- Tubes Size Range
- 10 - 50 mm diameter,50 - 240 mm length
- Optional Fittings
- Available for both metal and plastic tubes
- Tube Shape Option
- Oval tubes
- Production Capacity
- Up to 4600 tubes/hour
- Tube Type
- Metal / Plastic / Oval
- Product Type
- 2-3 Colour Co-Extruded Products
- Tubes Per Hour
- Up to 4600
- Tube Diameter Range
- 10-50 mm
- Tube Length Range
- 50-240 mm
- Optional Fittings
- Metal and Plastic Tube Closure
