Automatic pressure sensitive labeling system

Enhance your production line’s efficiency with a versatile labeling system that precisely applies pressure-sensitive labels to diverse container shapes, ensuring smooth integration with existing processes and adaptable with rapid changeovers for varying product sizes.

Applies Pressure Sensitive Labels Efficiently

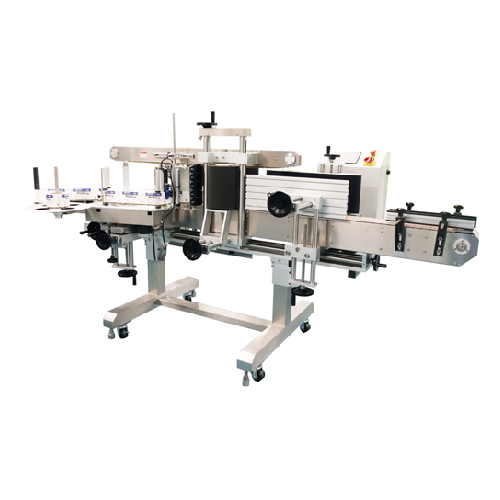

The APS 228 Pressure Sensitive Labeling Machine from Accutek Packaging is engineered to streamline your labeling process across various industries, including food, beverage, cosmetics, and pharmaceuticals. This automatic system features a stepper motor drive for precise label dispensing and a power-assisted web take-up to enhance productivity. It accommodates up to 8-inch label heights and offers versatile application options such as full wrap-around or tamp station. With its integrated auto Label Learn™ technology, setting up new labels and adjusting for different bottle sizes is intuitive and efficient.

Capable of handling cylindrical, square, and oblong containers, the APS 228 excels in applying labels to soda bottles, shampoo bottles, vitamin containers, and more. Operating up to 175 containers per minute, it integrates seamlessly into high-speed production lines. The system’s design incorporates a touch screen control system with job memory, ensuring easy operation and quick adjustments. Constructed with heavy-duty stainless steel, it supports three-shift operations and complies with sanitary standards.

Options like a hot stamp coder and bottle separator assembly are available for increased functionality, while the height-adjustable conveyor and synchronized motors guarantee precise label alignment. The APS 228 is an ideal solution for packaging companies seeking reliable, flexible, and cost-effective labeling capabilities.

Benefits

  • Increases labeling speed and efficiency, handling up to 175 containers per minute.
  • Reduces changeover time with Auto Label Learn™ technology for quick label setup.
  • Provides flexibility for diverse container shapes and sizes, enhancing production versatility.
  • Minimizes operator intervention with synchronized motor systems for consistent label application.
  • Supports three-shift operations with durable stainless-steel construction, ensuring long-term reliability.

General


Applications
Chemicals,Beverages,Household items,Personal care products,Pet care products,Nutritional supplements,Industrial liquids,Oils,Cosmetics,Cleaning products,Food products,E-cigarette liquids,Pharmaceuticals
End products
Olive oil bottles,Hot sauce bottles,Water bottles,Ketchup bottles,Syrup bottles,Paint cans,Foundation containers,Supplement bottles,Pet shampoo bottles,E-liquid bottles,Cooking oil bottles,Floor cleaner bottles,Pill bottles,Conditioner bottles,Cleaning detergent bottles,Vitamin bottles,Shampoo bottles,Chemical bottles,Lotion bottles,Soda bottles,Juice bottles
Steps before
Bottle Unscrambling,Container Sorting
Steps after
Packing,Quality Inspection,Coding,Sealing,Shrink Wrapping
Input ingredients
plastic containers,metal containers,fiber containers,glass containers,labels
Output ingredients
labeled plastic containers,labeled metal containers,labeled fiber containers,labeled glass containers
Market info
Accutek is known for manufacturing high-quality engineered-to-order (ETO) equipment, specializing in custom automation and packaging solutions. They are reputed for their innovation, reliability, and ability to meet complex industrial needs.

Technical Specifications


Label Dispense Height
Up to 8” (20.3 cm)
Label Length
0.5" – 22" (1.25 cm – 55 cm)
Label Height
0.75" – 7.75" (2 cm – 14.5 cm)
Conveyor Length
10 ft
Speed
Up to 175 CPM
Electrical Requirements
110 VAC,10AMPS (220 VAC Optional)
Machine Dimensions
Height
Machine Weight
~575 lbs. (260 kg)
Synchronized Motors
Auto speed adjust
Photo Eye Sensors
Non-contact for label gaps and containers
Automation
Automatic label setup (Auto Label Learn™)
Touch Screen Control System
With job memory
Maximum Roll Diameter
13.5″

Operating Characteristics


Automation level
Manual / PLC / SCADA
Changeover time
Quick setup with hand wheels
Cleaning method
Manual/CIP
Batch vs. continuous operation
Continuous

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container size and shape
Cylindrical,square,oblong
Label size
0.75" – 7.75" height,0.5" – 22" length
Labeling method
Pressure sensitive
Container material type
Plastic,metal,fiber,glass

Physical Characteristics


Machine footprint
Length
Weight
~575 lbs. (260 kg)
Control panel type
Touch screen control system with job memory
Discharge method
10 ft. variable speed conveyor
Frame material
Sanitary stainless steel

Custom Options


Label head configuration
Single or dual heads
Control panel type
Touch screen control system
Integration possibilities
Synchronized motors for speed adjustment
Bottle and label sizing adaptability
Easy adjusting hand wheels for quick setup
Conveyor configuration
Height adjustable conveyor
Web handling
Power assisted web take-up
Label detection
Photo Eye sensors for label gaps
Auto setup feature
Auto Label Learn™
Container holding
Top hold down belt for awkward containers
