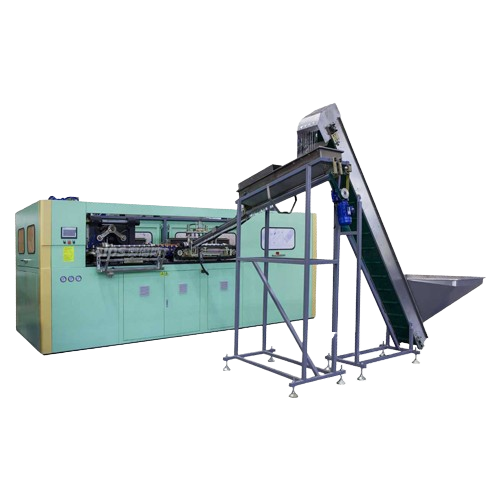

Automatic Pet bottle blowing solution

Achieve precise PET bottle molding with high-speed, automated operations that seamlessly integrate into your production line, reducing downtime and enhancing throughput capacity.

Forms and Molds PET Bottles Efficiently

The Automatic Linear Type PET Bottle Blowing Machine (FBM06) by Alps Machinery offers a comprehensive solution for high-volume container production across diverse industries, including beverages, pharmaceuticals, and cosmetics. This machine stands out with its precise stretch blow molding process, efficiently transforming PET preforms into finished bottles.

Equipped with single-cylinder clamping and infrared preform heating, it ensures uniform heat distribution and rapid cycle times, significantly reducing parting line visibility and contamination risks. Capable of producing 2,000 to 8,000 bottles per hour with various neck diameters, it supports flexible production needs, from mineral water bottles to cough syrup containers.

Alps Machinery integrates seamless automation with mechanical transfer arms, allowing fully automated loading, fetching, and bottle output processes. With a range of energy-efficient models tailored to production demands, this machine enables quick integration into existing lines. Constructed with robust materials, it offers durability and minimal maintenance needs, supporting CIP integration for efficient cleaning. Optional upgrades include advanced PLC controls and remote monitoring for enhanced operational oversight and productivity.

Benefits

  • Increases production efficiency with rapid cycle times and uniform heat distribution.
  • Enhances flexibility with adaptable output for various container sizes and neck diameters.
  • Minimizes labor costs through fully automated loading and bottle handling processes.
  • Reduces operational energy consumption with optimized infrared heating zones.
  • Simplifies maintenance with robust construction and optional CIP system integration.

General


Applications
Food,Beverages,Water,Cosmetics,Pharmaceutical products,Juice,Edible oil
End products
Face cream jars,Mineral water bottles,Vegetable oil bottles,Orange juice bottles,Ketchup bottles,Cough syrup containers,Carbonated soft drinks
Steps before
Preform Manufacturing,Preform Loading,Preform Heating
Steps after
Packaging,Labeling,Quality Inspection
Input ingredients
PET preforms,infrared ray heating
Output ingredients
PET bottles,water bottles,beverage bottles,juice bottles,oil bottles,cosmetic bottles
Market info
Alps Machine is known for specializing in the design and manufacturing of industrial engineered-to-order equipment, providing innovative solutions and reliable machinery tailored to the specific needs of industries like beverage and packaging.

Technical Specifications


Capacity
2000 ~ 8000 Bottles Per hour
Max Volume
750ml (A) / 2000ml(B)
Output Capacity (500ml)
4000~8500bph
Max. Container Diameter
Φ50mm~Φ70mm
Neck Diameter Range
Φ30mm~ Φ40mm
Max. Preform Height
<140mm
Total Power
50kw/75kw/85kw
Overall Dimensions
4.2X3.2m / 5.6X3.5m / 6.5X3.6m
Height
2.6m
Weight
7000kg / 7500kg / 8500kg

Operating Characteristics


Automation level
Automatic
Batch vs. continuous operation
Continuous
CIP/SIP
Manual cleaning
Cleaning method
Mechanical transfer arms avoid contamination

Product type Characteristics


Application
Water,Beverage,Juice,Oil,Cosmetic Bottle
Function
Reverse Osmosis

Physical Characteristics


Machine footprint
4.2X3.2m / 5.6X3.5m / 6.5X3.6m
Machine height
2.6m
Machine weight
7000kg / 7500kg / 8500kg
Mould cavities quantity
6 cavities / 8 cavities
Max container diameter
Φ50mm~Φ70mm
Neck diameter range
Φ30mm~ Φ40mm
Max. preform height
<140mm

Custom Options


Mould Clamping System
Single cylinder clamp
Preform Heating
Stale infrared ray heating system with 4 heating zones
Mould Cavities
6 cavities / 8 cavities
