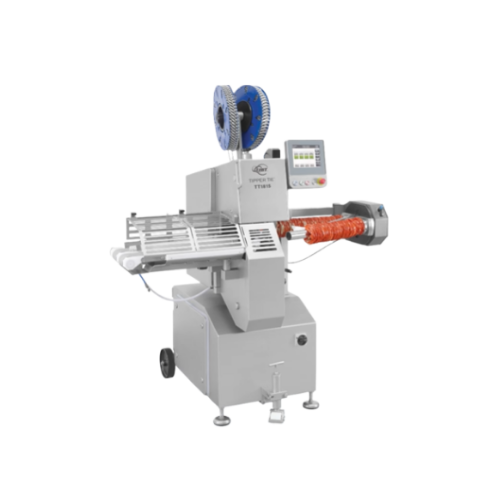

Automatic double clipper for sausage and food packaging

Streamline your packaging process with precision clipping technology that ensures airtight sealing across a variety of food and non-food products, optimizing product integrity and shelf life.

Automates Clipping and Sealing for Diverse Products

The TIPPER TIE TT1815 and TT1512 automatic double clippers revolutionize packaging with precision sealing capabilities for both food and non-food applications. These robust machines handle calibers from 20mm to 140mm, with ergonomic, stainless steel designs ensuring longevity and reliability. Ideal for sausage, vegan products, pet food, and even industrial explosives, the machines feature fast clip pitch conversions for increased flexibility. They are equipped with maintenance-free servo drives and PLC control, enabling seamless integration into existing production lines. The electronic clip closure force monitor enhances reliability by preventing errors. Easy-to-clean, hermetically sealed components resist water and dirt, simplifying maintenance and ensuring hygienic operation.

Benefits

  • Enhances product integrity by sealing without residue, reducing waste.
  • Increases operational flexibility with quick caliber adjustments.
  • Ensures reliable performance with electronic force monitoring, minimizing errors.
  • Streamlines production with high-speed, continuous operation.
  • Simplifies cleaning and maintenance, promoting hygiene with smooth, sealed surfaces.

General


Applications
Soy tofu/tempeh/seiten chubs,Sauce,Sausage,Ground fruits/vegetables,Netted fruits/vegetables,Soup,Surimi/sausage paste,Pumpable cheese,Industrial explosives chub packages,Vegan sausage,Fresh ground meats,Raw/frozen/refrigerated pet food,Fresh ground fish
End products
Imitation crab meat sticks,Tofu sausage links,Marinara sauce chubs,Tomato soup bags,Dynamite casings,Sealed fruit baskets,Ground beef patties,Bratwurst,Raw dog food rolls,Cheese sauce packets,Plant-based hot dogs,Apple sauce tubes,Netted whole chicken,Fish cake paste
Steps before
Filling,Grinding,Mixing,Injection
Steps after
Portioning,Labeling,Packaging,Freezing
Input ingredients
plastic casings,fibrous casings,collagen casings
Output ingredients
sausage,fresh ground meats,soy tofu/tempeh/seiten chubs,vegan sausage,fresh ground fish,surimi/sausage paste,raw/frozen/refrigerated pet food,pumpable cheese,soup,sauce,ground fruits/vegetables,netted fruits/vegetables,industrial explosives chub packages
Market info
JBT is known for manufacturing industrial ETO equipment, specializing in food processing and airport ground support systems. They are reputed for innovative solutions and reliable service in industries requiring sophisticated automated systems and machinery.

Technical Specifications


Clip pitch conversion
Fast
Caliber range (TT1512)
20mm to 80mm
Caliber range (TT1815)
35mm to 140mm
Material
Stainless steel
Speed
20 speeds plus continuous run
Automation
PLC control,servo drive
Clip closure force monitoring
Electronic
Cleaning
Hygienic,smooth surfaces
Valve,drive,control protection
Hermetically sealed

Operating Characteristics


Automation level
Manual / PLC
Batch vs. continuous operation
Batch / Inline Continuous
CIP/SIP
CIP 121°C / SIP 135°C
Cleaning method
CIP / Manual
Energy efficiency
0.5–2 kWh/kg moisture

Material Compatibility


Plastic compatibility
Yes
Fibrous casing compatibility
Yes
Collagen casing compatibility
Yes
Cleanability
Hygienic design

Physical Characteristics


Machine footprint
Compact ergonomic design
Machine Material
Stainless steel
Caliber capacity (TT1512)
20mm to 80mm
Caliber capacity (TT1815)
35mm to 140mm
Design Elements
Inclined surfaces for hygienic cleaning
Maneuverability
Nose wheel for easy maneuvering
Drive System
Maintenance-free servo drive
Control System
Touch screen control

Custom Options


Control panel type
Touch screen
Automation level
PLC control
Integration possibilities
Connects to conventional filling machines
Clip pitch conversion
Fast adaptability
Clip and loop end detection
Available
Swivel head options
V-turret head or parallel turret head
Outlet designs
Belt outlet,chute in various designs
Up to overspreading
130mm (TT1815)
String loop feeder model
BSZ 105-2
TagPrint system
Labeling
