Automatic bottle washer for packaging lines
Ensure your bottles are impeccably clean and ready for filling, as this solution effectively removes debris and sanitizes containers, integrating seamlessly into high-speed production lines.
Cleans and Sanitizes Bottles Efficiently

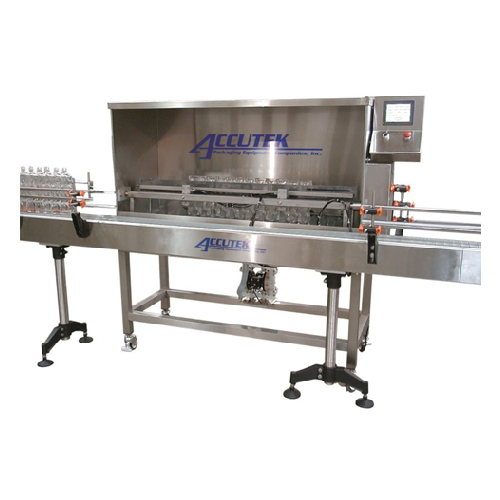

The Automatic Bottle Washer from Accutek Packaging Equipment is engineered to ensure thorough cleaning and sanitization of bottles in high-speed production environments. It uses a combination of compressed gas and various liquid solutions to remove debris and sanitize containers before filling. Suitable for beverages, pharmaceuticals, cosmetics, and chemical solutions, it handles a variety of containers, such as soda and juice bottles, medicinal syrups, and more. Operating at speeds up to 80 containers per minute, the washer integrates seamlessly with existing packaging lines and features a touch screen control package for easy operation. Constructed from heavy-duty stainless steel, it offers excellent corrosion resistance. Optional upgrades include manifold enhancements and liquid recirculation filters for improved efficiency. Designed with maintenance in mind, it includes a bottle backup sensor and casters for mobility.
Benefits
- Ensures contamination-free filling through efficient cleaning and sanitization.
- Maximizes production speed, handling up to 80 bottles per minute.
- Seamlessly integrates into existing lines, enhancing operational efficiency.
- Minimizes maintenance with robust, corrosion-resistant materials.
- Offers flexibility for varying container sizes and liquid types.
- Applications
- Beverages,Pharmaceutical liquids,Personal care products,Nutritional supplements,Juice bottling,Water bottling,Food and drink,Health and wellness products,Liquid sanitizers,Cleaning products,Chemical solutions
- End products
- Herbal extract bottles,Household cleaner bottles,Hand sanitizer bottles,Mineral water bottles,Soda bottles,Medicinal syrup bottles,Chemical reagent bottles,Liquid detergent bottles,Orange juice bottles,Juice bottles,Shampoo bottles,Vitamin water bottles
- Steps before
- Purification,Drying,Unscrambling
- Steps after
- Filling,Capping,Labeling,Packing
- Input ingredients
- compressed gas,washing liquid,sanitizing liquid,rinse liquid,bottles,containers
- Output ingredients
- clean containers,sanitized bottles,debris-free bottles
- Market info
- Accutek is known for manufacturing high-quality engineered-to-order (ETO) equipment, specializing in custom automation and packaging solutions. They are reputed for their innovation, reliability, and ability to meet complex industrial needs.
- Electrical Requirements
- 110 VAC 10 AMP
- Air Requirements
- 110 PSI @ 3 CFM
- Height
- 60 in
- Length
- 60 in
- Width
- 30.5 in
- Weight
- 800 lbs (362 kg)
- Speed
- 80 CPM
- Automation
- Touch screen control package
- Nozzle Jets
- Up to 12
- Automation level
- PLC controlled
- Changeover time
- N/A
- Cleaning method
- CIP / Manual
- Batch vs. continuous operation
- Batch / Inline Continuous
- Air incorporation control
- N/A
- Density/particle size
- 0.5–2.5 g/cm³
- Container size and shape
- Various bottle sizes
- Foaming
- Consideration of foaming detergent or sanitizer
- Viscosity
- Low to medium viscosity cleaning liquids
- Debris removal efficiency
- High debris removal efficiency
- Sanitization level
- Able to sanitize containers with liquid or gas
- Machine Footprint
- 60" L x 30.5" W x 60" H
- Weight
- 800 lbs (362 kg)
- Frame Material
- Stainless Steel
- Nozzle Jets
- Up to 12
- Recovery Basin
- Included
- Container Compatibility
- Easily adjustable for different size containers
- Control Panel Type
- Touch Screen Control Package
- Control panel type
- Touch screen control package
- Integration possibilities
- Easy integration into current packaging line
- Pump Upgrades for Rinsing
- Various options available
- Manifold upgrade for liquid rinsing
- Available
- Multi Cycle Upgrade
- With multiple manifolds
- Filter Packages for Liquid Recirculation
- Available
- Adjustability
- Easily adjustable for different size containers
