Automatic belt chamber vacuum packing for meat and cheese
Achieve seamless integration into your packaging line with a mid-speed vacuum packing solution designed for freshness and optimal presentation of perishable food products.
Vacuum Packs and Seals Perishable Foods

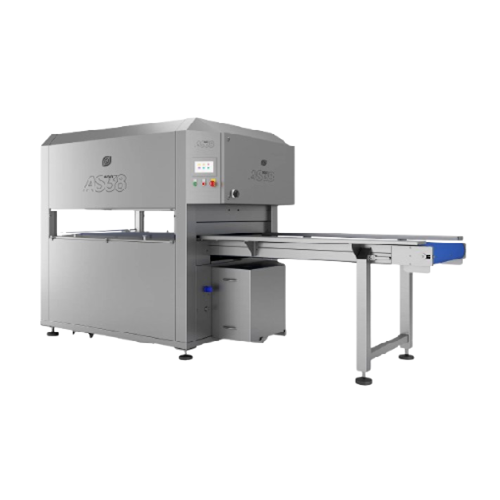

The AS38 from Saccardo is an automatic chamber belt vacuum packing machine tailored for mid-speed packaging operations. It stands out with its robust design and versatile configuration, enabling efficient packaging of fresh and processed meats, cheeses, and seafood with optimal presentation. The AS38 employs dual 1500mm parallel seal bars to vacuum pack and seal products, maximizing throughput with up to 24 packs per minute. Integrating into automated packaging lines, it is PLC-controlled with a multilingual touch screen for ease of use. Operational efficiency is enhanced by a powerful R5 630m³/hr rotary vane vacuum pump and WV1500m³/hr booster pump, optimizing energy consumption. The FDA-certified adjustable-speed conveyor belt provides precise handling, while the built-in mechanical scrap cutting and aspiration system ensures clean operation. Available in corrosion-resistant materials, the machine supports CIP for effective maintenance. Ideal for food processors and meat packaging companies, the AS38 complies with industry standards for food safety and quality assurance.
Benefits
- Enhances packaging efficiency with up to 24 packs per minute.
- Improves product presentation with precise vacuum sealing.
- Reduces energy costs with optimized motor and vacuum pump systems.
- Facilitates user-friendly operation with intuitive multilingual touch screen controls.
- Ensures consistent quality through FDA-certified materials and compliance with food safety standards.
- Applications
- Smallgoods,Cheese,Fresh meat,Processed meats,Fish
- End products
- Salmon fillets,Salami sticks,Cheddar blocks,Beef sirloin steaks,Deli ham slices
- Steps before
- Grinding,Slicing,Portioning,Preparation
- Steps after
- Shrink Wrapping,Drying,Labeling,Boxing
- Input ingredients
- fresh meat,processed meats,cheese,smallgoods,fish,heat-sealable vacuum bags
- Output ingredients
- vacuum-packed fresh meat,vacuum-packed processed meats,vacuum-packed cheese,vacuum-packed smallgoods,vacuum-packed fish
- Market info
- Starvac Systems is known for manufacturing high-quality vacuum systems and engineered solutions tailored to various industrial applications. They are reputed for their innovation, reliability, and technical expertise in delivering custom-engineered vacuum equipment.
- Packaging Speed
- Up to 3 cycles/min
- Pack Rate
- Up to 24 packs/min
- Packed Product Dimensions
- Up to L800 x W450 x H360 mm
- Infeed Conveyor Belt Width
- 800mm
- Lid Height Clearance for Product
- 360mm
- Vacuum Pump
- R5 630m3/hr oil lubricated rotary vane vacuum pump
- Booster Pump
- WV1500m3/hr booster pump
- Sealing System
- Dual x 1500mm parallel seal bars
- Useful Distance Between Seal Bars
- 800mm
- Overall Dimensions
- L4067 x W1500 x H2036mm
- Weight
- Approx 2,200kg
- Automation level
- PLC with multilingual touch screen
- Batch vs. continuous operation
- Continuous
- Cleaning method
- Easy cleaning due to simple construction
- Changeover time
- Quick changeover with adjustable components
- Air incorporation control
- Automatic aspiration system
- Energy efficiency
- Optimized cycle times for high throughput
- Cleanability
- Simple and solid construction
- Product type compatibility
- Fresh meat / Processed meats / Cheese / Smallgoods / Fish
- Machine footprint
- L4067 x W1500 x H2036mm
- Weight
- Approx 2,200kg
- Infeed Conveyor Belt Width
- 800mm
- Lid height clearance for product
- 360mm
- Control panel type
- Multilingual touch screen panel
- Sealing System
- Dual x 1500mm parallel seal bars
- Useful distance between seal bars
- 800mm
- Control panel type
- Multilingual touch screen panel
- Integration possibilities
- Wi-Fi Internet connection for remote control and diagnostics
- Conveyor belt adjustability
- Adjustable speed FDA-certified conveyor belt
- Versatility of configuration
- Adaptable to various operational and production requirements
- Sealing options
- Top seal wire and bottom seal bar
