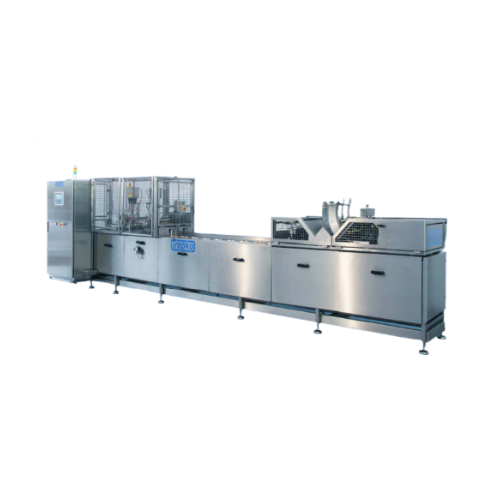

Automated filling and coagulation line for u.f. white cheese

Enhance your cheese production with a state-of-the-art system designed for efficient filling and coagulation, drastically reducing labor intensity while ensuring consistency and precision in every batch.

Processes and Packages U.F. White Cheese

The 300 Series from Trepko offers a specialized solution for dairy producers and cheese manufacturers seeking efficient filling and coagulation of ultra-filtrated (U.F.) white cheese. This fully automated system ensures a streamlined production process, handling up to 10,000 cups per hour with consistent precision. Trepko’s 300 Series integrates seamlessly into dairy production lines, utilizing a combination of mechanical and modern servo technology for reliable operation. The process includes cup denesting, UV radiation, heat sealing, and precise rennet mixing, ensuring high-quality end-products like feta and paneer. Energy-efficient servo drives minimize operational costs, while options like laminar flow cabins and advanced CIP systems enhance hygiene and ease of maintenance. Configurable for various portion volumes from 200 to 1000 grams, this line is engineered to support continuous, high-speed operations and can be tailored with optional modules such as cheese cutting devices and salt dispensers for further customization.

Benefits

  • Enhances production efficiency with automated filling and coagulation, achieving up to 10,000 cups per hour.
  • Ensures product consistency and quality through precise servo-driven operations.
  • Prolongs shelf life with optimized sealing technology, maintaining freshness and ease of use.
  • Minimizes maintenance costs with reliable mechanical and servo technology for long-term operation.
  • Meets stringent hygienic standards with UV radiation and CIP system for contamination-free processing.

General


Applications
Cheese packaging,Food processing,Dairy products,U.f. white cheese
End products
Feta cheese,Queso fresco,Akkawi,Telemea,Halloumi,Tzfat cheese,Paneer
Steps before
Purification,Drying,Emulsification,Grinding,Concentrate and rennet mixing
Steps after
Salting,Heat sealing,Snap-on lid application,Conveyor discharge,Packing
Input ingredients
ultra-filtrated (U.F.) white cheese base,concentrate,rennet,anti-foam spray,salt
Output ingredients
U.F. white cheese cups,heat-sealed foil covering,snap-on plastic lid
Market info

Technical Specifications


Coagulation time
20-40 minutes
Output
Up to 10,000 cups/hour
Portion volume
200g,500g,1000g
Power supply
3 x 400 V + O + E,50 Hz,18 kVA
Compressed air consumption
~70 m³/cycle
0.5–0.8 Mpa
Automation
PLC-controlled,touch-screen panel
Modules
Filling,Coagulation Tunnel,Salting and Closing
Drive Technology
Mechanical and servo technology

Operating Characteristics


Automated Process
Fully automated filling and coagulation
Production Output
Up to 10,000 cups/hour
Flexibility of Equipment
Flexible,modern,economical
Automation Level
Managed by PLC with touch-screen panel
Coagulation Time
20-30 minutes
Compressed Air Consumption
70–80 m³/cycle,0.5–0.8 Mpa
Optional Equipment
Salt dispenser,cheese cutting device
Cleaning Method
Automatic cleaning of coagulation conveyor
Safety Compliance
Stringent hygienic standards maintained

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Cheese type
U.F. white cheese

Physical Characteristics


Container type
Cups
Control panel type
Touch-screen
Discharge method
Conveyor system

Custom Options


Control Panel Type
User-friendly touch-screen panel
Integration Possibilities
PLC controller integration
Automatic Cleaning
Automatic cleaning of the coagulation conveyor
Module Configurations
Filling,Coagulation Tunnel,Salting and Closing
Machine Options
Laminar flow cabins,UV radiation of cups and foils,heating controls
Optional Equipment
Salt dispenser,rennet tank,CIP return pump
