Automated container closure integrity tester

Ensure the integrity of your sterile pharmaceutical containers with high-speed, non-destructive testing that detects leaks as small as 5 microns.

Performs High-Speed Leak Testing

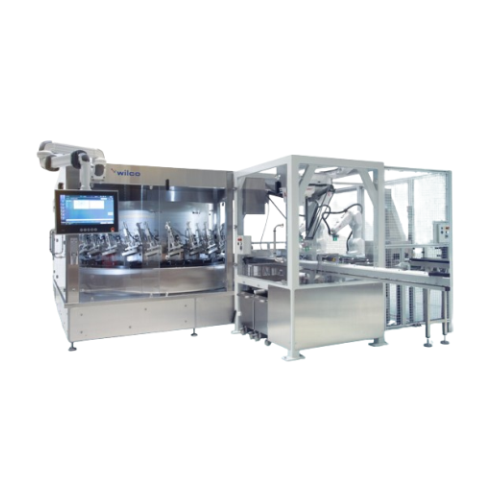

The R DPX from WILCO AG is an automated Container Closure Integrity Tester engineered for stringent pharmaceutical and biotech applications. Leveraging the latest vacuum and pressure decay testing methods, it delivers high sensitivity leak detection for diverse primary containers, including vials, ampoules, and BFS products. Operating at speeds up to 600 samples per minute, it ensures seamless integration within high-speed production lines, adhering to GMP guidelines and utilizing the LFC method® for 100% non-destructive testing. Its toolless format changeover and compliance with 21 CFR part 11 streamline operations and data handling, while its adaptability to a wide range of product types—liquid, lyophilized, and solid—makes it indispensable for manufacturers focused on maintaining sterility and compliance.

Benefits

  • Enhances product integrity by detecting leaks as small as 5 microns.
  • Minimizes production stops with reliable and gentle product handling.
  • Accelerates format changes with a tool-free system, reducing downtime.
  • Ensures regulatory compliance with non-destructive, deterministic testing methods.
  • Supports diverse production needs, handling various container shapes and product types.

General


Applications
Liquid formulations,Sterile containers,Iv bags,Blow-fill-seal products,Lyophilized products,Biopharmaceuticals,Parenterals,Auto-injectors,Bfs containers,Pharmaceuticals
End products
Sterile iv saline bags,Small volume parenteral drugs,Bfs plastic bottles,Liquid vaccines,Pre-filled syringes,Sterile auto-injectors,Sterile infusion solutions,Bfs ampoules,Lyophilized injectables,Large volume parenteral solutions
Steps before
Filling,Sealing,Lyophilization,Assemblage
Steps after
External Inspection,Labeling,Packaging,Sterilization
Input ingredients
glass vials,plastic vials,ampoules,cartridges,liquid products,powder products,lyophilized products,non-conductive products,low filling level products,fusion sealed sterile pharmaceutical containers,BFS bottles,LVP bottles,various shapes of BFS containers,conductive products,non-conductive liquids,flammable liquids,sensitive packaging,lyophilized and liquid filled vials
Output ingredients
tested vials,tested ampoules,tested cartridges,tested liquid products,tested powder products,tested lyophilized products,assured container closure integrity,leak-detected BFS bottles,leak-detected LVP bottles,containers with verified headspace conditions,inspected vials using Headspace Analysis
Market info

Technical Specifications


Speed
Up to 600/min
Sample Capacity
60,000/h
Format Range
1ml - 250ml
Leak Sensitivity
Down to 5 microns
Automation
Non-destructive,automated
Testing Method
LFC method®
Applicable for Container Type
Glass and Plastic Containers
Applicable for Product Type
Liquid,Lyophilized,Solid
Data Handling
Compliance with 21 CFR part 11
Changeover
Toolless Format Changeover

Operating Characteristics


Automation level
PLC / SCADA
Batch vs. continuous operation
Inline Continuous
Changeover time
Toolless format changeover
Cleaning method
Non-destructive
Energy efficiency
High-speed production

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


GMP Compliance
Yes
EU GMP Annex 1 Compliance
Yes
USP <1207> Compliance
Yes
21 CFR Part 11 Compliance
Yes

Physical Characteristics


Machine footprint
Compact
Format range
1ml up to 250ml
Control panel type
Integrated
Machine size
Variable based on samples
Product handling
Gentle transfer system
Toolless format changeover
Yes
Material handling compatibility
Glass and plastic vials,ampoules,cartridges

Custom Options


Control panel type
HMI with touchscreen interface
Integration possibilities
OPC server for network integration
Toolless format changeover
Yes
Automation level
PLC / SCADA
Data Handling
Compliance with 21 CFR part 11
