Automated bottle and jar filling solution

Streamline your production and minimize waste with a versatile filling solution, capable of delivering precision and efficiency for a wide range of liquid products, from syrups to shampoos.

Fills and Packages Liquid Products Efficiently

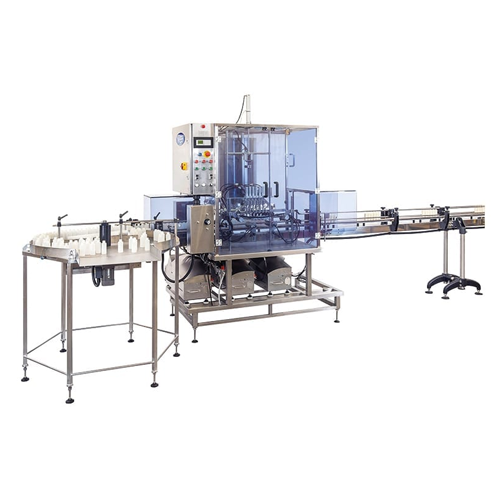

The Response Automation Base from Adelphi Manufacturing is engineered to meet the diverse needs of liquid product manufacturers in sectors ranging from cosmetics to pharmaceuticals. This filling and packaging solution stands out for its versatility and precision, utilizing up to four independent Response Benchtop Fillers, which can be converted from an 8-head automatic filler in just 30 minutes. Designed to fill containers at speeds of up to 60 per minute, it covers volumes from 5ml to 1L with exceptional accuracy at ±0.25%, minimizing waste and boosting profitability.

Constructed with 316L stainless steel and PTFE contact parts, it complies with stringent pharma and food-quality standards. The system offers seamless integration into existing production lines, featuring optional infeed and outfeed tables. Pneumatic cut-off nozzles ensure clean fills, while its quick-strip design significantly reduces downtime during maintenance. With no EU import duty, this system provides an accessible solution for manufacturers seeking efficiency and reliability in their operations.

Benefits

  • Increases productivity by processing up to 60 containers per minute.
  • Minimizes product waste with high accuracy filling at ±0.25%.
  • Enhances operational flexibility with quick conversion from automatic to benchtop fillers.
  • Ensures compliance and hygiene with pharmaceutical-grade materials.
  • Reduces maintenance time with a quick-strip design.

General


Applications
Food,Disinfectants,Chemicals,Personal care,Liquid formulations,E-liquid,Agrochemicals,Beverage,Household products,Oil,Cosmetics,Veterinary,Lube oil,Pharmaceutical
End products
Liquid fertilizers,Liquid detergents,Vape juices,Shampoos,Syrups,Salad dressings,Engine oils,Animal vaccines,Pesticides,Essential oils,Eye drops,Facial serums,Hand sanitizers,Soft drinks
Steps before
Purification,Mixing,Homogenization,Emulsification
Steps after
Capping,Labeling,Packing,Inspection
Input ingredients
bottles,jars,screw top vials
Output ingredients
filled bottles,filled jars,filled vials
Market info

Technical Specifications


Filling speed
Up to 60 containers per minute
Filling volume
5ml to 1L
Accuracy
±0.25%
Material
316L stainless steel / PTFE
Automation
Automatic / Benchtop conversion
Changeover time
30 minutes
Contact parts
Pharma and food quality compliant
Nozzle type
Pneumatic cut-off

Operating Characteristics


Filling speed
Up to 60 containers per minute
Fill volume range
5 ml to 1 L
Filling accuracy
±0.25%
Automation level
Automatic / Benchtop
Integration capability
Infeed and outfeed tables optional
Changeover time
30 minutes
Cleaning method
Pneumatic cut-off nozzles prevent dripping

Material Compatibility


Biological compatibility
Pharma and food quality compliant
Cleanability
Quick-Strip Design
Corrosive resistance
316L stainless steel
High temperature resistance
PTFE components

Product type Characteristics


Container type
Bottles,jars,and screw top vials

Physical Characteristics


Discharge method
Pneumatic cut-off nozzles
Feed/discharge method
Optional infeed and outfeed tables

Custom Options


Modular Design
Yes
Quick-Strip Design
Yes
Infeed and Outfeed Tables
Optional
Convertible Configuration
4 Benchtop Filling Machines
Pneumatic Cut-off Nozzles
Yes
