Alternate movement bottle filling and capping system

Enhance your production line with a versatile filling and capping solution, ideal for managing both stable and unstable containers, ensuring precise handling of liquid and cream products through servo-driven precision and quick no-tool adjustments.

Fills and Caps Liquid and Cream Bottles

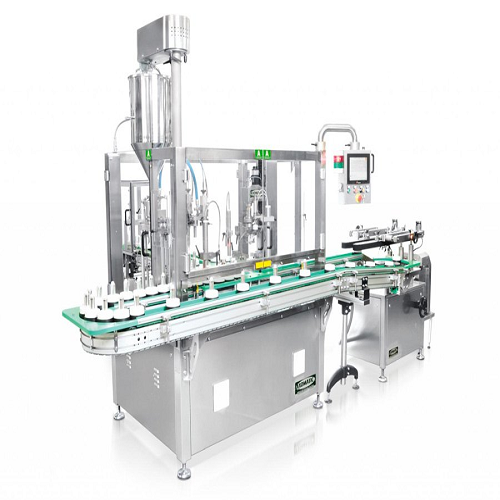

The AXOBLOCK 160 from Axomatic is a versatile filling and capping machine designed for precision in the pharmaceutical, cosmetics, and food industries. It incorporates a volumetric dosing pump and servo motor-driven linear movement for accurate filling of liquid and cream products. The system includes diving nozzles with an innovative “No Drop System” enabling bottom-up filling, ideal for a variety of end-products such as shampoos, syrups, and creams. Capable of processing up to 40 containers per minute, the machine accommodates containers with diameters and heights ranging from 30 mm to 90 mm. Manual loading is streamlined with direct belt placement, while alternate movement ensures stability in handling both stable and unstable bottles. The AXOBLOCK 160 can be effortlessly integrated into existing production lines, offering simple format changes without the need for tools. Its robust design supports diverse applications across packaging departments and meets industry standards for efficiency and reliability.

Benefits

  • Enhances production efficiency with precise volumetric filling.
  • Minimizes waste through the "No Drop System" for clean operations.
  • Facilitates quick transitions and reduces downtime with tool-free format changes.
  • Accommodates a range of container sizes, maximizing flexibility in packaging.
  • Integrates seamlessly into existing lines for streamlined operation.

General


Applications
Bottled products,Liquid formulations,Cream products
End products
Cleaning solution,Lotion,Body cream,Cough syrup,Hand sanitizer,Conditioner,Shampoo,Face cream,Juice,Liquid soap,Syrup,Salad dressing,Essential oils
Steps before
Purification,Preparation of liquid and cream products,Bottle preparation,Material sourcing
Steps after
Sterilization,Packing,Quality control,Labeling
Input ingredients
stable bottles,not stable bottles,liquid products,cream products
Output ingredients
filled containers,capped bottles
Market info
Axomatic, part of the Marchesini Group, is known for manufacturing high-quality automated machinery for packaging, particularly in the cosmetic, pharmaceutical, and food industries, with a reputation for innovation and customization in engineered-to-order equipment.

Technical Specifications


Automation
Alternate movement automatic
Loading method
Manual loading
Filling unit
Volumetric dosing pump
Movement type
Linear movement by servo motors
Nozzle type
"No Drop System"
Filling method
Diving nozzles for bottom-up filling
Nozzle stroke
200 mm stroke adjustable
Changeover time
Simple and quick format changes
Container diameter
30 mm - 90 mm (100 mm option)
Container height
30 mm - 90 mm (100 mm option)
Production speed
up to 40 containers/min

Operating Characteristics


Working mechanism
Alternate movement
Filling method
Volumetric dosing pump
Automation level
Servo motor driven
Changeover time
Simple and quick
Container handling
Transport wheel with pucks
Bottom-up filling
Adjustable diving nozzles
Manual loading
Operator on the belt
Capping mechanism
Automatic

Material Compatibility


Abrasion resistance
Standard for industrial use
Biological compatibility
Suitable for liquid and cream products
Cleanability
Designed for easy cleaning
Corrosive resistance
Compatible with standard liquid ingredients
Density/particle size
Designed for liquid and cream with standard densities

Product type Characteristics


Container size
30–90 mm (100 mm option)
Container shape
Stable and not stable
Product type
Liquid and cream products
Filling method
Volumetric dosing

Physical Characteristics


Discharge method
Transport wheel with pucks
Container diameter
30 mm - 90 mm (100 mm option)
Container height
30 mm - 90 mm (100 mm option)
Filling nozzle
No Drop System

Custom Options


Control panel type
HMI with touch screen
Format change customization
Tool-less changeovers
Integration possibilities
Compatible with various container sizes
Filling unit type
Volumetric dosing pump
Nozzle type
"No Drop System" filling nozzle
