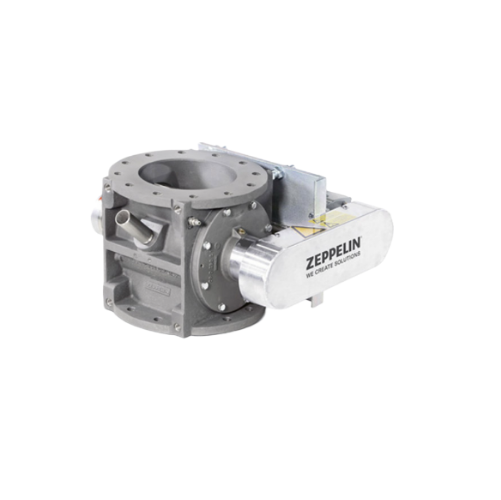

A-type rotary feeder for powder and pelleted bulk materials

Ensure precise feeding and discharging of powdered and pelleted materials in pneumatic systems with robust, customizable rotary solutions designed for optimal flow control and minimal gas leakage.

Feeds and Discharges Bulk Materials Efficiently

The A-type Rotary Feeder ZSD from Zeppelin Systems is engineered for precise feeding and discharging of powdered and pelleted materials in pneumatic and vacuum conveying systems. Designed for industries such as food, plastics, rubber, and chemicals, it operates effectively under high differential pressures of up to 1.0 bar(g). Its unique 10-chamber rotor minimizes gas leakage while ensuring robust performance with a durable ribbed cast housing. Available in multiple sizes (160–500), it offers customizable configurations including quick cleaning and flameproof options certified under ATEX 2014/34/EU. The feeder is constructed for low maintenance, featuring integrated leakage-gas nozzles and sealed shaft passages. Suitable for diverse operations, it maintains mechanical integrity across a wide temperature range (-10 to +60°C). Compliance with DIN 2501 and ANSI standards is guaranteed, making it a versatile addition to your production line.

Benefits

  • Ensures precise material dosing to optimize production flow.
  • Reduces maintenance downtime with its robust, low-maintenance design.
  • Minimizes operational costs with efficient gas leakage management.
  • Enhances safety with ATEX-certified flameproof configurations.
  • Adapts to diverse industry needs with customizable material and size options.

General


Applications
Pneumatic conveying systems,Powdered bulk materials,Vacuum conveying systems,Pressurized conveying systems,Pelleted bulk materials
End products
Animal feed,Sugar,Plastic granules,Flour,Powdered chemicals,Pharmaceutical powders,Powdered resins,Plastic pellets,Grain powders
Steps before
Bulk Material Preparation,Material Sieving,Bulk Material Storage,Mixing
Steps after
Conveying,Packing,Further Processing
Input ingredients
powder,pelleted bulk materials
Output ingredients
fed bulk materials,discharged bulk materials
Market info
Zeppelin Systems excels in designing and manufacturing high-quality bulk material handling and processing equipment. Renowned for its engineering expertise, the company serves industries including plastics, chemicals, and food, ensuring efficient, reliable, and innovative solutions tailored to customer needs.

Technical Specifications


Size range
160–500
Differential Pressure
Up to 1.0 bar (g)
Mechanical Design Pressure
-1.0 to 10 bar (g)
Temperature Resistance
-10 to +60°C
Rotor Construction
10-chamber
Flange Standard
DIN 2501 PN10 FF or ANSI 150 lbs FF
Cleaning Options
Quick cleaning
Flameproof Certification
EC type examination certificate (ATEX 2014/34/EU)
Rotor Type
Beveled rotor
Sealing Method
Shaft-sealing rings
Monitoring Features
Rotary frequency monitoring and speed measurement

Operating Characteristics


Suitable for material types
Powder and pelleted bulk materials
Pressure operation
Up to 1.0 bar (g)
Material combination options
Various
Gas leakage
Minimal
Temperature resistance
-10 to +60°C
Sealing method
Shaft-sealing rings
Design pressure
From -1.0 to 10 bar (g)
Pressure differential
Up to 1.0 bar (g)
Cleaning capability
Quick cleaning
Flameproof option
Available with ATEX certification
Rotor type
Beveled
Leakage-gas management
Integrated leakage-gas nozzles

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


ATEX certification
EC type examination certificate (ATEX 2014/34/EU)
Machinery Directive
Declaration of incorporation or declaration of conformity

Physical Characteristics


Discharge method
Used for feeding and discharging bulk materials
Compact footprint
Available in seven sizes (160–500)
Rotor design
10-chamber rotor with customizable spacing
Housing material
Robust,ribbed cast housing
Flange joints
DIN 2501 PN10 FF or ANSI 150 lbs FF
Temperature resistance
-10 to +60°C
Pressure resistance
-1.0 to 10 bar (g)
Leakage-gas management
Integrated leakage-gas nozzles
Shaft sealing
Shaft passages sealed using shaft-sealing rings

Custom Options


Material combination options
Various
Rotor spacing
Customized
Surface treatment and finishing
Customizable
Sealing gas options
Available
Rotary frequency monitoring and speed measurement
Available
Quick cleaning
Available
Flameproof option
ATEX certified
Beveled rotor
Options available
Leakage-gas container
Available
