360° palletizing and depalletizing robot

Optimize your packaging flow with a robot offering seamless 360° operation for precise and adaptable palletizing, depalletizing, and distribution in high-speed production environments.

Palletizes and Depalletizes Containers Efficiently

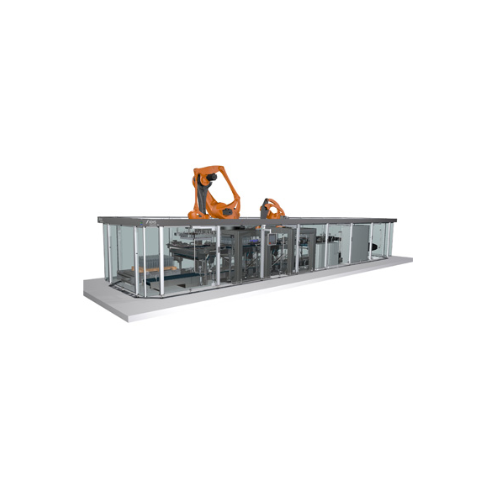

The Innopal RK articulated robot from KHS Group is an exceptional solution tailored for efficient palletizing and depalletizing across the beverage, food, and packaging industries. Its multi-axis design enables seamless operation within a 360° working radius, free from dead spots, allowing the manipulation of diverse container types such as plastic crates, kegs, cartons, and more. Boasting a robust load capacity of up to 570 kg, this robot integrates seamlessly into your production line, facilitating high-speed sorting, stacking, and distribution tasks. The Innopal RK is PLC-controlled, offering flexible programming and remote monitoring, while ensuring energy efficiency with its regenerative braking system and modular control architecture. Constructed with wear-resistant materials, it provides longevity and reduced maintenance, while optional automation features such as automatic head change enhance operational flexibility by accommodating both non-returnable and returnable packaging. Whether dealing with spring water bottles, cola cans, or whiskey barrels, this equipment ensures precise, reliable, and efficient handling, optimizing your throughput and enhancing overall production continuity.

Benefits

  • Enhances operational efficiency with seamless 360° robotic movement, eliminating dead zones.
  • Increases production flexibility through programmable automation that adapts to various packaging types.
  • Cuts energy costs by utilizing regenerative braking and energy-efficient motor technology.
  • Minimizes maintenance downtime thanks to robust design and automated format changeover.
  • Optimizes floor space with compact, modular construction suitable for confined areas.

General


Applications
Barrels,Kegs,Spirits,Still water,Soft drinks,Beer,Food,Slim kegs,Wine,Cartons,Trays,Shrink packs,Nonfood,Sparkling wine,Milk,Individual packets,Juice,Iced tea,Plastic crates,Bags
End products
Skimmed milk cartons,Stainless steel kegs,Orange juice tetra packs,Cardboard cartons,Frozen food packages,Prosecco bottles,Aluminum slim kegs,Jute bags,Foil-wrapped candy packets,Pilsner beer,Detergent jugs,Lemon iced tea bottles,Merlot wine bottles,Whiskey barrels,Recyclable plastic crates,Polyethylene shrink packs,Oak barrels,Spring water bottles,Polypropylene trays,Cola cans
Steps before
Sorting,Distribution
Steps after
Packing,Stacking
Input ingredients
plastic crates,high-wall crates,low-wall crates,kegs,slim kegs,barrels,cartons,trays,shrink packs,individual packets,bags
Output ingredients
palletized crates,palletized kegs,palletized barrels,palletized cartons,palletized trays,palletized shrink packs,palletized packets,palletized bags
Market info
KHS is known for manufacturing innovative filling and packaging systems for the beverage, food, and non-food industries, renowned for their engineering expertise, high-quality standards, and sustainable solutions in ensuring efficient production processes.

Technical Specifications


Working radius
360°
Load capacity
Up to 570 kg
Automation
Multi-axis-controlled
Head change
Automatic
Sustainability features
Energy recovery,absolute encoders,bus technology
System availability
High,with optional fully automatic format changeover
Space requirement
Low

Operating Characteristics


Working radius
360°
Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
Changeover time
Fully automatic format changeover
Energy efficiency
Recovery of braking energy
Cleaning method
CIP / Manual
Automation level
Freely programmable

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container type
Plastic crates,kegs,cartons,trays,shrink packs,packets,bags
Pallet types
High-wall and low-wall

Physical Characteristics


Compact footprint
Suitable for limited spaces
Articulation range
360°
Number of axes
Up to 6
Load capacity
Up to 570 kg
Head change
Automatic

Custom Options


Control panel type
Freely programmable
Automation Level
Multi-axis controlled
Integration possibilities
Modular control system
Energy Recovery
Braking energy recovery
Head change feature
Automatic
