24-ton laboratory pellet press

Achieve precise pellet formation with reliable 24-ton pressing power, ideal for compaction of diverse materials like metal powders and ceramics in research settings.

Compacts Metal Powders and Forms Ceramic Pellets

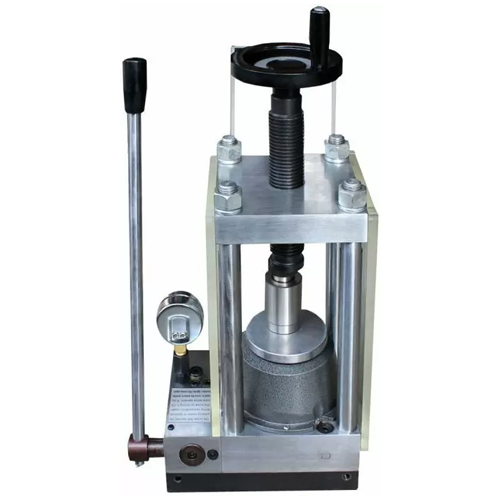

The MP24A Pellet Press from Across International is a manual, benchtop hydraulic press designed for research facilities specializing in materials science and chemistry. Featuring a built-in hydraulic pump with an auto-return function, the MP24A allows users to exert up to 24 metric tons of force to compact metal powders and form ceramic pellets. Its 10mm thick transparent safety shield ensures secure operation in high-pressure environments. This press is versatile, supporting various laboratory applications such as pressing catalyst samples, mineral pellets, and metal matrix composites. Engineered for easy integration into existing laboratory workflows, the MP24A suits materials researchers, chemistry labs, and companies involved in industrial processes and metallurgy. Customizable die sizes further enhance its adaptability to specific research and development needs.

Benefits

  • Enhances sample preparation precision for research with up to 24 metric tons pressing capacity.
  • Minimizes safety risks with a robust 10mm thick transparent shield.
  • Simplifies operation with an integrated hydraulic pump and auto-return function.
  • Adapts to various sample requirements with available customizable die sizes.
  • Seamlessly integrates into laboratory environments due to its compact, benchtop design.

General


Applications
Compound samples,Metal powders,Chemistry laboratories,Materials research,Minerals
End products
Ceramic pellets,Catalyst samples,Metal matrix composites,Ferrous alloy powders,Mineral pellets
Steps before
Material Preparation,Sample Grinding,Mixture Homogenization
Steps after
Sample Analysis,Storage,Packaging
Input ingredients
compound samples,materials for pellet pressing,chemistry research materials
Output ingredients
pellets,pressed samples
Market info
Across International is known for manufacturing high-quality thermal management equipment, such as vacuum ovens, furnaces, and laboratory equipment, with a strong reputation for reliability and innovation in industries like materials research, cannabis processing, and laboratory testing.

Technical Specifications


Maximum pressure
24 metric tons
Maximum working space
4x4x5.5" (LxWxH)
Hydraulic cylinder travel distance
1 inch
Machine dimension
10.5x8x19" (LxWxH)
Machine weight
84 Lb
Shipping weight
110 Lb
Shipping dimension
15x15x22"
Die size compatibility
2" ID round die sets

Operating Characteristics


Maximum pressure
24 metric tons
Hydraulic pump type
Built-in with auto return function
Safety features
10mm thick transparent safety shield
Manual operation
Desktop dry manual
Automation level
Manual
Batch vs. continuous operation
Batch
Cleaning method
Manual

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Usage
Compound sample preparation

Physical Characteristics


Machine footprint
10.5x8x19" (LxWxH)
Machine weight
84 Lb
Hydraulic cylinder travel distance
1 inch
Safety shield thickness
10mm

Custom Options


Control panel type
manual operation
Hydraulic pump type
Built-in with auto return function
Safety features
10mm thick transparent safety shield
Machine dimension customization
10.5x8x19" (LxWxH)
Additional die options
Various diameter dies available at extra cost
