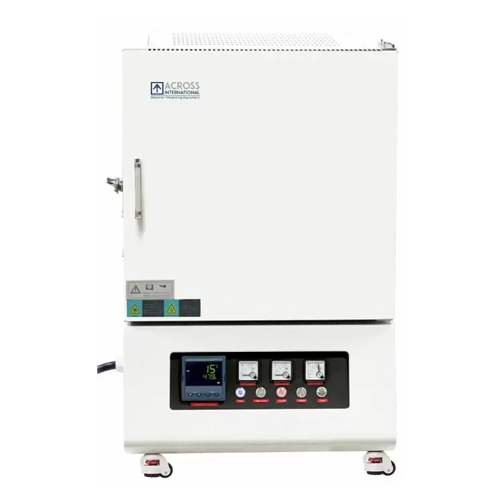

1200°c benchtop muffle furnace

Ensure precise thermal processing and testing with this high-capacity benchtop furnace, ideal for achieving consistent heat distribution and minimizing energy loss in advanced material development.

Performs High-Temperature Thermal Processing

The CF1200 series from Across International is a benchtop muffle furnace designed for precise thermal processing, integral to sectors like pharmaceuticals, metallurgy, and semiconductor manufacturing. This furnace features spiral wire coils from Kanthal (Sweden) embedded in high-quality alumina fiber insulation by Mitsubishi (Japan), ensuring excellent heat retention and uniform temperature distribution. Controlled by digital controllers from Eurotherm (UK) or Shimaden (Japan), it allows you to program up to 50 segments for tailored thermal profiles. Ideal for processes such as heating and testing, it supports applications ranging from protein therapeutics to advanced composite materials. With a maximum constant working temperature of 1100°C, the CF1200 guarantees precision with ±1°C accuracy. Designed for easy integration into laboratory and R&D settings, it includes a computer interface for remote monitoring and data export. The furnace is ETL and CE certified, meeting stringent safety and reliability standards, while offering customization options for chamber sizes to fit your specific needs.

Benefits

  • Ensures precise thermal control, enhancing product quality and consistency.
  • Integrates seamlessly with remote monitoring, reducing manual oversight and improving efficiency.
  • Supports diverse applications, increasing versatility across multiple industries.
  • Reduces energy waste with high-grade insulation, lowering operational costs.
  • Maintains operator safety with overheat and power failure protection, minimizing risk.

General


Applications
Metallurgy,Educational labs,Fine chemicals,Semiconductor materials,Medical equipment,Material science,Industrial process,Biopharmaceuticals,Pharmaceuticals
End products
Silicon wafers,Advanced composite materials,Sterilized medical instruments,Customized industrial components,Lab training modules,Protein therapeutics,High-purity chemical solvents,Tablet excipients,Metallic alloys
Steps before
Sample preparation,Material handling,Preheating
Steps after
Cooling,Quality control,Material analysis
Input ingredients
ambient temperature materials,test samples,materials for thermal processing
Output ingredients
heated samples,processed samples at up to 1200°C,thermal test results
Market info
Across International is known for manufacturing high-quality thermal management equipment, such as vacuum ovens, furnaces, and laboratory equipment, with a strong reputation for reliability and innovation in industries like materials research, cannabis processing, and laboratory testing.

Technical Specifications


Temperature Range
Ambient - 1200°C
Constant Working Temperature
1100°C
Heating Element Type
Kanthal A1 2.0 resistance coil wire
Thermocouple Type
Type K
Max Heating Rate
,lt
15°C/min
Temperature Accuracy
± 1°C
Power Supply
208-240VAC,50/60Hz,single phase
Maximum Output
4 kW - 34.8 kW
Chamber Sizes
12x8x8" to 24x24x24"
Controller Option
Eurotherm 3204 or 3504
Chamber Capacity
0.44 to 8.00 cu ft
Usable Chamber Space
10x7x7" to 22x23x23"

Operating Characteristics


Heating Rate
,lt
15°C/min
Automation Level
Microprocessor based PID control
Smoothing (PID Control)
Self-tuning
Remote Operation
PC Connectivity
Controller Type
Eurotherm 3204/3504
Operation Mode
Single phase
Overheat Protection
Automatic Shutdown
Power Failure Recovery
Operation Resumption

Material Compatibility


Abrasion resistance
High
Cleanability
Easy to clean surfaces
Corrosive resistance (e.g. acids)
Alumina and steel provide resistance
Thermal stability
Kanthal elements withstand high temperatures
Electrical conductivity
Non-conductive alumina fiber insulation


ETL Certification
Yes
CE Marking
Yes
UL Standards
Yes
CSA Standards
Yes

Physical Characteristics


Chamber Size
12x8x8"
Chamber Size
16x12x12"
Chamber Size
20x16x16"
Chamber Size
20x20x20"
Chamber Size
24x24x24"
Machine Footprint
Benchtop
Furnace Dimensions (LxWxH)
22x25x34"
Furnace Dimensions (LxWxH)
26x29x39"
Furnace Dimensions (LxWxH)
32x36x46”
Furnace Dimensions (LxWxH)
36x36x52”
Furnace Dimensions (LxWxH)
42x44x56”
Shipping Dimensions (LxWxH)
28x28x36"
Shipping Dimensions (LxWxH)
34x37x46"
Shipping Dimensions (LxWxH)
39x44x55”
Shipping Dimensions (LxWxH)
42x44x60”
Shipping Dimensions (LxWxH)
50x48x65”
Usable Chamber Space (DxWxH)
10x7x7"
Usable Chamber Space (DxWxH)
14x11x11"
Usable Chamber Space (DxWxH)
18x15x15"
Usable Chamber Space (DxWxH)
18x19x19"
Usable Chamber Space (DxWxH)
22x23x23"
Unit/Shipping Weight (Lb)
530/620
Unit/Shipping Weight (Lb)
600/700
Unit/Shipping Weight (Lb)
643/720
Unit/Shipping Weight (Lb)
684/904
Unit/Shipping Weight (Lb)
772/1102

Custom Options


Control panel type
Eurotherm 3204 / Eurotherm 3504
Chamber size
12x8x8" / 16x12x12" / 20x16x16" / 20x20x20" / 24x24x24"
Controller option
Standard / Optional Eurotherm 3504
Calibration
No calibration needed / CF1200 calibration
Delivery liftgate service
Yes / No
