X-ray scanner for bulk material inspection

Ensure product safety and minimize downtime by intercepting foreign contaminants in bulk materials right as they enter the production line.

Detects and Ejects Foreign Bodies in Bulk Materials

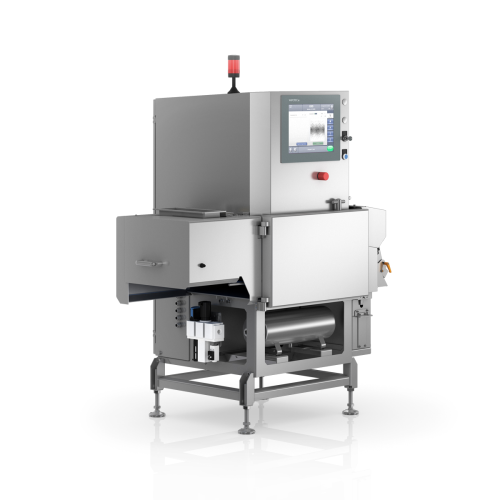

The SC-B 30 X-Ray Scanner from Wipotec is engineered to enhance the quality control of bulk materials by efficiently detecting and ejecting foreign bodies. This unit is equipped with a diode line scan detector with a 0.4 mm resolution for precise detection. Ideal for applications involving raw materials such as rice, coffee, and nuts, the SC-B 30 is integral in monitoring production lines across industries like food, pharmaceuticals, and cosmetics.

Built with a compact and hygienic design, the scanner’s stainless steel construction meets IP65 protection standards, ensuring durability in demanding environments. Its compact form factor allows for seamless integration into existing lines, with various ejection systems, including air blast nozzles, to minimize product loss during defect removal.

The SC-B 30 operates under continuous and high-speed conditions, optimizing line efficiency by intercepting contaminants at the beginning stages of processing. This proactive approach reduces downtime and protects machinery from potential damage. With its user-friendly interface featuring a 15” color TFT touchscreen, the scanner provides real-time X-ray imaging, empowering operators to make informed decisions quickly.

Wipotec’s SC-B 30 promises reliable performance and ease of maintenance, with inclined surfaces and C-shaped product spaces facilitating thorough cleaning. Pre-programmed for rapid set-up, this x-ray inspection solution meets stringent hygiene and safety requirements across diverse sectors.

Benefits

  • Enhances product quality by identifying and removing contaminants early in the process.
  • Reduces downtime and prevents equipment damage by intercepting foreign bodies before they cause harm.
  • Integrates seamlessly into existing production lines due to its compact design.
  • Complies with hygiene standards with stainless steel construction and easy-to-clean surfaces.
  • Provides real-time monitoring with a user-friendly touchscreen interface for quick decision-making.

General


Applications
Raw materials,Coffee,Bulk materials,Nuts,Rice,Loose products
End products
Jasmine rice,Pecans,Unroasted coffee beans,Shelled almonds,Hazelnuts,Instant coffee powder,Brown rice,White rice,Basmati rice,Roasted coffee beans,Cashews,Shelled walnuts
Steps before
Receipt of raw materials,Foreign body detection,Raw material inspection
Steps after
Contamination removal,Product processing,Quality assurance,Final product inspection,Product packaging
Input ingredients
raw materials,bulk materials,rice,coffee,nuts,dry bulk goods,loose products
Output ingredients
inspected bulk materials,contamination-free products,optimized line efficiency
Market info
Wipotec is renowned for its precision weighing technology and high-speed checkweighers used in various industries, including pharmaceuticals and food. They are recognized for their innovation and high-quality engineered-to-order solutions in weight measurement and inspection systems.

Technical Specifications


Resolution
0.4 mm
Protection Class
IP65
User Interface
15” colour TFT with touchscreen
Material
Stainless Steel
Hygienic Design
Bevelled surfaces,C-shaped product space
Ejection System
Multiple air blast nozzles

Operating Characteristics


Working mechanism
X-ray inspection
Integrated steps
Detection and ejection of foreign bodies
CIP/SIP
Easy cleaning design
Batch vs. continuous operation
Inline Continuous
Automation level
Control via touchscreen interface
Cleaning method
Easy manual cleaning
Changeover time
Quick integration
Energy efficiency
Efficient foreign body detection

Material Compatibility


Abrasion resistance
High
Biological compatibility
N/A
Cleanability
Excellent
Density/particle size
Varies with bulk material
Corrosive resistance (e.g. acids)
Stainless Steel IP65
Hygienic design
Yes

Product type Characteristics


Bulk material compatibility
Dry goods like rice and nuts


CE marking
Yes
IP65 Rating
Yes
GMP Compliance
Yes
FDA Compliance
Potential

Physical Characteristics


Machine Footprint
Compact design for ultra-easy integration
Construction Material
Stainless steel
Protection Class
IP65
Design Features
Bevelled surfaces and C-shaped product space
Resolution
0.4 mm
User Interface
15” colour TFT with touchscreen
Conveying Technology
Integrated
Ejection Systems
Various systems,including air blast nozzles

Custom Options


Control panel type
15” colour TFT with touchscreen
Integration possibilities
Easy integration into existing production lines
Ejection systems
Multiple air blast nozzles
Resolution
0.4 mm diode line scan detector
