X-ray inspection system for wet environments

Ensure unparalleled product inspection under extreme cleaning conditions with this high-speed, continuous operation system specially designed for wet environments, meeting stringent hygiene standards and integrating effortlessly into existing production lines.

Scans and Inspects Products in Wet Conditions

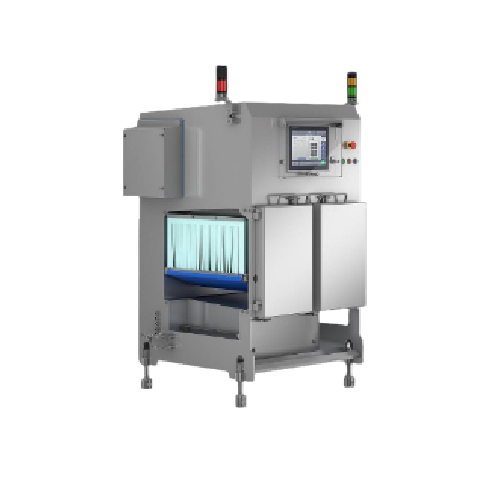

The SC-WD series from Wipotec is a highly specialized X-ray scanner designed for rigorous product inspection in environments subject to wet conditions and stringent hygiene requirements. This equipment features a C-shaped product space and balcony architecture, ensuring easy integration into high-speed production lines for industries such as food, pharmaceuticals, and cosmetics. The SC-WD operates using a state-of-the-art X-ray mechanism, enabling precise detection of contaminants in packaged meats, dairy products, pharmaceutical tablets, and more. With a compact design that meets IP69K protection standards, it is well-suited for environments demanding high-pressure cleaning. The system’s modularity allows for seamless customization and flexibility in application, while its stainless steel housing and optional special surface treatment enhance durability and cleanliness. Supporting continuous operations, the SC-WD ensures impeccable product quality and safety.

Benefits

  • Ensures product safety with high detection sensitivity, minimizing contamination risks.
  • Facilitates quick and thorough cleaning, reducing downtime between production batches.
  • Supports stringent hygiene requirements with IP69K-rated stainless steel construction.
  • Offers maximum flexibility with modular design, adaptable to various production needs.
  • Maintains operational efficiency in wet and extreme environments, enhancing production reliability.

General


Applications
Food,Mail,Chemical industry,Cosmetics,Machinery,Pharma,Aerosol,Building and mineral compounds,Logistics
End products
Mineral supplements,Cosmetic creams,Pharmaceutical tablets,Injectable vials,Liquid detergents,Cement bags,Aerosol spray cans,Canned fruits,Packaged meat,Shipping parcels,Shampoo bottles,Logistics crates,Dairy products,Paint containers
Steps before
Sorting,Pre-cleaning
Steps after
Sterilization,Packing,Labeling,Aggregation
Input ingredients
wet products,hygienic-sensitive products,products in extreme cleaning conditions
Output ingredients
inspected products,hygienically safe products,processed products with IP69K protection
Market info
Wipotec is renowned for its precision weighing technology and high-speed checkweighers used in various industries, including pharmaceuticals and food. They are recognized for their innovation and high-quality engineered-to-order solutions in weight measurement and inspection systems.

Technical Specifications


Protection class
IP69K
Design
Compact,C-shaped product space
Detection sensitivity
Highest available
Hygiene
Stainless steel housing,bevelled surfaces
Cooling unit
Integrated water cooling
Cleaning method
Easy installation and removal of the belt

Operating Characteristics


Cleaning method
Easy installation and removal of belt
Automation level
Automatic detection with X-ray scanner
Batch vs. continuous operation
Continuous
Hygienic design
Meets IP69K standards
Process reliability
High due to protection class and design
Modularity
Maximum modularity in construction
Flexibility
Maximum flexibility in use


Protection Class
IP69K

Physical Characteristics


Footprint
Compact design
Product Space Design
C-shaped,balcony architecture
Material
Stainless steel housing
Surface Treatment
Special surface treatment available
Protection Class
IP69K

Custom Options


Modularity in construction
Maximum modularity
Product space design
C-shaped,balcony architecture
Protection class
IP69K
Cooling system
Integrated water cooling unit
Surface treatment
Special surface treatment optionally available
