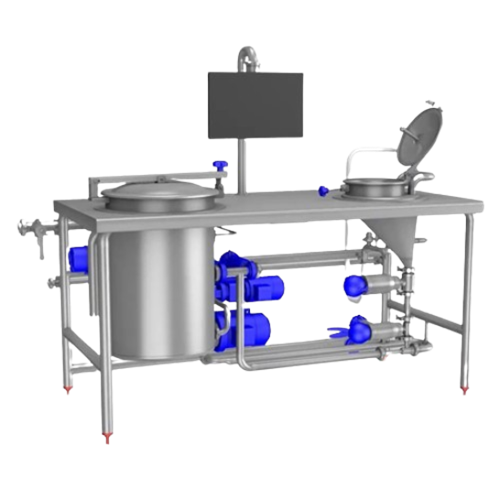

Water remineralization system for mineral and flavored water production

Achieve precision in mineral content with a system designed to refine and enhance water characteristics, ensuring consistent quality for mineral and flavored water production while integrating seamlessly into your bottling line.

Precisely Doses and Mixes Mineral Salts in Water

The EASY.RM from A Due S.p.A. is a cutting-edge water remineralization and mineral salt dosing system designed to enhance beverage production by precisely managing mineral content. Utilizing a sophisticated dissolution and dosing mechanism, it integrates seamlessly into processing lines for mineral water, flavored beverages, and functional drinks. Capable of maintaining a flow rate from 10,000 to 100,000 liters per hour, it offers continuous, automated operation with real-time pH and conductivity monitoring. Constructed from durable materials like stainless steel, it ensures long-lasting performance and corrosion resistance. The EASY.RM supports customizable configurations to meet specific production demands, providing efficient operation and easy maintenance.

Benefits

  • Ensures consistent product quality with precise mineral content control.
  • Boosts production efficiency through continuous, automated operation.
  • Minimizes maintenance efforts with durable, corrosion-resistant construction.
  • Enhances product versatility with customizable mineral configurations.
  • Supports sustainable production with efficient resource utilization.

General


Applications
Mineral water,Non-alcoholic beer,Functional water,Alkaline water,Hard seltzers,Plant-based milk,Flavored water,Juices
End products
Alkaline ionized water,Lime hard seltzer,Alcohol-free lager,Orange juice,Almond milk,Anti-aging herbal water,Lemon-flavored water,Sparkling mineral water
Steps before
Reverse Osmosis,Purification
Steps after
Filtration,Final Disinfection,Bottling
Input ingredients
salts,flavourings,flavours,acids,vitamins,natural extracts,lemon juice,sugar substitutes,powder milk,cacao,mineral salts,ingredients in powder,ingredients in crystalline structure,ingredients in liquid form
Output ingredients
mineral water,flavoured water,functional water,alkaline water
Market info
A Due is known for designing and manufacturing beverage processing equipment, specializing in water treatment, syrup preparation, and complete automation solutions for the beverage industry, with a strong reputation for innovation and quality engineering.

Technical Specifications


Flowrate
10,000 l/h to 100,000 l/h each unit
Automation
Continuous and automated operation
Microfiltration Capabilities
Down to 0.003 micron
PH control
In-line
Conductivity control
Downstream of each mineral injection
Material
Stainless steel or plastic material

Operating Characteristics


Dosing method
In-line continuous dosing
Automation level
Continuous and automated operation
Safety filtration
For undissolved salts
Disinfection method
UV lamps,ozone,or thermal treatment
Conductivity control
Downstream of each mineral injection
Microfiltration capability
Down to 0.003 micron


GMP Compliance
Yes
CE marking
Yes
FDA compliance
Yes
FDA materials
Yes

Physical Characteristics


Footprint size
Compact
Construction material
Stainless steel / Plastic
Control panel type
PLC-controlled
System configuration
Expandable units
Flow rate capacity per unit
10,000 – 100,000 l/h
Static mixer inclusion
Yes
Packaging type compatibility
Bag,drum,pail

Custom Options


Control panel type
HMI / PLC interface
Integration possibilities
SCADA / Remote monitoring
Material selection
Stainless steel / Plastic
Modular design
Expandable units
Flow rate customization
10,000 l/h to 100,000 l/h
PH control capability
In-line adjustment
Conductivity monitoring
Integrated sensors
