Water cooker for fresh pasta processing

Enhance cooking precision and product quality with this water cooker, designed to control water temperature and remove excess starch, ensuring optimal humidity and texture for pasta and snacks.

Cooks and Hydrates Pasta and Snack Products

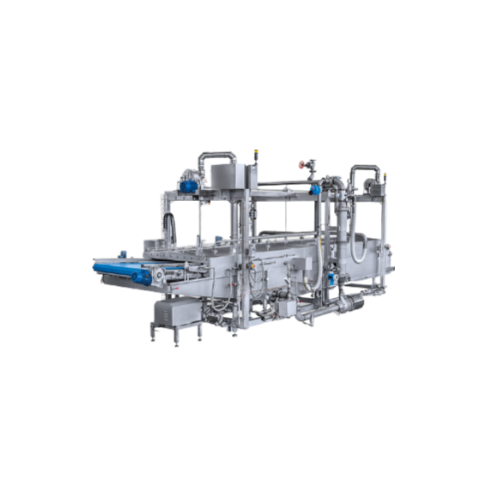

The CF Water Cooker from GEA is engineered to streamline the cooking and humidity control of pasta and snack products in automated production environments. Featuring a stainless-steel construction, this cooker operates with a precise water temperature control system via an external heat exchanger managed through a PLC, ensuring even cooking. This machine excels in diverse applications, including penne pasta and vegetable crisps production, handling both solid and liquid products with ease. Integrating seamlessly into existing production lines, the cooker offers a processing capacity ranging from 750 to 1200 mm belt width and 3 to 25 m cooking lengths. Its energy efficiency is enhanced by recirculation pumps and adjustable jets that maintain consistent temperature and prevent product stickiness. The cooker includes advanced cleaning features such as a multilayer automated opening system and rinsing ramps, drastically reducing downtime for maintenance. Optional enhancements allow for starch control and minimizing water waste, making it an optimal choice for food processing companies looking to boost quality while managing resources efficiently.

Benefits

  • Increases production efficiency with continuous, automated operations.
  • Ensures product quality by maintaining precise cooking and humidity levels.
  • Reduces cleaning time and maintenance with easy-access design and rinsing system.
  • Minimizes water waste using a controlled recirculation and starch removal system.
  • Facilitates seamless integration into existing production lines.

General


Applications
Snacks,Breakfast cereals,Fresh pasta,Pasta
End products
Cornflakes,Granola bars,Fusilli pasta,Tortellini,Ramen noodles,Vegetable crisps,Potato chips,Ravioli,Penne pasta
Steps before
Pasta loading,Ingredient preparation
Steps after
Humidity control,Product cooling,Packaging
Input ingredients
pasta,snacks,breakfast cereals,fresh pasta
Output ingredients
cooked pasta,cooked snacks,cooked breakfast cereals,increased humidity products
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Belt width
750-1200 mm
Cooking length
3-25 m
Number of belts
Up to 2
Automation
PLC-controlled
Water temperature accuracy
±1°C
Heating system
External heat exchanger steam/water

Operating Characteristics


Working mechanism
Conveying belt inside cooking tank
Integrated steps
Cooking,humidity increase
Batch vs continuous operation
Continuous
Product immersion method
Counter-belt with flights
Cooking control
PLC-regulated
Water temperature control
±1°C
Water level management
PLC-controlled
Cleaning method
Automated multilayer system
Starch removal system
Valve with continuous removal
Energy efficiency
Heat exchanger steam/water system

Material Compatibility


Cleanability
High (stainless-steel structure,accessible design)
Corrosive resistance (e.g. acids)
Stainless steel
Temperature resistance
Water temperature constant +/- 1°C
Humidity exposure
Designed to increase product humidity
Biological compatibility
Food-grade materials

Physical Characteristics


Conveying belt width
750-1200 mm
Cooking length
3-25 m
Number of belts
Up to 2
Tanks shape
Isolated and inclined for complete drain
Material
Stainless steel
Control panel type
PLC-controlled

Custom Options


Control panel type
PLC-controlled
Belt width
750-1200 mm
Cooking length
3-25 m
Heating system
External heat exchanger steam/water
Number of belts
Up to 2
Water temperature regulation
Adjustable via PLC
Starch controlling system
Optional
Counter-belt with flights
Optional for floating products
Automated opening system
Multilayer system
Material
Stainless-steel structure
