Wafer sheet conditioning tunnel for chocolate coating

Optimize your chocolate-coated wafer production by ensuring precise moisture control before coating, preventing cracks and expansion while maintaining product quality.

Controls Moisture and Conditions Wafer Sheets

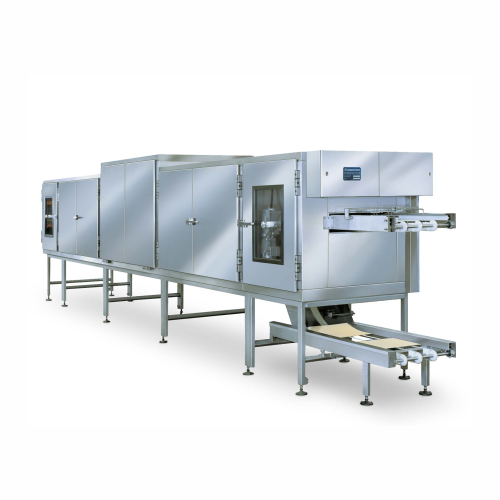

The Wafer Sheet Conditioning Tunnel CK from Hebenstreit GmbH is designed for the precise control of moisture in wafers and chocolate-coated products, addressing the critical need to prevent expansion and cracking during production. This conditioning tunnel uses an optimized air conduction system, ensuring uniform moisture distribution and maintaining the quality of finished products. Suitable for applications ranging from wafers to pet treats, it processes up to 1,646 wafer sheets per minute, with conditioning times between 20 to 30 minutes depending on the product. The fully automatic system includes a stainless steel design for durability and ease of maintenance, with optional online moisture content measurement for enhanced precision. Integration into existing production lines is seamless with its modular design, allowing capacity expansion to match increasing plant demands.

Benefits

  • Ensures product quality by maintaining precise moisture balance, preventing cracking and splitting in chocolate coatings.
  • Increases production capacity with a throughput of up to 1,646 wafer sheets per minute.
  • Facilitates easy scaling with a modular design for capacity expansion.
  • Minimizes maintenance with a durable stainless steel construction and accessible swing doors for inspection.
  • Optimizes production efficiency with fully automatic operation and optional real-time moisture monitoring.

General


Applications
Wafers,Savoury snacks,Snacks,Pet food,Cereal products,Chocolate-coated products,Sweet snacks,Extruded products,Moulded chocolate products
End products
Sticks snacks,Flatbreads,Chocolate wafers,Pork rind snacks,Whole grain products,Chocolate-coated wafers,Flakes,Coated hollow wafers,Protein crisps,Microcrispies,Breakfast cereals,Filled snacks,Snack curls,Balls snacks,Filled shapes,Crispies,Rings snacks,Pet treats,Croûtons,Wafer sheets
Steps before
Batter Preparation,Baking,Sheet Cooling
Steps after
Spreading,Stacking,Sandwich Cooling,Cutting,Discharge,Distribution
Input ingredients
raw wafer sheets,moisture,air
Output ingredients
conditioned wafer sheets,chocolate-coated wafers,moulded wafers
Market info
Hebenstreit is known for specializing in the manufacture of industrial equipment for wafer production, offering advanced technology and customization for the food industry, with a reputation for high-quality and reliable machinery.

Technical Specifications


Conditioning Time
20 to 30 minutes
Added Moisture
Between 2.5 and 4.5%
Wafer Sheet Capacity
Up to 1,646
Air Conduction System
Uniform Distribution of Moisture
Automation
Fully automatic regulation
Construction Material
High-grade Stainless Steel
Process Speed
Up to 65 wafer sheets per minute
Moisture Distribution
Air Conditioning
Temperature Control
High-precision control of preselected values
Online Measurement
Optional

Operating Characteristics


Moisture Control
2.5–4.5%
Conditioning Time
20-30 minutes
Sheet Capacity
Up to 1,646 wafer sheets
Automation Level
Fully Automatic
Air Conduction System
Uniform distribution
Modular Design
Expandable capacity
Moisture Equilibrium
Prevents splitting/cracking

Material Compatibility


Cleanability
Stainless steel construction for easy cleaning
Corrosion Resistance
High-grade stainless steel
Moisture Compatibility
Controlled moisture addition between 2.5 and 4.5%
Thermal Stability
Insulating enclosure with polyurethane hard foam

Physical Characteristics


Stainless Steel Design
High-grade stainless steel
Insulating Enclosure
Polyurethane hard foam filling
Viewing Windows
Yes,for monitoring production
Swing Doors
Yes,for easy access and cleaning
Air Conduction System
Uniform distribution of moisture
Modular design
Allows for capacity increase

Custom Options


Material
Stainless Steel
Access Features
Swing Doors with Viewing Windows
