Volumetric gravity filler for large Pet bottles

Optimize your production line with a high-speed volumetric gravity filler, designed for precise and hygienic operations in bottling large PET containers with non-carbonated liquids.

Fills and Caps Large PET Bottles

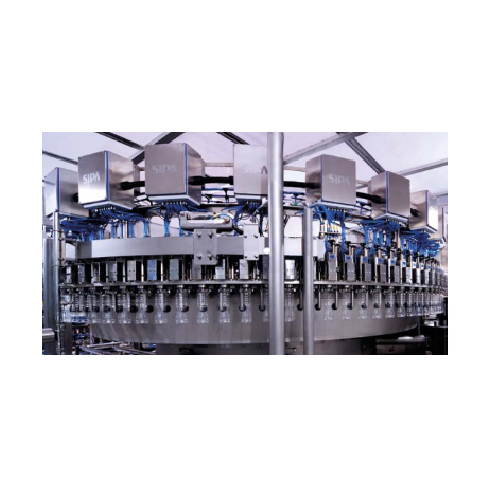

The BIGFILL from SIPA is an electronic rotary volumetric filler designed for seamlessly filling and capping large PET bottles with still liquids like non-carbonated mineral water and edible oils. Featuring a sophisticated valve with a magnetic flow meter, it ensures precise fill volumes without direct contact between the valve and the bottle, minimizing contamination risks. With a throughput of up to 18,000 bottles per hour for 5-liter containers, the BIGFILL uses dual-speed filling to handle a variety of product viscosities, while maintaining efficiency. Fabricated from AISI 316L stainless steel, it resists corrosion and is suitable for rigorous use in food and beverage applications. Enhanced by a controlled contamination cabin and optional microbiological isolators, it provides top-notch hygiene standards. Its automation capabilities include an intuitive operator panel and CIP and SIP readiness, simplifying maintenance. Configurable to meet specific production needs, the BIGFILL supports high-speed operations in beverage, food, and water treatment industries.

Benefits

  • Enhances production efficiency with high-speed filling for up to 18,000 bottles per hour.
  • Ensures product integrity by avoiding contact between the filler valve and bottle.
  • Simplifies maintenance with automatically engaged dummy bottles and easy access components.
  • Increases hygiene with controlled contamination cabins and microbiological isolators.
  • Adapts to various product viscosities, offering flexibility in processing diverse liquid types.

General


Applications
Non-carbonated mineral water,Edible oil,Demineralized water
End products
Olive oil,Sunflower oil,Spring water,Table water,Distilled water,Cooking oil,Canola oil
Steps before
Preform production,Bottle blowing,Container inspection,Cap sterilization
Steps after
Capping,Labeling,Packing,Palletizing
Input ingredients
non-carbonated mineral water,demineralized water,edible oil
Output ingredients
large size PET bottles,up to 20 litres
Market info

Technical Specifications


Filling method
Volumetric gravity
Filling speed
2,800 to 18,000 bottles/hour
Filling volume
Up to 20 litres
Material
AISI 316 stainless steel
Valve type
Electronic filling valve with magnetic flow meter
Container type
PET bottles
Automation
Industrial PC controlled
Filling accuracy
High precision (exact value not provided)
CIP/SIP compatibility
Up to 100 °C
Valve material
AISI 316L steel

Operating Characteristics


Working mechanism
Electronic volumetric gravity filler
Integrated steps
Automatic dummy bottle engagement
Batch vs. continuous operation
Inline Continuous
Changeover time
Quick selection from operator panel
CIP/SIP
CIP up to 100°C
Automation level
Industrial PC controlled

Material Compatibility


AISI 316L Steel
All parts in contact with the product
Corrosion Resistance
High,suitable for low conductivity and viscous products
Cleanability
Extreme sanitizability with automatic sanitation features
Resistance to Low Conductivity
Designed for products like demineralized water and edible oil

Product type Characteristics


Product type
Non-carbonated liquids
Filling method
Volumetric gravity filling
Container type
PET bottles

Physical Characteristics


Machine footprint
Not specified
Tank shape and size
External tank for large formats (up to 20 litres)
Valve material
AISI 316L stainless steel
Feed/discharge method
Mechanical gripper holds bottle during filling
Control panel type
Operator panel for format selection
Nozzle design
Wide pass-through sections to minimize turbulence
Container size
Up to 20 L PET bottles

Custom Options


Control panel type
Industrial PC
Integration possibilities
Microbiological isolators
Valve material
AISI 316L stainless steel
Filling valve type
No contact electronic valve
CIP/SIP capability
Up to 100 °C
