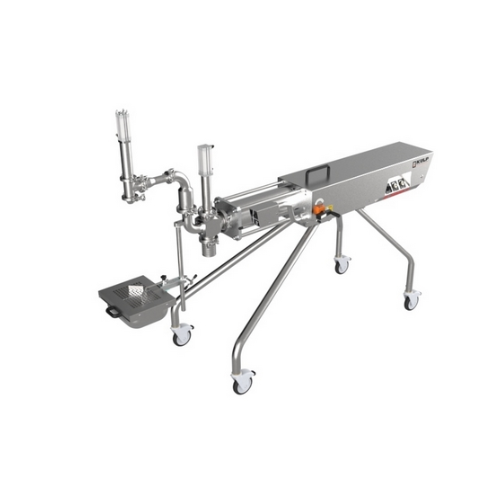

Volumetric filler for liquid and viscous products
Achieve precise and adaptable filling for a wide variety of liquid and viscous products, ensuring consistent product quality and reducing waste with this robust volumetric filling solution.
Fills and Dispenses Liquids and Viscous Products
The D5000 Filling Machine from Kulp Makina is a versatile solution for semi-automatic volumetric filling of liquids and viscous products. Utilizing a FESTO pneumatic system, it ensures precise control and consistency, efficiently addressing production needs across industries such as food, beverage, chemical, cosmetics, and pharmaceuticals. Boasting a capacity of 420 packages per hour, it accommodates a range of filling sizes from 500 ml to 5000 ml, with optional cylinders for more flexibility. Crafted from 316L stainless steel and adaptable for products requiring corrosion resistance, it is designed for seamless integration into existing production lines. Featuring easy-clean nozzles and a tool-free disassembly process, maintenance is simplified, minimizing downtime. The machine’s modular design supports additional customization options, including spout pouch filling mechanisms and special nozzles for different product types, ensuring optimal adaptability to diverse operational requirements.
Benefits
- Ensures precision filling, enhancing production quality and reducing waste.
- Offers flexible capability for varied product viscosities, optimizing operational efficiency.
- Simplifies maintenance with tool-free disassembly, minimizing production interruptions.
- Supports expansion with customizable options for diverse packaging needs.
- Enhances safety and compliance using all-compressed air operation, reducing explosion risks.
- Applications
- Beverages,Sauces,Detergents,Liquid soaps,Shampoos,Oils,Vinegars,Foods,Concentrates,Syrups,Paints,Fertilizers,Juices
- End products
- Hand soap,Olive oil,Barbecue sauce,Orange juice,Acrylic paint,Maple syrup,Dishwashing liquid,Nut butter,Balsamic vinegar,Apple cider,Liquid fertilizer,Tomato paste,Herbal shampoo
- Steps before
- Ingredient preparation,Storage tank loading
- Steps after
- Quality control,Sealing,Labeling,Packaging
- Input ingredients
- Honey,Tahina,Molasses,Oils,Syrup,Fruit Juice,Fruit Concentrates,Vinegar,Ketchup,Milk,Paint,Liquid Medicine,Liquid Fertiliser,Motor Oil,Shampoo,Liquid Soap,Chocolate Cream
- Output ingredients
- Filled packages,Doypack type packages
- Market info
- Number of Cylinders
- 1
- Filling Range
- Min. 500 ml - Max. 5000 ml
- Optional Cylinder Range
- Min. 145 ml - Max. 14500 ml
- Capacity
- 420 Packages/Hour
- Filling Accuracy
- ± %1
- Operating Temperature
- +5 ºC to +85 ºC with standard sealings
- Pneumatic System
- FESTO Pneumatic System
- Material Contact
- 316 L Stainless Steel
- Other Materials
- 304 L Stainless Steel and Anodized Aluminium
- Cleaning Method
- Easy-cleaning with dismantlable parts
- Automation
- Volumetric Filling Machine
- Mobility
- Stainless Steel Frame with Castors
- Working mechanism
- Volumetric filling with FESTO pneumatic system
- Primal system type
- Direct prime from storage tank
- Cleaning method
- Tool-free dismantling for easy cleaning
- Lighting
- Brightness adjustable
- Height adjustment
- Height-adjustable platform
- Mobility
- Mounted on a stainless steel frame with castors
- Automation level
- Manual
- Filling range
- 500 ml to 5000 ml (optional cylinder
- Capacity
- 420 packages/hour
- Corrosive resistance (e.g. acids)
- 316L Stainless Steel,304L Stainless Steel,Anodized Aluminium
- Machine footprint
- Tabletop version available
- Body material
- 316 L stainless steel / 304 L stainless steel / Anodized aluminium
- Mobility
- Stainless steel frame with castors
- Filling range
- 500 ml - 5000 ml (standard),145 ml - 14500 ml (optional)
- Nozzle design
- Interchangeable,drip prevention
- Platform
- Height adjustable platform for packages
- Pneumatic system
- FESTO (oil-free)
- Sealing materials
- Teflon,Viton,Polyethylene
- Cleaning Ease
- Easy-disassemble design
- Adjustable filling range
- 500 ml - 5000 ml
- Adjustable filling platform
- Height adjustable
- Interchangeable nozzles
- For liquid,viscous,or particulated products
- Optional filling cylinder
- 145 ml - 14500 ml
- Material compatibility options
- Teflon,Viton,or Polyethylene sealings
- Easy-cleaning design
- Nozzle,valve,and piston easily dismantled
