Vibration drying system for pellets

Achieve precise moisture control for pellets with high filler content, enhancing final product quality by minimizing fines and optimizing downstream processing.

Dries and Dewaters Polymer Pellets Effectively

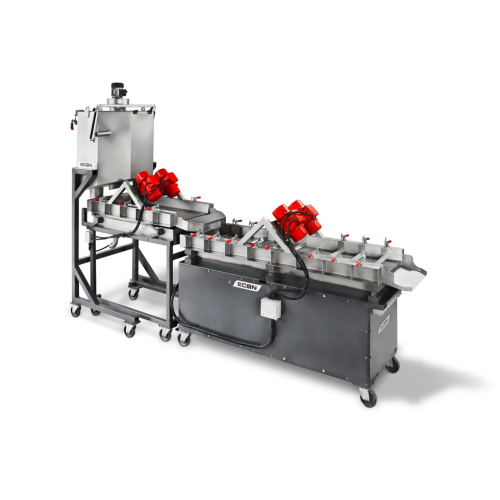

The Vibration Drying System EVS from ECON GmbH is engineered to efficiently dry and dewater polymer pellets with high filler content, such as glass fibers and mineral fillers. This system employs a multi-stage design with vibrating screens for continuous processing. Initially, pellets are separated from process water through a dehydration phase, which utilizes an automatic band filter for water recirculation. This is followed by warm air circulation using electrical damping registers, ensuring thorough drying. Suitable for processing glass fiber reinforced plastics, mineral-filled compounds, and moisture-sensitive materials like PET and nylon, it handles throughputs up to 3,000 kg/hr. The system integrates seamlessly into existing production lines, enhancing energy efficiency by reducing moisture content to as low as 0.05% and minimizing mechanical wear. Crafted for durability, it is ideal for polymer manufacturers, plastic compounders, and composite material producers seeking robust drying solutions.

Benefits

  • Achieves residual humidity as low as 0.05%, maintaining product quality and consistency.
  • Reduces maintenance costs through gentle drying that minimizes wear and tear.
  • Lowers energy consumption with efficient air circulation and water recirculation systems.
  • Adaptable to various production lines with customizable throughput up to 3,000 kg/hr.
  • Enhances operational efficiency with continuous processing and automated water management.

General


Applications
Hydroscopic materials,Glass fibers,Plastic pellets,Mineral fillers
End products

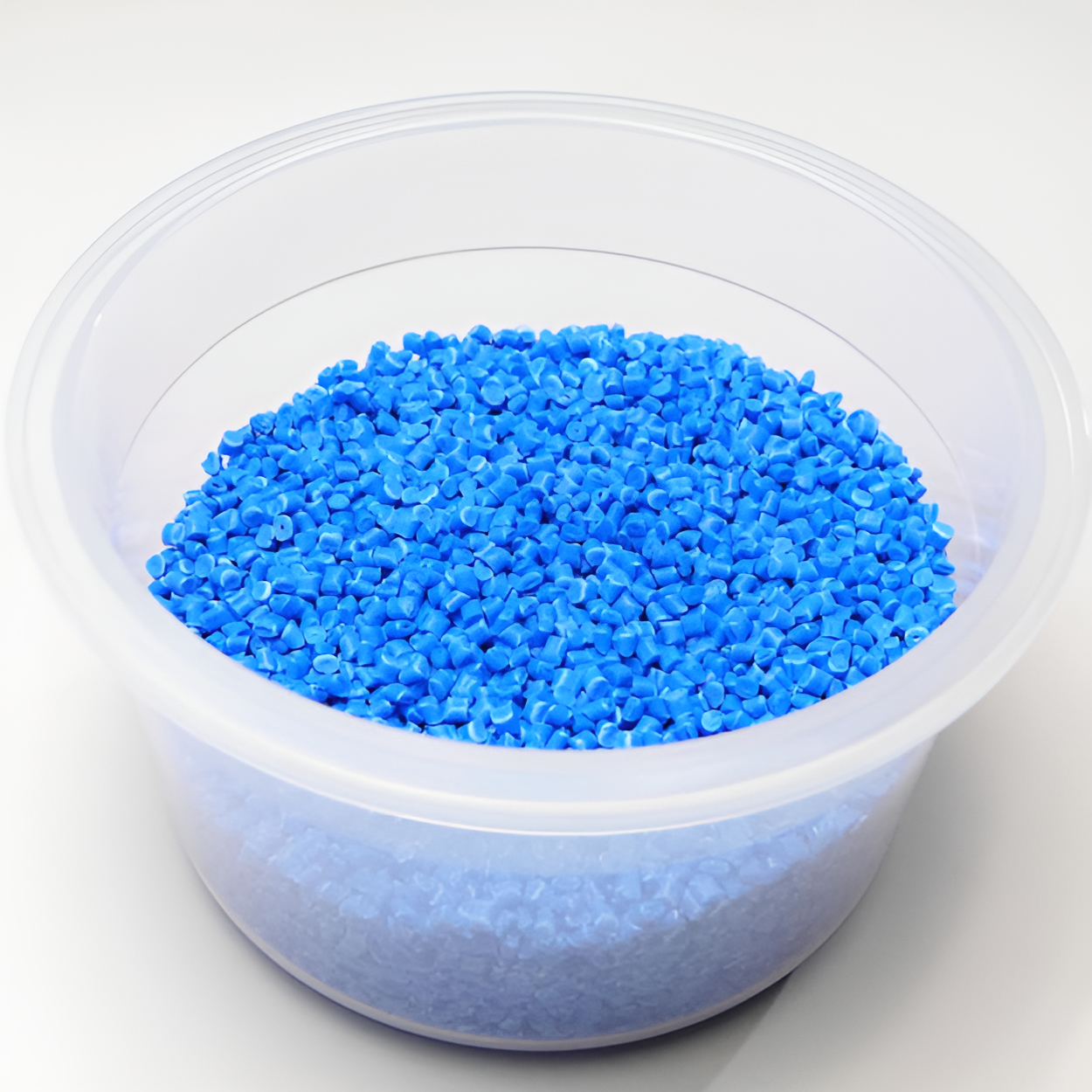

Pet pellets,Nylon pellets,Glass fiber reinforced plastics,Mineral-filled polymer compounds,Moisture-sensitive polymer beads,Polypropylene pellets
Steps before
Dewatering,Separation
Steps after
Further Drying,Packing
Input ingredients
pellets,process water,materials with high filler content,materials with glass fibers,materials with mineral fillers,highly hygroscopic materials
Output ingredients
dried pellets,residual humidity as low as 0.05%
Market info

Technical Specifications


Residual Humidity
As low as 0.05%
Throughput
Up to 3,000 kg/hr
Screen Configuration
Two or three sequentially arranged vibrating screens
Drying Stages
One to three stages
Energy Source
Electrical damping registers
Material Suitability
High filler content (e.g.,glass fibers,mineral fillers)

Operating Characteristics


Working mechanism
Vibration drying
Integrated steps
Dewatering,further drying
Batch vs. continuous operation
Continuous
Residency time
Based on throughput
Air incorporation control
Electrical damping registers

Material Compatibility


Abrasion resistance
High
Material compatibility with fillers
Glass fibers,mineral fillers
Density/particle size
Pellets
Varies with material
Corrosive resistance
Standard

Physical Characteristics


Number of vibrating screens
Two or three
Screens arrangement
Sequentially arranged
Screen type
Vibrating
Dehydrator inclusion
Yes
Band filter type
Automatic
Warm air generation
Electrical damping registers
Additional stage customization
Available for hydroscopic materials
Capacity
Up to 3,000 kg/hr

Custom Options


Vibrating Screen Stages
Two or three sequential stages
Air Stream Temperature Control
Electrical damping registers
Additional Stage for Hygroscopic Materials
Available
