Vertical peeler centrifuge for chemical industry

Maximize throughput in continuous chemical processes with a versatile vertical peeler centrifuge that ensures low residual moisture and adaptable handling of diverse product consistencies, from slurries to solid cakes.

Efficiently Separates and Processes Chemical Products

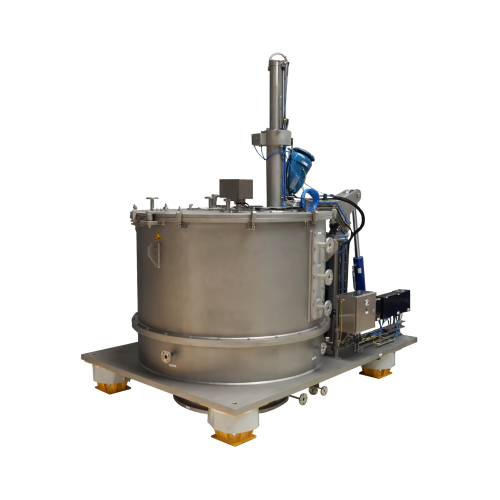

The Vertical Peeler Centrifuge Chemical, from HEINKEL Drying & Separation Group, is engineered for rigorous chemical processing environments. Its vertical design integrates seamlessly into continuous production lines, offering high throughput for filtering, sedimenting, and discharging solids. With basket diameters ranging from 800 to 1600 mm, it addresses separation challenges in products like pesticides, pigments, and PVC powders efficiently and reliably. The centrifuge operates with high centrifugal forces, ensuring low residual moisture levels in end-products. Automation is enhanced with hydraulically actuated dischargers, customizable for full-surface or swiveling operations. Materials are available in options compatible with harsh chemical processes, supporting long-term durability and corrosion resistance. Designed to be energy efficient, it reduces operational costs without compromising performance.

Benefits

  • Maximizes throughput with uninterrupted operation and high-speed separation.
  • Ensures low residual moisture, enhancing product quality and reducing drying times.
  • Adapts to diverse chemical processes with flexible basket configurations.
  • Minimizes maintenance with robust, corrosion-resistant material options.
  • Reduces operational costs through efficient energy consumption.

General


Applications
Chemical,Fine chemicals
End products
Detergent powders,Dye intermediates,Catalyst carriers,Pvc powders,Pesticide formulations,Resin pellets,Pigment powders,Polymer additives,Antibiotic intermediates,Flavor compounds
Steps before
Mixing,Suspension Preparation,Emulsification
Steps after
Drying,Packing,Quality Control
Input ingredients
chemical suspensions,fine chemical suspensions,crystalline products in suspension
Output ingredients
separated crystalline products,solids,filtered material
Market info
Heinkel is known for manufacturing high-quality industrial equipment, specializing in centrifuges, dryers, and other engineered-to-order machinery for the chemical, pharmaceutical, and environmental sectors, with a reputation for innovation and reliability.

Technical Specifications


Basket diameter
800–1600 mm
Basket depth
630–1000 mm
Filter area
1.5–5.0 m²
Nominal volume
160–1025 L
Max. Filling
200–1280 kg
Max. Speed
750–1500 1/min
Centrifugal force
503–805 x g
Operation type
Uninterrupted
Separation method
Filtration / Sedimentation
Residual moisture levels
Low
Discharge method
Hydraulically actuated discharger
Discharger type
Full surface / Swivelling / Lowering

Operating Characteristics


Working mechanism
Filtration or sedimentation
Changeover time
Adaptable to changing products
Batch vs. continuous operation
Uninterrupted operation
Discharge method
Hydraulic discharger
Automation level
Hydraulic/automated discharging

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
2520-3225 mm length,1430-2350 mm width,1400-3195 mm height
Basket diameter
800-1600 mm
Basket depth
630-1000 mm
Basket type
Sieve basket for filtration,Sedimentation basket
Discharge method
Hydraulically actuated discharger

Custom Options


Basket diameter
800 mm,1000 mm,1250 mm,1600 mm
Basket type
Sieve basket / Sedimentation basket
Discharge method
Hydraulically actuated discharger / Full surface discharger / Swivelling/lowering discharger
