Vacuum tray dryer for pharmaceutical applications

Optimize drying of heat-sensitive compounds while maintaining product integrity with a vacuum tray dryer, ideal for precise moisture control in pharmaceutical production processes.

Dries and Contains Sensitive Pharmaceutical Compounds

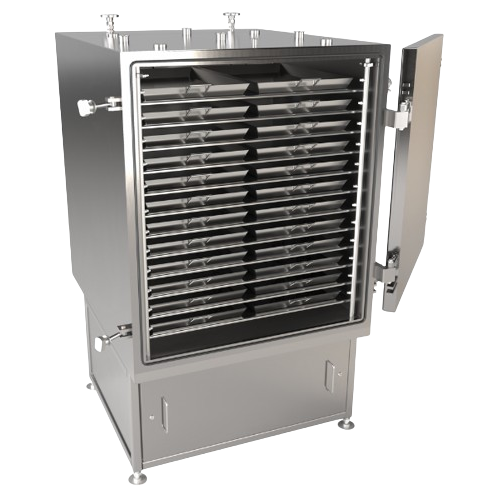

The CakeStand™ Vacuum Tray Dryer from Powder Systems Limited (PSL) is designed to address the critical drying needs of the pharmaceutical and chemical industries. This equipment features a fully sealed vacuum chamber and direct heating shelves, ensuring uniform drying with validated heating precision of +/-1°C. It is particularly suited for drying delicate pharmaceuticals like lyophilized drugs, chemotherapeutic agents, and hormone drugs, where sensitive handling is paramount.

This vacuum tray dryer is applicable across various environments, from clean rooms to containment isolators, and supports batch operations while allowing for manual product loading and unloading. Its capacity ranges with model configurations, offering scalable solutions from 0.18 to 13.0 m² of usable shelf area.

Engineered for cGMP compliance, the system boasts easy-to-clean metallic surfaces, strategically designed to minimize product traps. PSL’s automation platform supports pre-designed process recipes, enhancing flexibility and speed in production, with compliance to GAMP5 and 21 CFR Part 11 standards, ensuring robust data recording and electronic signature protocols.

Additionally, the CakeStand™ can integrate seamlessly into existing containment setups, whether as stand-alone equipment or wall-integrated within isolators, optimizing space and adhering to safety standards for handling potent APIs and HPAPIs. Its design consideration for operator ease and effective containment measures underlines PSL’s commitment to combining performance with safety.

Benefits

  • Ensures consistent product quality with precise temperature control across shelves.
  • Enhances operational safety by integrating with containment systems for handling potent materials.
  • Reduces cleaning time with easy-to-clean surfaces and minimized product traps.
  • Increases production flexibility through pre-designed and customizable process recipes.
  • Complies with stringent industry standards, supporting smooth audits and regulatory approvals.

General


Applications
Active pharmaceutical ingredients (api),Highly potent active pharmaceutical ingredients (hpapi),Fine chemicals,Pharmaceuticals
End products
Custom specialty chemicals,Controlled-release pharmaceuticals,Antivirals,Lyophilized drugs,Antibiotics,Peptide compounds,Enzyme preparations,Chemotherapeutic agents,Laboratory reagents,Cytostatics,Inhalable medications,Hormone drugs,Vaccine components
Steps before
Filtration,Transfer to Tray
Steps after
Loading and Unloading,Containment Handling,Packing
Input ingredients
delicate products,fragile products,pharmaceutical ingredients,API,HPAPI,product trays
Output ingredients
dried delicate products,dried fragile products,dried pharmaceutical ingredients
Market info
PSL (Powder Systems Limited) is known for designing and manufacturing advanced containment and process solutions for the pharmaceutical, biopharmaceutical, and chemical industries. They specialize in high-quality filtration, drying, and high containment systems.

Technical Specifications


Heating uniformity
±1°C across shelves
Chamber Volume
85 L to 2150 L
Shelf Usable Area
0.18 to 13.0 m²
Shelf Configurations
6 to 12 shelves
Compliance
cGMP designed
Automation
PSL Automation Platform
Data Recording
Software and Automation package
Integration
Available with downflow booths or isolators

Operating Characteristics


Working mechanism
Vacuum chamber with direct heating shelves
Batch vs. continuous operation
Batch
Integrated steps
Loading,drying,unloading
Compatible with containment measures
Automation level
PLC/SCADA compatible
CIP/SIP
cGMP cleaning-validation design
Energy efficiency
Uniform heating of +/-1°C across shelves

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine Footprint
Subject to specific model size
Chamber Volume
85 L - 2150 L
Usable Shelf Area
0.18 m² - 13.0 m²
Shelf and Tray Configurations
3 – 12 shelves
Integration Options
Downflow Booth / PSL GloveBox
Shelf Type
Direct Heating Shelves
Door Type
Front Flat Metallic Door
Utility Connection Points
Through-wall configuration
Shelf Heating Accuracy
±1°C
Suspended Shelves
To avoid product traps
Material of Construction
All metallic internal parts
Surface Finish
Controlled for easy cleaning
Edge and Corner Radiuses
Designed for easy cleaning

Custom Options


Control panel type
PSL Automation Platform
